McCulloch MT700 - Parts List

E22

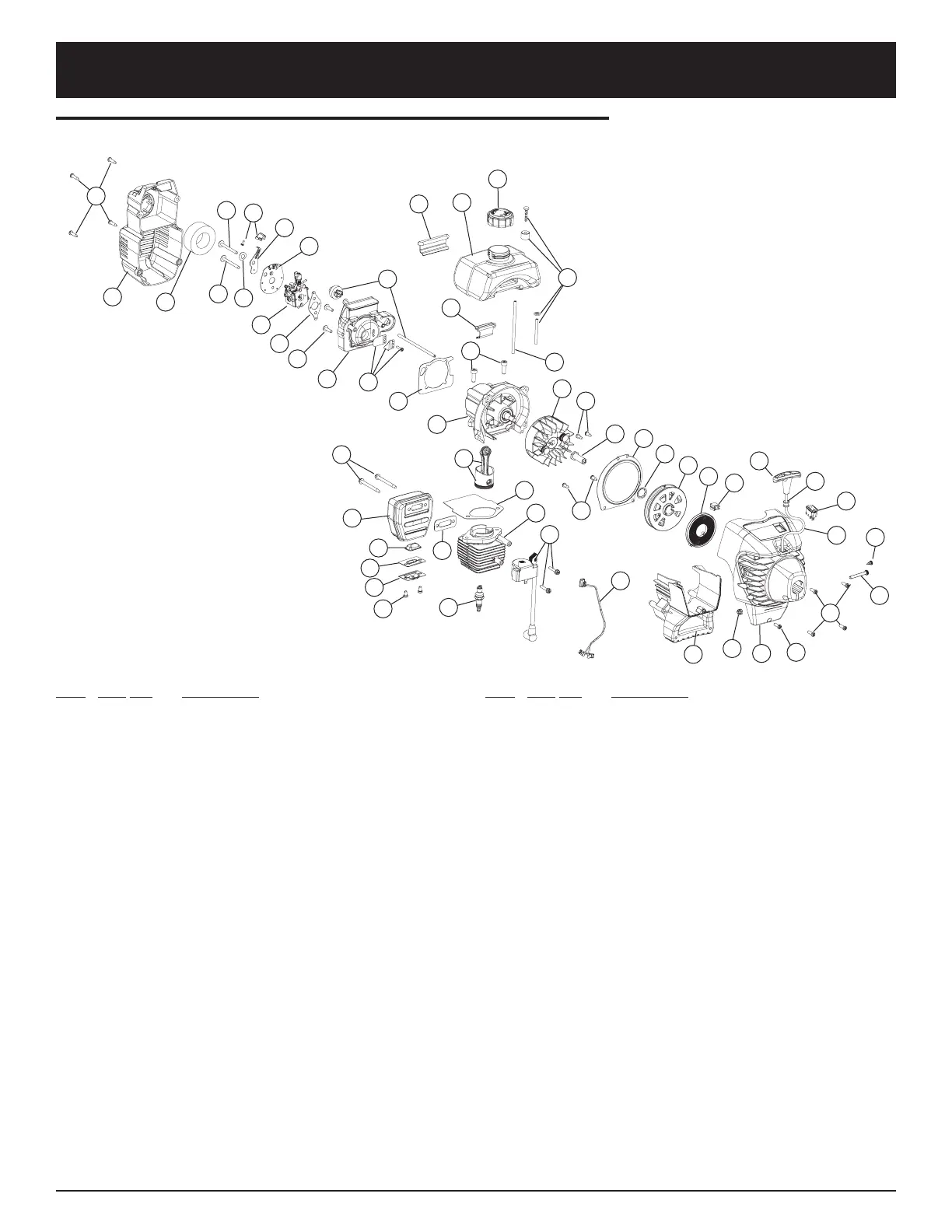

PARTS LIST
ENGINE PARTS - MT700
2-CYCLE GAS TRIMMER
Item Part No. Description
29 753-04824 Eyelet Retainer
30 791-181079 Pull Handle
31 791-611061 Rope Guide
32 791-613103 Rope
33 753-04241 Switch Assembly (includes 41)
34 791-182519 Anti-Rotation Screw
35 753-04003 Clamping Screw
36 791-181862 Housing Screw
37 791-181345 Cover Screw
38 791-180217 Clamping Nut
39 753-04825 Starter Housing Assembly (includes 23, 25-38)
40 753-04702 Shroud Extension and Stand
41 753-04242 Wire Lead
42 753-04324 Module Assembly
43 791-610311 Spark Plug
44 753-04618 Muffler Assembly (includes 45-50)
45 753-04619 Exhaust Gasket
46 753-04689 Spark Arrestor
47 753-04690 Exhaust Hood Diverter
48 753*-04691 Exhaust Hood
49 753-04315 Screw
50 753-04620 Muffler Mounting Bolt Assembly
51 753-04814 Cylinder Assembly (includes 52 & 53)
52 753-04367 Piston & Rod Assembly
53 753-04182 Cylinder Gasket
54 791-182723 Cylinder Bolt
* 753-1209 Piston Ring
* 753-04826 Short Block Assembly
(includes 15, 43, 51-54)
* not shown
Item Part No. Description
1 753-04511 Air Cleaner Cover Assembly (includes 2 & 34)
2 791-180350 Air Cleaner Filter
3 791-180351 Carburetor Mounting Screws
4 791-180226 Wavey Washer
5 791-182070 Choke Knob & Screw
6 753-04418 Choke Lever Assembly (includes 5)
7 753-04419 Choke Lever & Plate (includes 6)
8 753-04408 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-181558 Primer and Hose Assembly
12 753-1196 Carburetor Mount Assembly
(includes 10, 13 & 14)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04321 Crankcase Service Assembly (includes 10 & 23)
16 791-612134 Rear Mounting Pad
17 791-181152 Fuel Tank Assembly (includes 18 & 20)
18 791-182271 Fuel Cap Assembly
19 791-181086 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 791-182736 Flywheel Assembly
23 743-1202 Screw
24 791-610303 Square Nut Drive
25 753-04705 Pulley Retainer Assembly
26 791-181247 Palnut
27 753-04823 Recoil Pulley Assembly
28 753-04286 Recoil Spring
1
2
3
8
10
12
3
4
5
7
6
11
13
14
15
51
52
21
54
19
16
17
18
20
22
24
27
28
26
29
31
33
36
39
30
40
41
50
42
44
49
25
9
45
43
46
47
48
35
53
37
23
23
34
35
38
32
