E27

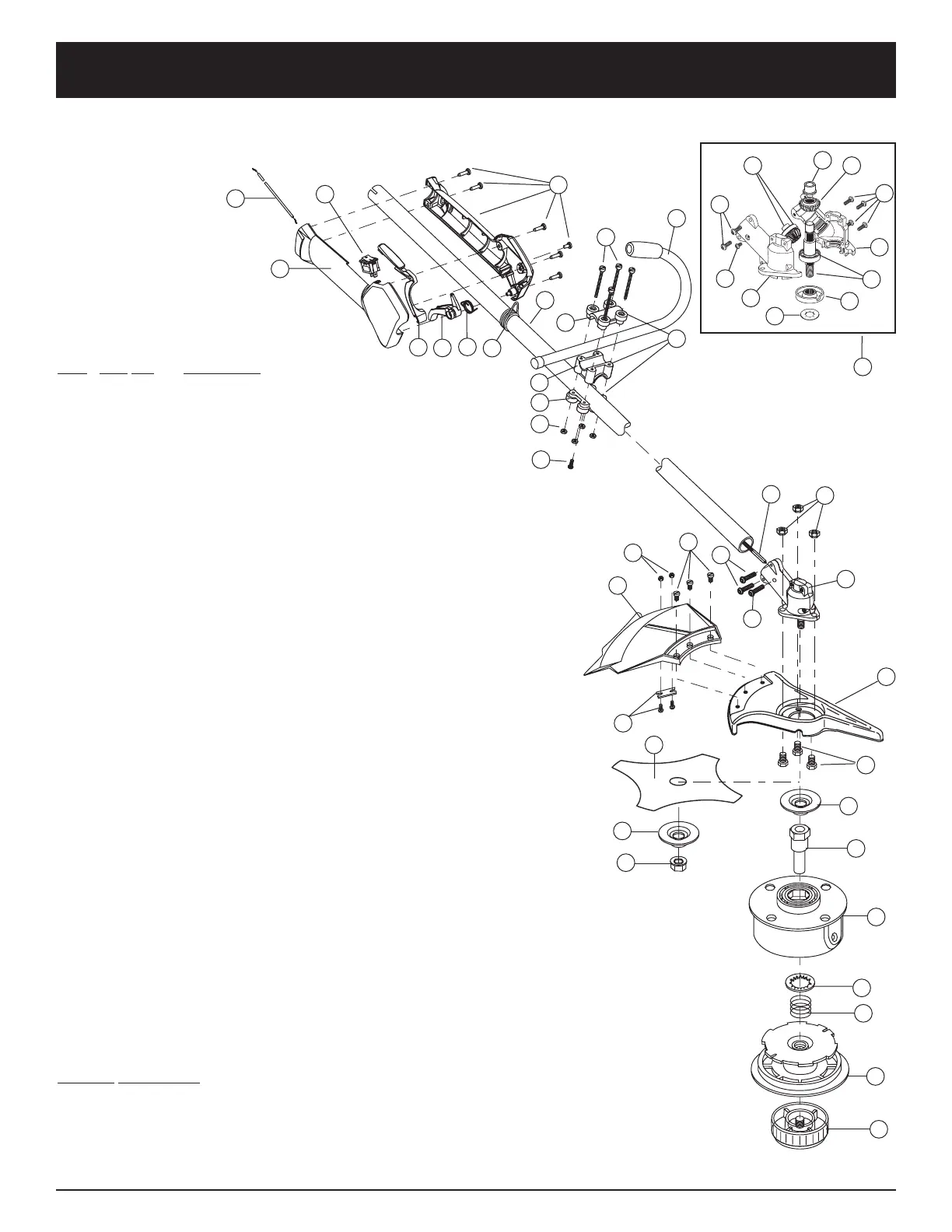

PARTS LIST
Item Part
No. Description
1 791-182801 Throttle Housing Assembly (includes 2-4)
2 791-182802 Throttle Trigger Lock-Out
3 791-101502 Throttle Trigger
4 791-182690 Throttle Trigger Spring
5 791-182405 Switch Assembly (includes 6)
6 753-04278 Throttle Cable Assembly
7 791-610327 Harness Clip
8 791-147486 Upper Drive Shaft Housing Assembly
9 791-181099 J-Handle Assembly
10 791-683295 Handle Bracket Assembly (includes 13-15 & 20)
11 791-181811 Screw
12 791-181812 Upper Handle Clamp
13 791-181813 Middle Handle Clamp
14 791-181814 Lower Handle Clamp
15 791-181815 Nut
16 791-181817 Flexible Drive Shaft
17 791-182200 Shield Mount Screw Assembly
18 791-182193 2 piece Gearbox Assembly (includes 19-29)
19 791-182195 Gearbox Mounting Hardware
20 791-145569 Anti-Rotation Screw
21 791-182191 Left Housing
22 791-182192 Right Housing
23 791-182195 Gear Box Screw
24 791-182194 Pinion Gear Assembly
25 791-182199 Output Shaft Bushing
26 791-182198 Output Shaft Gear
27 791-182197 Output Shaft Assembly (includes 25 & 26)
28 791-182196 Blade Driver
29 753-04348 Palnut
30 791-147492 Blade Shield/Shield Mount
31 791-683304 Shield Mounting Screw
32 791-683299 Shield Assembly (includes 33)
33 791-682061 Blade Assembly
34 791-147490 Retaining Washer
35 791-612483 Spool Shaft
36 791-683301 Outer Spool Assembly
37 791-612026 Retainer
38 791-610636 Spring
39 791-147495 Inner Reel
40 791-180814 Bump Head Knob Assembly
41 791-145873 4-Tooth Blade
42 791-181699 Nut
* 791-180014 Blade Retaining Kit (includes 34 & 42)
* 791-613226 Locking Rod Tool
* 791-682075 Shoulder Harness
Optional
Accessories
* 791-180120 Replacement Line, 0.095 Diameter
* 791-147345 Reel and Line Assembly
* 791-147498 Bump Head Assembly (includes 35-40)
* Items Not Shown
