McCulloch MT780 - Parts List

E26
PARTS LIST
2
3
6
8
10
4
5
9
12
11
13
53
52
18
54
19
14
15
16
17
33
34
35
20
26
24
25
30
32
39
41
42
51
43
49
50
7
40
37
23
29
36
44
27
1
38
Item Part No. Description
1 753-04810 Air Cleaner Cover Assembly (includes 2 & 38)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
5 753-04419 Choke Plate
5 753-04227 Choke Lever
6 791-181086 Fuel Return Line
7 753-04331 Carburetor Assembly (includes 8 & 17)
8 791-610675 Carburetor Gasket
9 791-181860 Carb Mount Screw
10 753-1196 Carb Mount Assembly (includes 9, 11 & 13)
11 791-684451 Reed Assembly
12 791-683974B Primer and Hose Assembly
13 753-1208 Carburetor Mount Gasket
14 791-612134 Rear Mounting Pad
15 753-04311 Fuel Tank Assembly (includes 6, 16 & 17)
16 791-182612 Fuel Cap Assembly
17 753-04233 Fuel Line Assembly
18 791-145308 Front Mounting Pad
19 753-04470 Crank Case Service Assembly (includes 9)
20 791-182736 Flywheel Assembly
21 791-181065 Spacer
22 753-1202 Pressure Plate Screw
23 753-04705 Pressure Plate
24 753-04288 Pulley Retainer
25 753-04823 Recoil Pulley Assembly
26 753-04286 Recoil Spring
27 753-04824 Rope Guide Retainer
28 791-611061 Rope Guide
29 791-613103 Rope
30 791-181079 Pull Handle
31 791-181862 Housing Screw
32 753-04905 Starter Housing Assembly (includes 22-31 & 38)
Item Part No. Description
33 791-182396 Clutch Washer
34 791-182369 Clutch Rotor Assembly
35 791-153592 Clutch Drum Assembly
36 753-04889 Clutch Cover Assembly (includes 37 & 38)
37 791-182519 Anti-Rotation Screw
38 791-181345 Cover Screw
39 753-04702 Shroud Extension & Stand (includes 38)
40 791-182798 Wire Leads and Sleeve
41 791-611063 Ground Tab
42 753-04337 Module Assembly
43 791-610311B Spark Plug
44 753-04618 Muffler Assembly (includes 45-50)
45 753-04689 Spark Arrestor Screen
46 753-04690 Spark Arrestor Plate
47 753-04691 Spark Arrestor Hood
48 753-04315 Spark Arrestor Screw
49 753-04619 Exhaust Gasket
50 753-04620 Muffler Mounting Bolt Assembly
51 753-04814 Cylinder Assembly (includes 53 & 54)
52 753-04182 Cylinder Gasket
53 753-04367 Piston and Rod Assembly
54 753-04361 Cylinder Bolt
* 753-1209 Piston Ring Set
* 753-04822 Short Block Assembly (includes 9, 19, 43, 51-54)
* 791-181599 Clutch Springs (Qty. 2)
* Items Not Shown
45
46
47
48
22
28
31
38
38
21

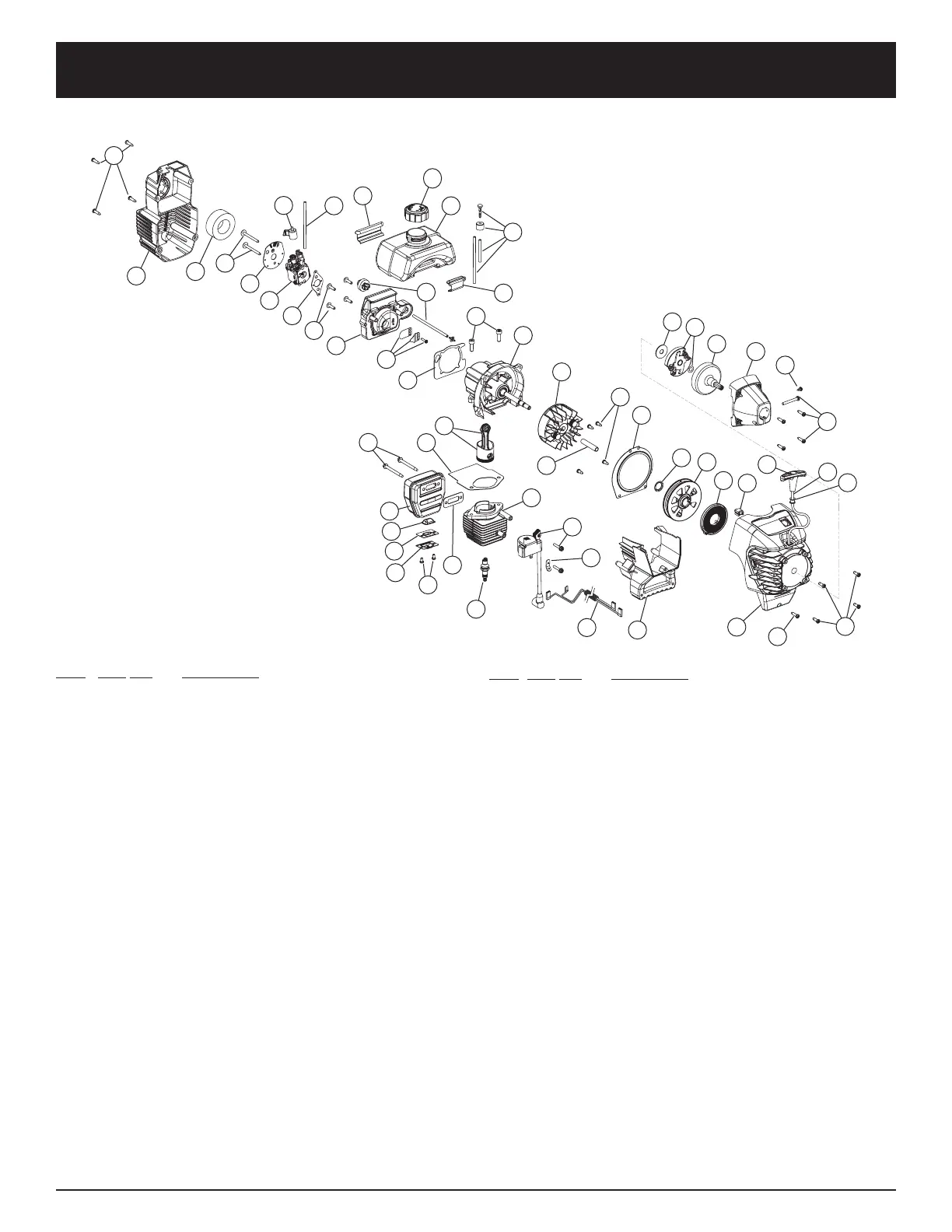

ENGINE PARTS - MT780
2-CYCLE GAS TRIMMER / BRUSHCUTTER
