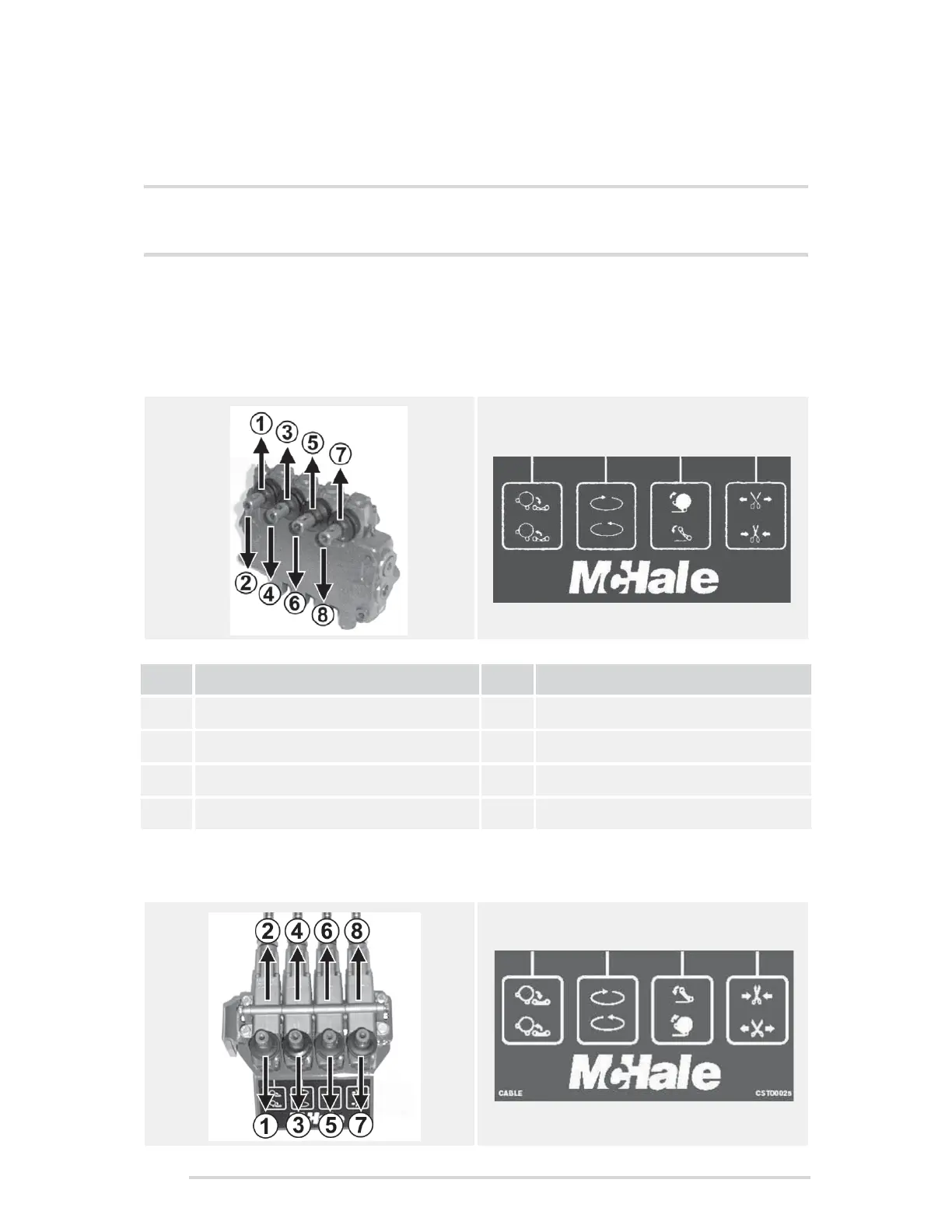

Manual Controls (991 B & BC)
The manual controls on the 991 B & BC consist of a four bank manually operated spool
valve, operated directly by levers i.e. Direct Control (DC) or Cable Control (CC).
7.1 Direct Control
7.2 Cable Control
No. Function No. Function
1 Lift arm up (DC) / down (CC) 2 Lift arm down (DC) / up (CC)
3 Table reverse (DC) / forward (CC) 4 Table forward (DC) / reverse (CC)
5 Table tip 6 Table lower
7 Cut & hold open 8 Cut & hold close
