MAINTENANCE
Crusader
MC-8
[..__,._cE.::::.::::-.::::-1-_4---=----_~_--=..--=..--=---=..-oA_'E
_D_e
c_em_b_e
r_,
_19_7
6_]
MANUAL
1.
Nut
2.
Cover
3.
Capscrew
4.
Sleeve
5.
Shim
6.
Axle
Center
7.
Thrust
Bearing
8.
King
Pin
9.
Retaining
Ring
10.
Expansion
Plug
11.
Bushing
_
12.
Steering
Knuckle
9 8
13.
Cotter
Pin
14.
Nut
15.
Nut
16.
Dus1
Cover
17.
Clamp
18.
Body
19.
Bolt
20.
Bearing
21.
Stud
22.
Spring
Seat
23.
Grease
Retainer
24.
Spring
25.
Retaining Plug
26.
Retaining Ring

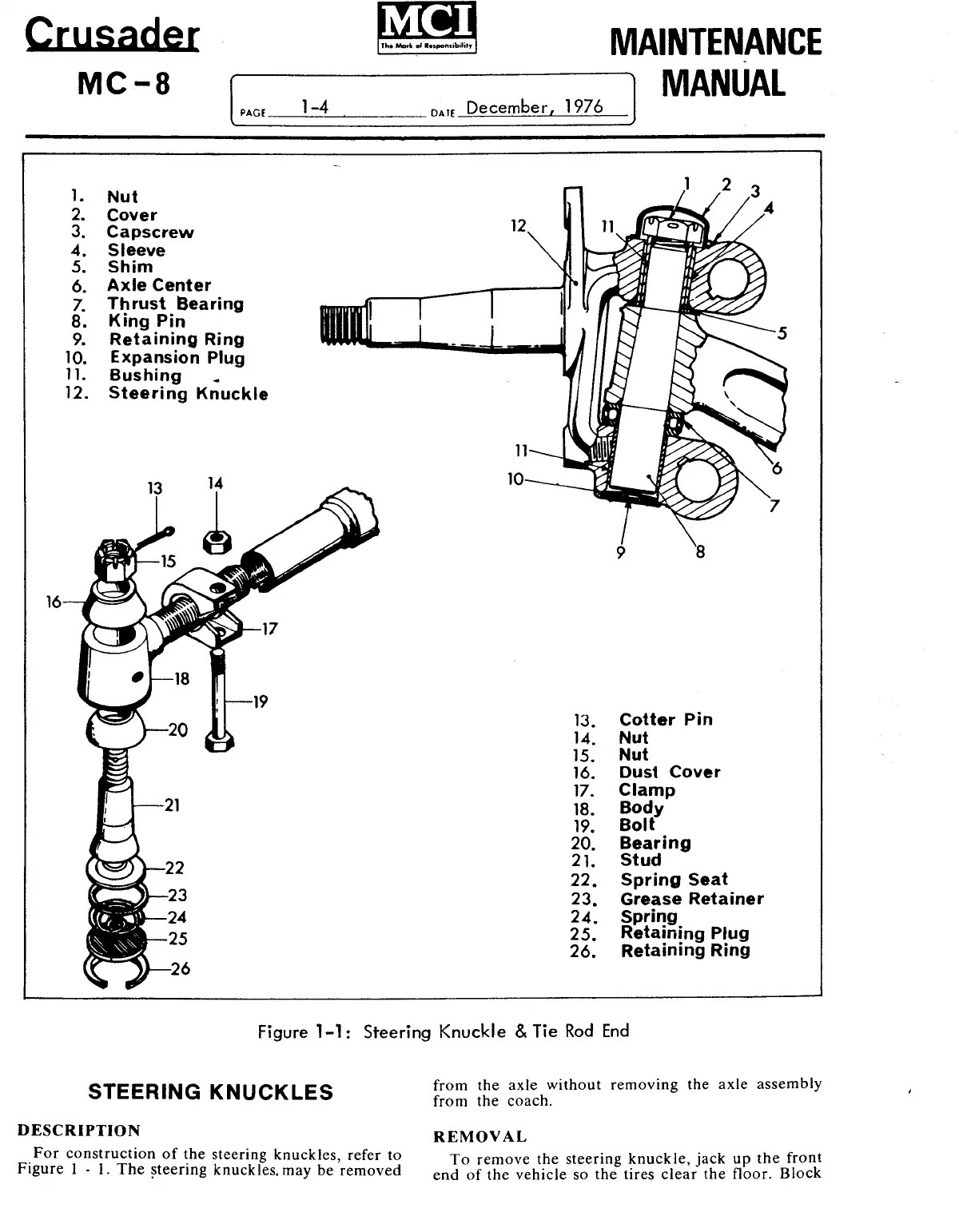

Figure
1-1:
Steering Knuckle
&
Tie
Rod
End
STEERING KNUCKLES
DESCRIPTION
For
construction
of
the
steering knuckles, refer
to
Figure
I -
I.
The
~teering knuckles. may be
removed
from
the
axle
without
removing
the
axle
assembly
from
the
coach.
REMOVAL
To
remove
the
steering
knuckle,
jack
up
the
front
end
of
the
vehicle
so
the
tires
clear
the
floor.
Block
