The C1000C, C1000P and C1000T can be placed upright
on a table or shelf, standing on their four feet. The four feet,
may be removed from the bottom of the C1000C, C1000P
and C1000T when they are custom installed as outlined be-
low. The four feet, together with the mounting screws
should be retained for possible future use if the C1000C,
C1000P and C1000T are removed
from the custom installation and
used free standing. They also can
be custom installed in a piece of
furniture or cabinet of your choice.
The required panel cutout, ventila-
tion cutout and unit dimensions are
shown.
Always provide adequate venti-
lation for the C1000C, C1000P
and C1000T. Cool operation en-
sures the longest possible operat-
ing life for any electronic instru-
ment. Do not install the units di-
rectly above a heat generating
component such as a high powered
amplifier. If all the components are
installed in a single cabinet, a quiet
running ventilation fan can be a
definite asset in maintaining all the
system components at the coolest
possible operating temperature.
A custom cabinet installation
should provide the following mini-
mum spacing dimensions for cool
operation (refer to the illustration
on the next page). Allow at least 2
inches (5.08 cm) above the top of
the C1000C, C1000P and
C1000T, 2 inches (5.08cm) below
the bottom and 1 inch (2.54 cm) on
each side of the Controller/Pream-
plifier, so that airflow is not ob-
structed. Allow 24 inches (61.0cm)
depth behind the front panel
1
for
Interconnect Cables. Allow 1 inch
(2.54 cm) in front of the mounting
panel for clearance. When the
C1000C, C1000P and C1000T are
to be installed in custom cabinets
refer to illustrations to the right.
Installation
4 -7/8"
12.38cm
17-1/16"
43.34cm

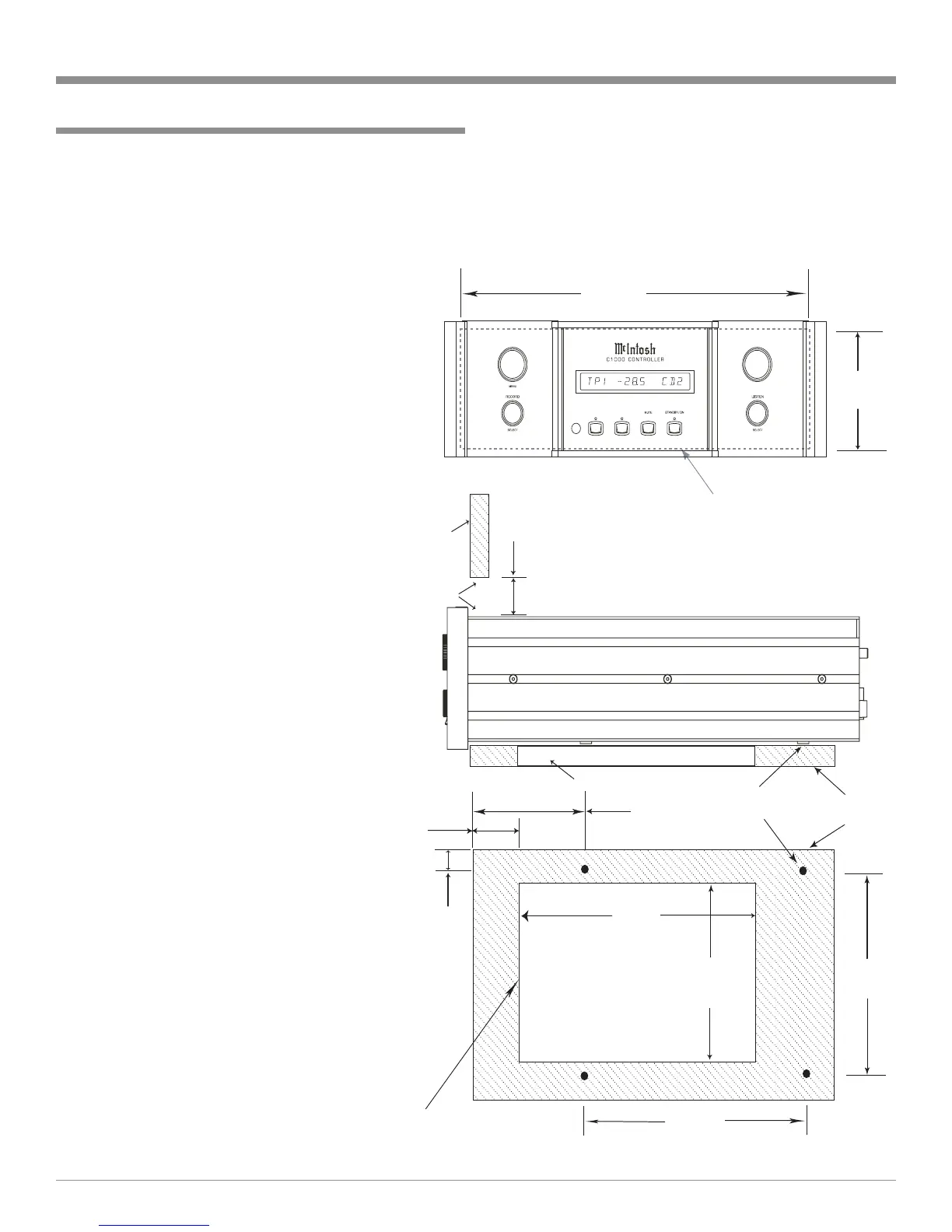

Cutout Opening for Custom Mounting
C1000C
C1000P
C1000T
Front Panel
Custom Cabinet
Cutout
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Chassis
Spacers
C1000C
C1000P
C1000T
Support Shelf in
Custom Cabinet
Notes: Center the Cutout Horizontally on the unit.
For purposes of clarity, the above
illustration is not drawn to scale.
5-1/8"
13.02cm
15/16"
2.38cm
1-1/8"
2.86cm
14-3/4"
37.47cm
14-1/4"
36.20cm
15"
38.10cm
9-1/2"
24.13cm
C1000C
C1000P
C1000T
Side View in a
Partially Open
Custom Cabinet
Cabinet
Front
Panel
2"
5.08cm
Opening for
Ventilation
Be sure to cut out a ventilation hole in the mounting shelf
according to the dimensions in the drawing.
1
Interconnect Cables are supplied with the C1000P
and C1000T Preamplifiers and connect to the
C1000C Controller.
Installation
To Next Page
