Meter Illumination
Figure 11
The Front Panel Meter Illumination of the C1000P and/or
C1000T Preamplifiers may be switched Off. Follow the
steps below:
1. Press the SETUP Push-button once to access the Setup
Controller Mode unless the C1000C is already in the
Setup Controller Mode.
2. Rotate the BALANCE (Menu) Control until the words
“METER ON” appears. Refer to figure 10.
3. Rotate the LISTEN (Select) Control until the Front
Panel Alphanumeric Display indicates “METER
OFF”. Refer to figure 11.
4. If no other adjustements are to be made at this time,
press the SETUP Push-button to exit the Setup Control-
ler Mode or proceed to the next desired Setup Control-
ler Mode for adjustment.
Volume Display
The Front Panel Alphanumeric Display of the current vol-
ume setting may be indicated either as a Percentage of the
maximum volume (0 - 100%) or in Decibels (-92.0dB to
+15.0dB). To change the display to Decibels follow the
steps below:
1. Press the SETUP Push-button once to access the Setup
Controller Mode unless the C1000C is already in the
Setup Controller Mode.
2. Rotate the BALANCE (Menu) Control until the words
“VOL PERCENT” appears. Refer to figure 12.
3. Rotate the LISTEN (Select) Control until the Front
Panel Alphanumeric Display indicates “VOL DECI-
BEL”. Refer to figure 13.
4. If no other adjustments are to be made at this time,
press the SETUP Push-button to exit the Setup Control-
ler Mode or proceed to the next desired Setup Control-
ler Mode for adjustment.
Figure 13
The Rear Panel Trigger A Jack can provide either a 5 or 12
Volt Output when activated, with 5 Volts as the default.
McIntosh Components with Power Control utilize 5 Volts;
non-McIntosh components when connected to the C1000C
might required a higher voltage to switch them On or Off.
To change the output voltage to 12 volts follow the steps
below:
1. Press the SETUP Push-button once to access the Setup
Controller Mode unless the C1000C is already in the
Setup Controller Mode.
2. Rotate the BALANCE (Menu) Control until the words
“TRIGA LVL 5V” appears. Refer to figure 14.
3. Rotate the LISTEN (Select) Control until the Front
Panel Alphanumeric Display indicates “TRIGA LVL
12V”. Refer to figure 15.
Trigger A Voltage (Power Control)
Figure 15
Figure 10
Figure 14
Figure 12
Remote Control
The C1000 Preamplifier default setting for remote control
operation is for the supplied McIntosh Remote Controls
(HR061 and HR1000). The setting may be changed to allow
the C1000 to work with the legacy HR054 Remote Control
by performing the following steps:
1. Press the SETUP Push-button once to access the Setup
Controller Mode unless the C1000C is already in the
Setup Controller Mode.
2. Rotate the BALANCE (Menu) Control until the words
“REMOTE HR061” appears. Refer to figure 9A.
3. Rotate the LISTEN (Select) Control counterclockwise
until the Front Panel Alphanumeric Display indicates
REMOTE HR054. Refer to figure 9B.
4. If no other adjustments are to be made at this time,
press the SETUP Push-button to exit the Setup Control-
ler Mode or proceed to the next desired Setup Control-
ler Mode for adjustment.

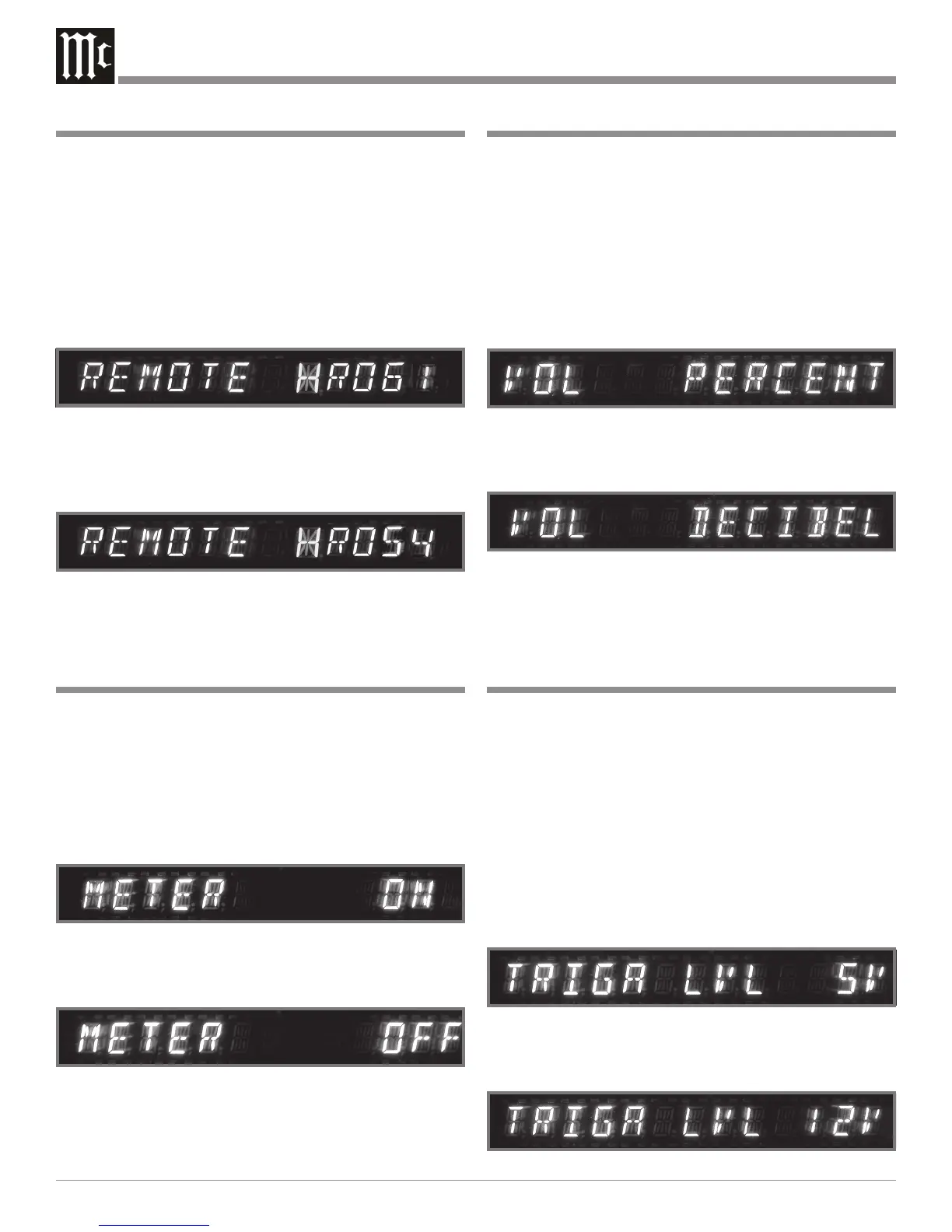

Figure 9A
Figure 9B
