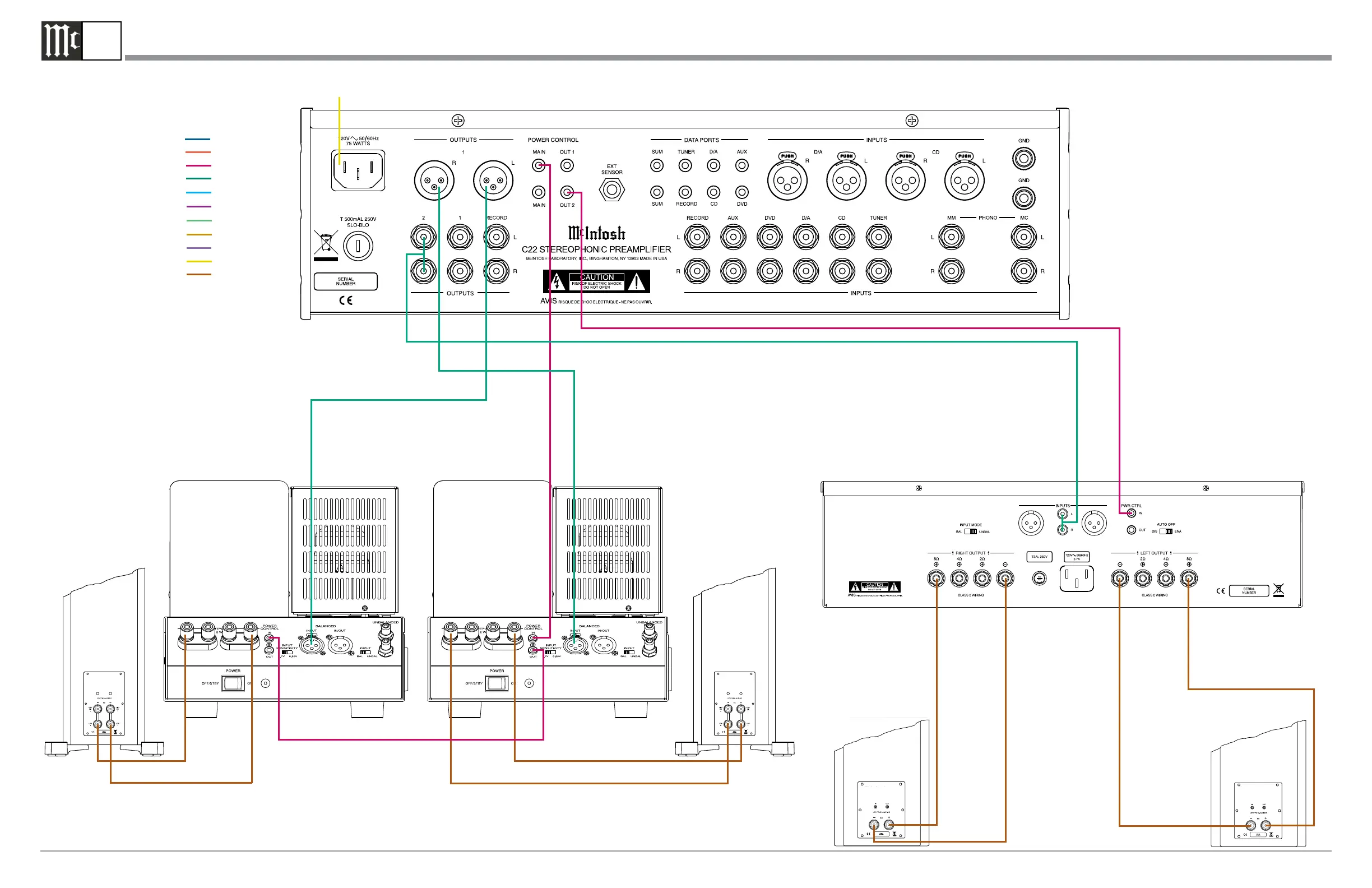

C22 Output Connection Diagram

BAL R

BAL L

UNBAL

Power Amplifier (Right) -

Main Room

Connect to AC Outlet

Stereo Power Amplifier (partial view) - Secondary Room

Note: Refer to the C22 Owner’s Manual

page 8 for additional connection

information.

Connection Legend:

Data Cable*-

Sensor/Keypad Cable -

Power Control Cable* -

Audio Signal Cable -

Video Signal Cable -

RF Signal Cable -

Digital Signal Cable -

RS232 Cable -

Ground Wire -

AC Power Cords -

Loudspeaker Cable -

* 2 conductor shielded with 1/8 inch

stereo mini phone plug on each end.

Power Amplifier (Left) -

Main Room

Main Room Loudspeaker Main Room Loudspeaker

Secondary Room

Loudspeaker

Secondary Room

Loudspeaker

Other manuals for McIntosh C22

Questions and Answers:

Need help?

Do you have a question about the McIntosh C22 and is the answer not in the manual?

General

Type	Tube Preamplifier
Total Harmonic Distortion	0.08%
Dimensions	16-1/2" (42 cm) x 6" (15.24 cm) x 18" (45.72 cm)
Weight	25 lbs (11.3 kg) net, 36 lbs (16.3 kg) in shipping carton
Output	2.5V
Tube Complement	4 x 12AX7A, 2 x 12AT7
Signal to Noise Ratio Line	100dB
Output Voltage	2.5V
Frequency Response	20Hz to 20kHz
Inputs	1 balanced
Outputs	1 balanced
Signal to Noise Ratio	100dB
Dimensions (W x H x D)	16-1/2" (42 cm) x 6" (15.24 cm) x 18" (45.72 cm)
