the other the only control that is effective is
the TAPE JACK switch. (Note: Some portable
tape machines will drive the C22 even though
the TAPE JACK switch is in the RECORD
position.) This is not a normal circuit use and
a distorted signal usually results. For low-
distortion operation follow the recommended
procedure.
USING THE C22 WITH MICROPHONES FOR STEREO
Microphones in stereo may be used with
the C22. The two MIC channels amplify
microphone signals. They have a sensitivity
of 2 millivolts and an input impedance of 1
megohm. For lower output microphones in-
put transformers should be used to raise the
voltage output to the 2 millivolt range.
When the INPUT SELECTOR is turned to
the MIC position, the COMP control does not
operate. All the other controls operate and
may be used the same as for any other
program source.

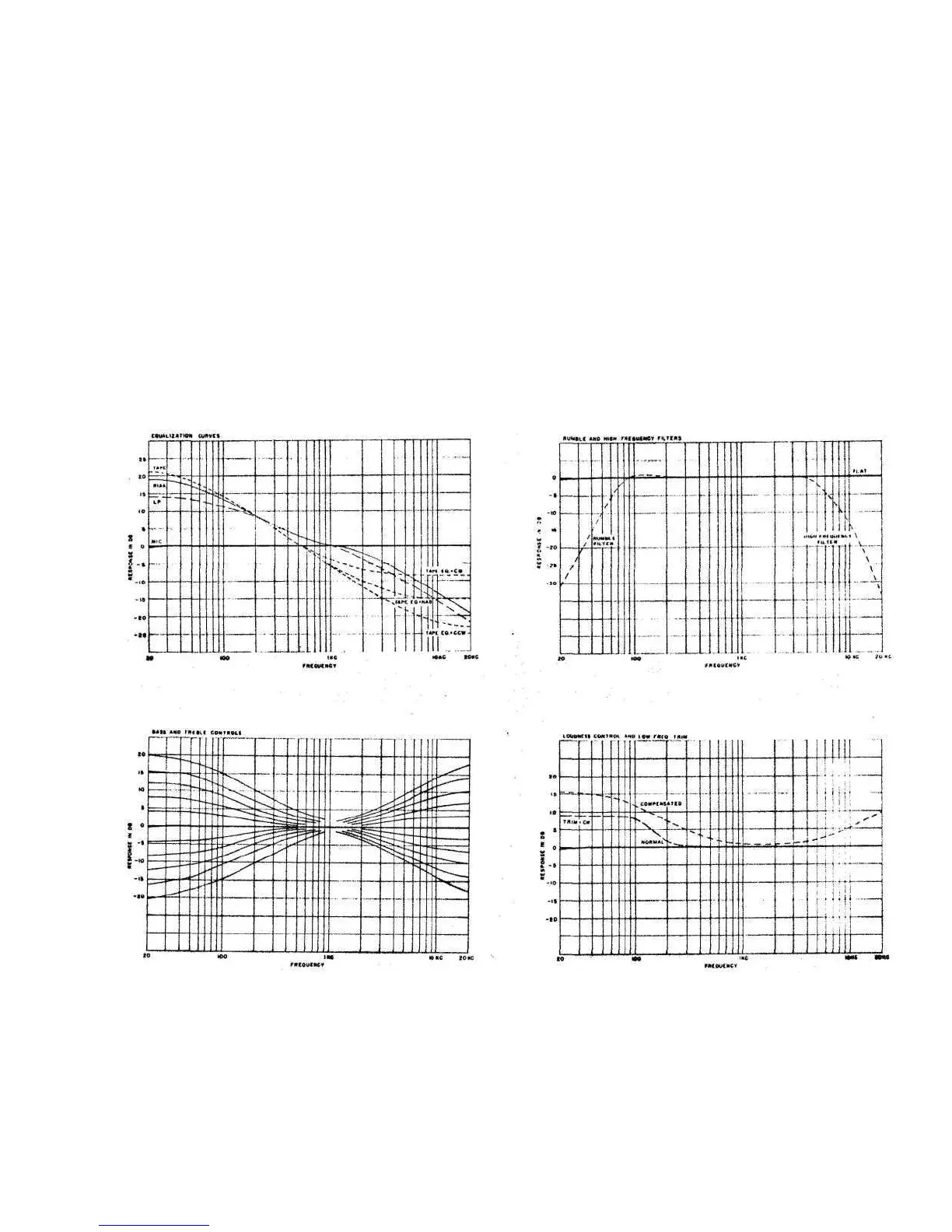

OPERATING CURVES
15

McIntosh C22 Specifications

General

Type	Tube Preamplifier
Total Harmonic Distortion	0.08%
Dimensions	16-1/2" (42 cm) x 6" (15.24 cm) x 18" (45.72 cm)
Weight	25 lbs (11.3 kg) net, 36 lbs (16.3 kg) in shipping carton
Output	2.5V
Tube Complement	4 x 12AX7A, 2 x 12AT7
Signal to Noise Ratio Line	100dB
Output Voltage	2.5V
Frequency Response	20Hz to 20kHz
Inputs	1 balanced
Outputs	1 balanced
Signal to Noise Ratio	100dB
Dimensions (W x H x D)	16-1/2" (42 cm) x 6" (15.24 cm) x 18" (45.72 cm)
