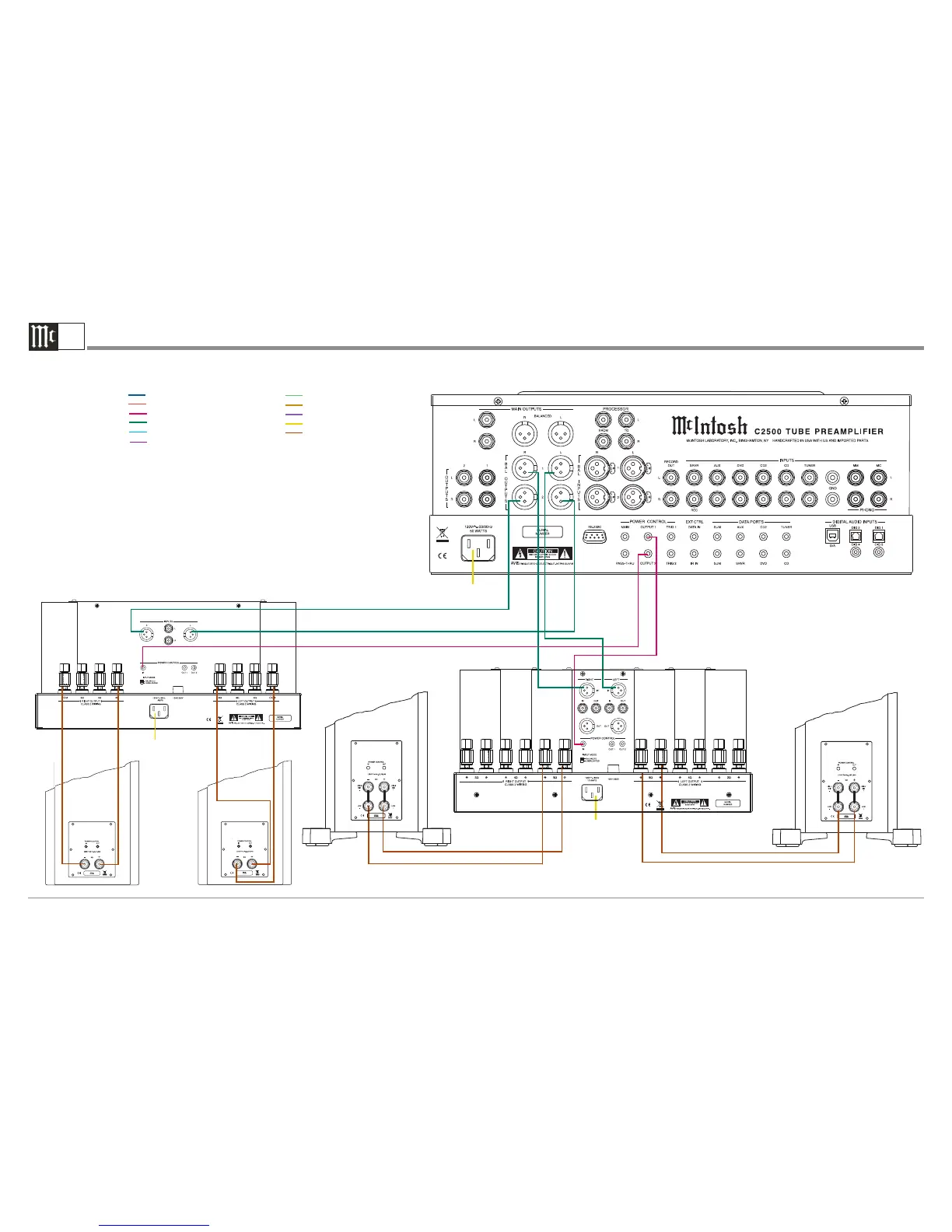

C2500 Tube Preamplifier Output and Control Connection Diagram
6.6
Note: Refer to the C2500 Owner’s Manual page 9 for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
* 2 conductor shielded with 3.5mm stereo mini phone plug on each end.
+
