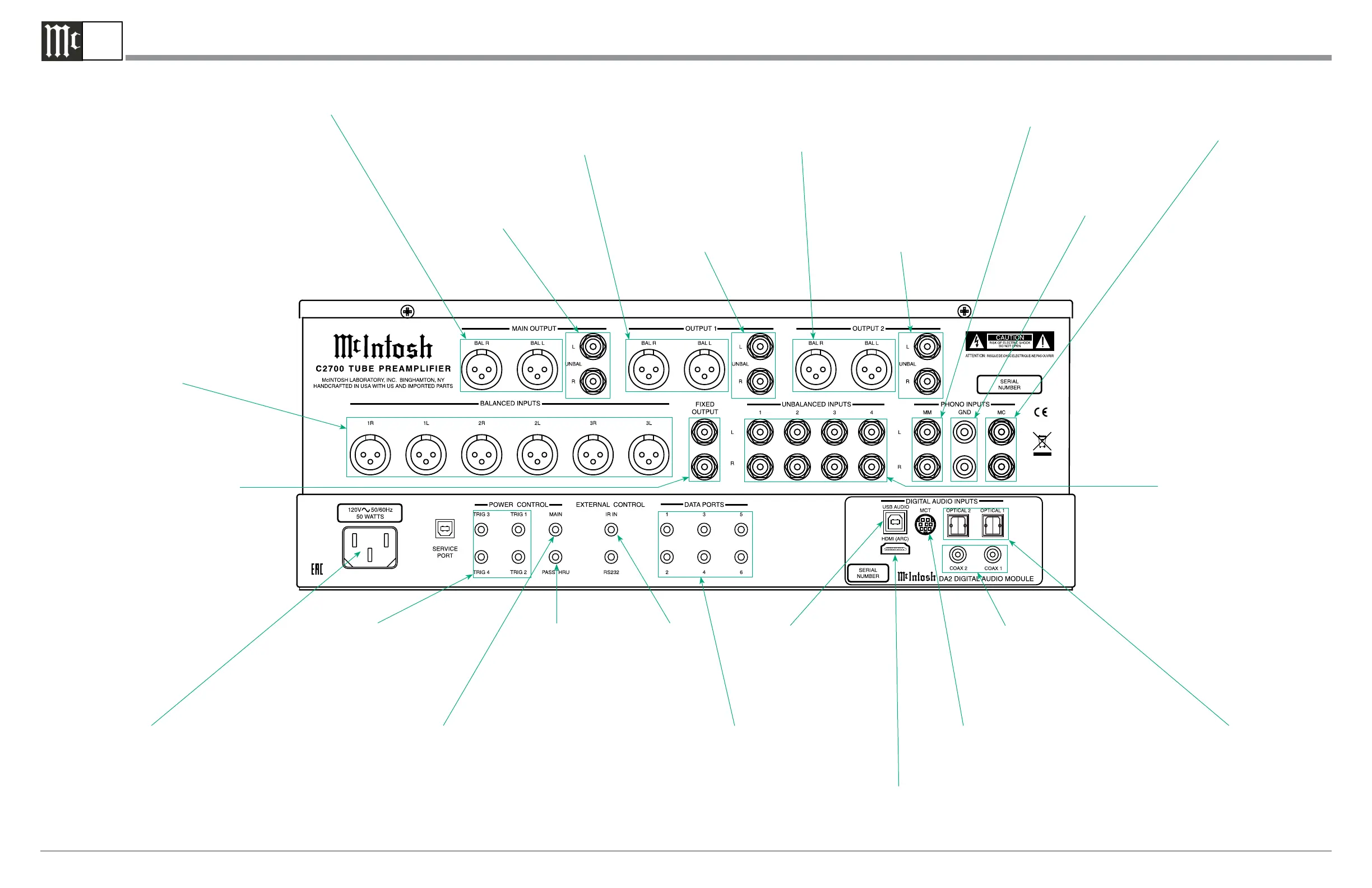

C2700 Rear Panel Connections
2B
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549
Connect the C2700 power cord
to a live AC outlet. Refer to
information on the back panel
of your C2700 to determine the
correct voltage for your unit
POWER CONTROL MAIN Output
sends turn On/Off signals to a Mc-
Intosh Component when the C2700
is switched On/Off
DATA PORTS are assignable to
send signals to Source
Components to allow control
with the C2700 Remote Control
GND terminals accept
a ground wire from a
turntable
FIXED OUTPUT
(Record Out) sends
signals to the input
of a recording device
PHONO MM accepts
signals from a Moving
Magnet Phono Cartridge
UNBALANCED INPUTS
1 thru 4 accept high level
program source signals
MAIN OUTPUTS BALanced send
signals to a Power(s) Amplifier
MAIN OUTPUTS
UNBALanced send
signals to a Power(s)
Amplifier
OUTPUT 1 BALanced send sig-
nals to a Power Amplifier(s) and
is switched On/Off with the Front
Panel Output 1 Push-Button or
Remote Control Push-Button
PASSTHRU POWER
CONTROL Input
receives turn On/Off
signals from an Audio/
Video Control Center
PHONO MC accepts
the low level signals
from a Moving Coil
Phono Cartridge
COAXial DIGITAL AUDIO
INPUTS for components with a
Digital Coaxial Output sending
a digital audio signal
OPTICAL DIGITAL AUDIO
INPUTS for components
with a Digital Optical Output
sending a digital audio signal
BALANCED INPUTS 1
thru 3 accept high level
program source signals
USB DIGITAL AUDIO
INPUT with control
signal for connection to
a computer
IR INput for
signals from a
compatible IR
Room Sensor
POWER CONTROL TRIGger out-
puts 1 thru 4 are assignable to send
turn On/Off signals to components
MCT DIGITAL AUDIO INPUT
for streaming high bandwidth
digital signals from SACD/CD
Transport Components
OUTPUT 1 UNBALanced send
signals to a Power Amplifier(s) and
is switched On/Off with the Front
Panel Output 1 Push-Button or Re-
mote Control Push-Button
OUTPUT 2 BALanced send sig-
nals to a Power Amplifier(s) and
is switched On/Off with the Front
Panel Output 2 Push-Button or
Remote Control Push-Button
OUTPUT 2 UNBALanced send
signals to a Power Amplifier(s)
and is switched On/Off with the
Front Panel Output 2 Push-Button
or Remote Control Push-Button
HDMI (ARC) DIGITAL
AUDIO INPUT with
with a digital audio sig-
nal from a TV/Monitor
