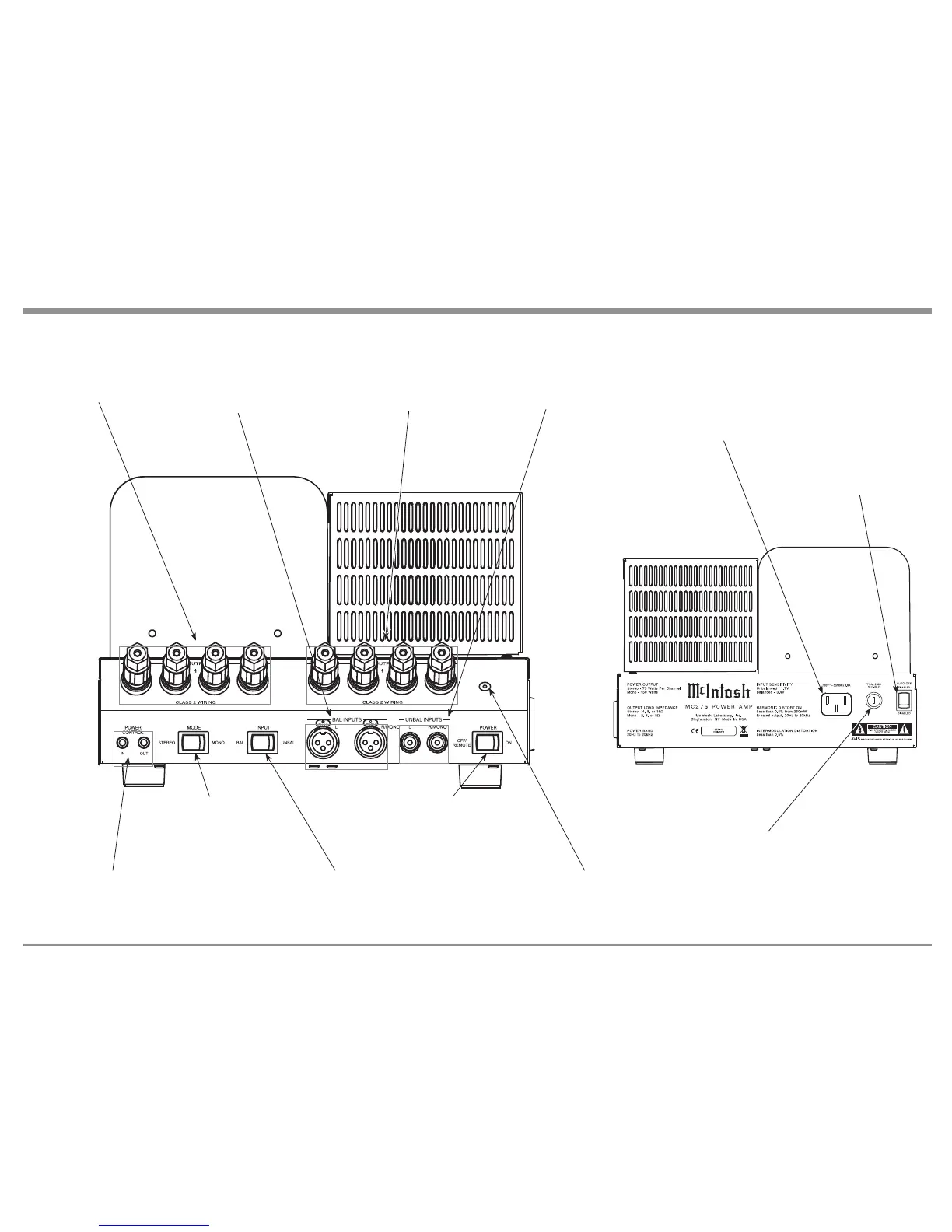

Left Side Connections, Indicator and Switch; Right Side Connection, Fuse Holder and Switch
Connect the MC275
power cord to a live AC
outlet. Refer to the no-
menclature above this
AC Socket to determine
the correct voltage
POWER CONTROL IN receives a turn On/Off
signal from a McIntosh component
POWER CONTROL OUT sends a turn On/Off
signal to the next McIntosh Component
BALanced INPUTS for au-
dio cables from a Preampli-
fier or A/V Control Center
audio output
LEFT OUTPUT
Connections for
a 4, 8 or 16 ohm
Loudspeaker
Fuse holder, refer to the nomenclature
above this fuse holder to determine the
correct the correct fuse size and rating
UNBALancded INPUTS
for audio cables from a
Preamplifier or A/V Con-
trol Center audio output
AUTO OFF Disables
or Enables the Power
Saving Circuitry
1
1
Refer to page 15 for additional information
RIGHT OUTPUT
Connections for
a 4, 8 or 16 ohm
Loudspeaker
MODE switch selects between
STEREO and MONO Parallel
modes of operation
INPUT switch selects
between BALanced
and UNBALanced
Input connections
Standby Power
On Indicator
POWER Switch Turns
AC Power On or Off/
Remote (On/Off)
