IR Sensor receives

commands from a

Remote Control

STANDBY/ON Push-button

with indicator, switches the

D1100 ON or OFF (Standby) and

resets the microprocessors

VOLUME Control allows ad-

justment of the listening level

for both channels. Also used

to change the various TRIM

and SETUP Functions

Connection for low impedance

dynamic headphones, for private

listening

MUTE Push-button mutes

the audio from the Loud-

speakers and Headphones

INPUT Control used to

select a source for listening

and recording. The control is

also used to enter the TRIM

or SETUP Modes and select

the various functions

Meter indicates the

Right Channel Output

of the Preamplifier

Meter indicates the

Left Channel Output

of the Preamplifier

OUTPUT 1 and 2 Push-buttons

with indicators, switch the

Preamplifier Outputs 1 and 2

On or Off

INFORMATION DISPLAY indicates

the Sources, Volume, other Audio

Settings, Operational Functions and

Setup Mode Settings

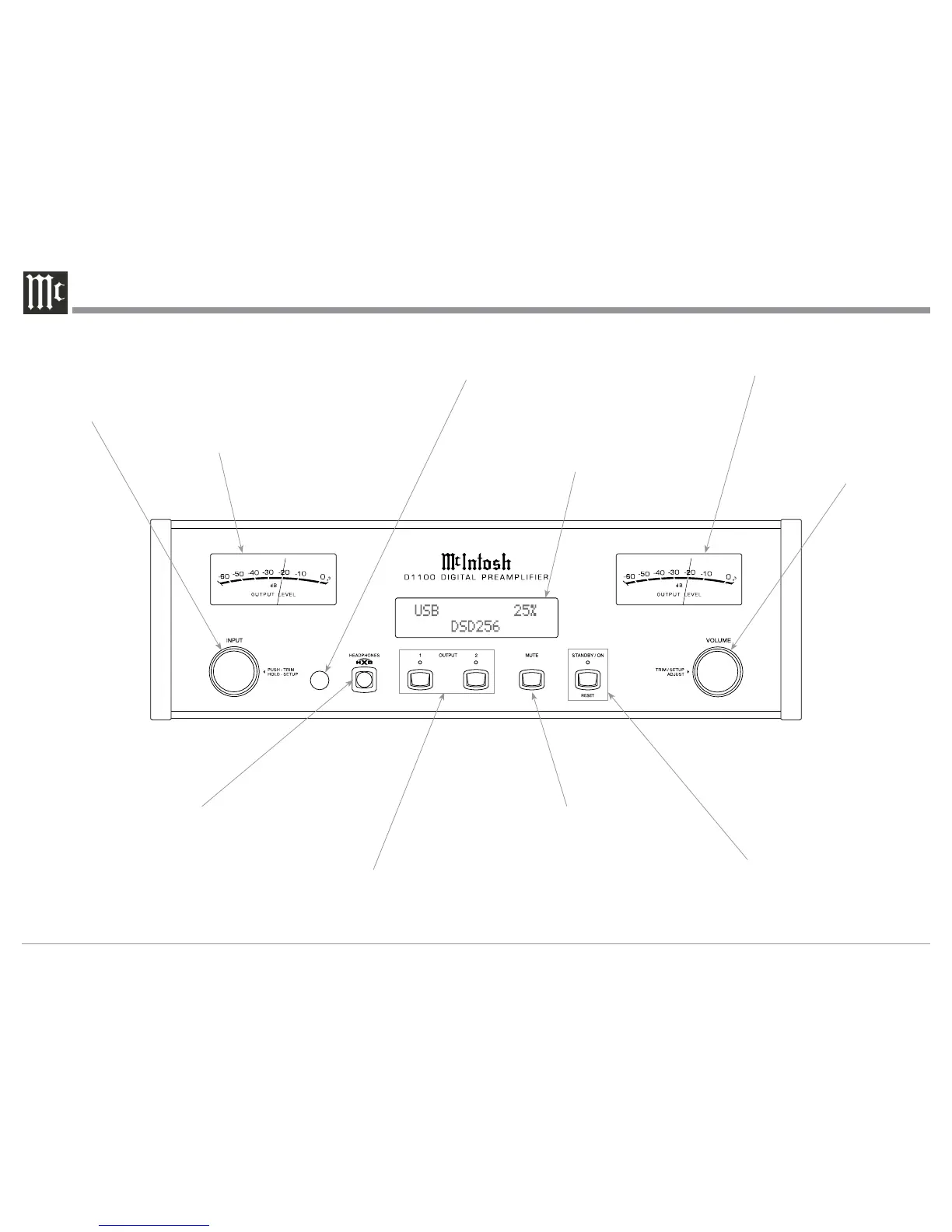

Front Panel Displays, Controls, Push-buttons and Jack
