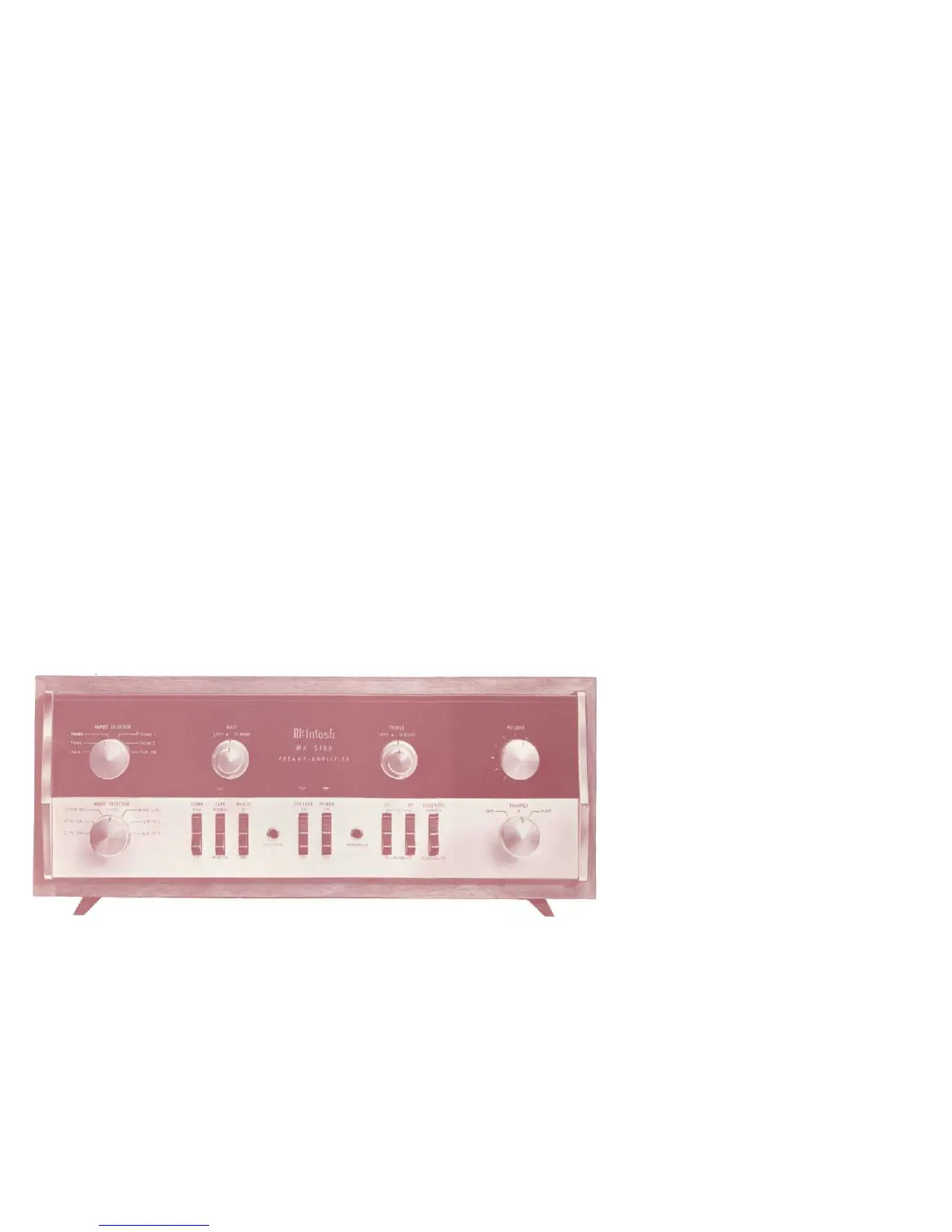

IF YOU'RE IN A HURRY
INPUT SELECTOR
1 AUX ... for any device connected to the AUX
inputs on back.
TAPE ... for tape recorder with built-in elec-
tronics.
TUNER ... for FM stereo or AM/FM tuner.
PHONO 1 ... for record player.
PHONO 2 ... for record player.
TAPE HD ... for tape deck without electronics.
2 BASS . . . modifies low frequency sounds. Set
to your taste.
3 TREBLE . . . modifies high frequency sounds.
Set to your taste.
4 VOLUME . . . adjust to desired level.
5 BALANCE . . . make one speaker louder than
the other. Permits the adjustment of unequal
sound caused by room acoustics or program
material.
6 LOUDNESS . . . compensate for low volume
listening and still hear full frequency range.
7 HF ... FILTER in ... reduces high frequency
noise such as record surface noise.
8 LF ... FILTER in ... reduces low frequency
noise such as turntable rumble.
9 HEADPHONE ... to connect a set of low im-
pedance stereo headphones.
10 POWER . . . turns system ON and OFF.
11 SPEAKER . . . turns speakers ON and OFF
for headphone listening.
MUST BE ON FOR NORMAL LISTENING.
12 PHASE . . . correct for out of phase program
source.
13 TAPE MON ... in MONITOR position hear the
tape as it is being recorded, in NORMAL hear
the program source.
MUST BE IN NORMAL POSITION TO HEAR
ALL OTHER PROGRAM SOURCES.
14 COMP . . . use RIAA with most stereo records.
15 MODE SELECTOR .... for all stereo programs,
set to STEREO position. Other positions are
for monophonic programs or for balancing
the system.
9
