TM2-4
Thank You
Your decision to own this McIntosh TM2 HD AM/FM
Tuner Module for the MA6600 ranks you at the very top
among discriminating music listeners. You now have “The
Best.” The McIntosh dedication to “Quality,” is assurance
that you will receive many years of musical enjoyment
from this unit.
Please take a short time to read the information in this
manual. We want you to be as familiar as possible with all
the features and functions of your new McIntosh.
Please Take A Moment
The serial number, purchase date and McIntosh Dealer
name are important to you for possible insurance claim or
future service. The spaces below have been provided for
you to record that information:
Serial Number: __________________________________
Purchase Date: __________________________________
Dealer Name: ___________________________________
Technical Assistance
If at any time you have questions about your McIntosh
product, contact your McIntosh Dealer who is familiar
with your McIntosh equipment and any other brands that
may be part of your system. If you or your Dealer wish
additional help concerning a suspected problem, you can
receive technical assistance for all McIntosh products at:
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-1545
Fax: 607-724-0549
Customer Service
If it is determined that your McIntosh product is in need of
repair, you can return it to your Dealer. You can also return
it to the McIntosh Laboratory Service Department. For
assistance on factory repair return procedure, contact the
McIntosh Service Department at:
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3515
Fax: 607-723-1917
Copyright 2008 © by McIntosh Laboratory, Inc.
Safety Instructions .................................................TM2-2-3
Thank You and Please Take a Moment ..................TM2-4
Technical Assistance and Customer Service .........TM2-4
Table of Contents ...................................................TM2-4
General Information ..............................................TM2-4
RAA2 Connector and Cable Information ..............TM2-4
Introduction ............................................................TM2-5
Performance Features ............................................TM2-5
Rear Panel Connections .........................................TM2-6
Connecting the RAA2 ...........................................TM2-7
How to Operate the Tuner Setup Mode .................TM2-8
How to Operate the MA6600 Tuner ......................TM2-9-13
Station Preset Information .....................................TM2-14
Specifications .........................................................TM2-15
Table of Contents
1. For additional connection information, refer to the
owner’s manual(s) for any component(s) connected to
the MA6600 Integrated Amplifier and the TM2 Tuner
Module.
2. The Main AC Power going to the MA6600 and any
other McIntosh Component(s) should not be applied
until all the system components are connected together.
Failure to do so could result in malfunctioning of some
or all of the system’s normal operations. When the
MA6600 and other McIntosh Components are in their
Standby Power Off Mode, the Microprocessor’s Circuit-
ry inside each component is active and communication
is occurring between them.
3. The type and availability of tuner module(s) for the
MA6600 varies from country to country. Contact your
McIntosh Dealer for additional information.
General Information

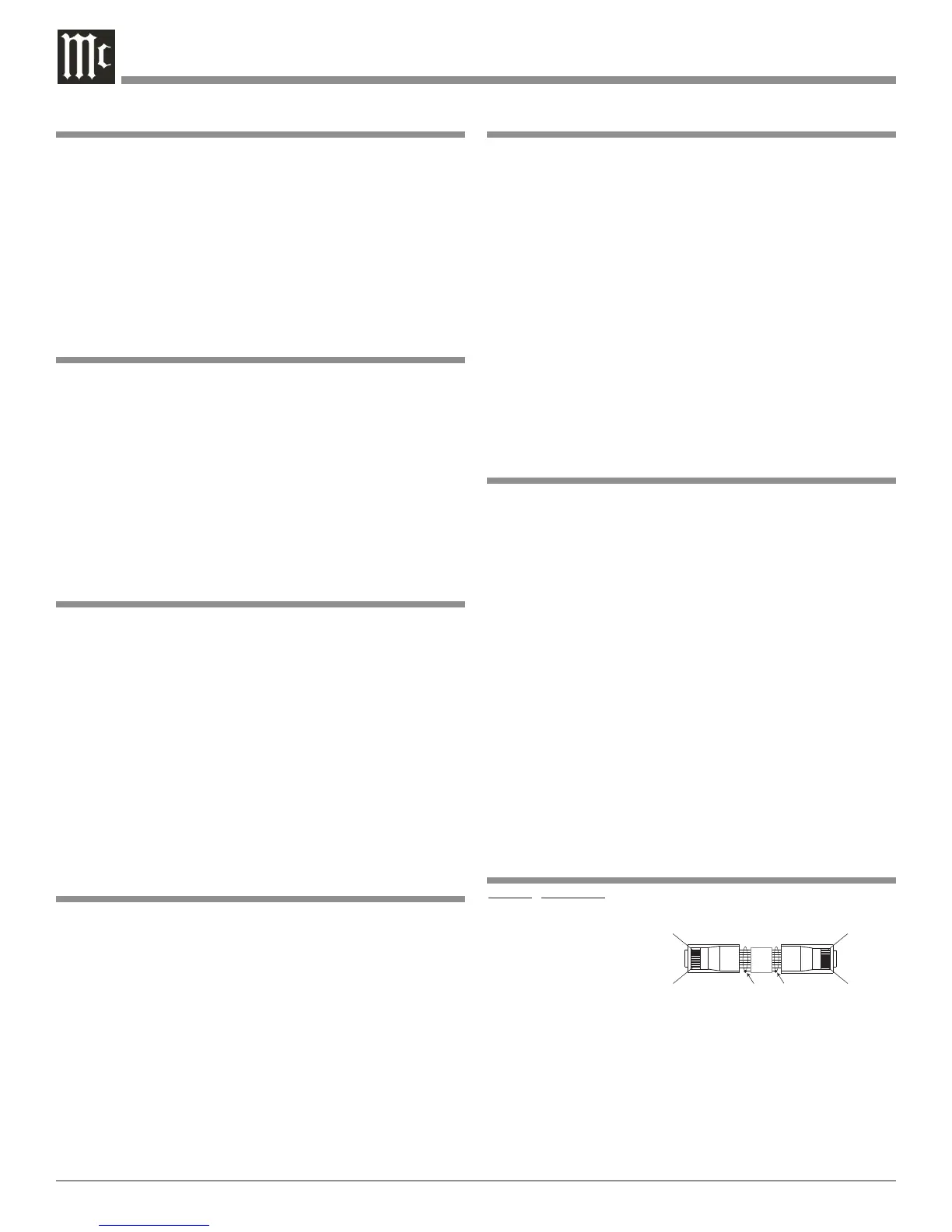

RAA2 Cable Connector Information
Pin 1
Pin 1
Pin 8
Pin 8
*Cable outer shield
Pin No. Wire Color
1. White/Orange
2. Orange
3. White/Green
4. Blue
5. White/Blue
6. Green
7. White/ Brow n
8. Brown
*Cable outer shield
Note: The RAA2 Connecting Cable is available from the Mc-
Intosh Parts Department:
RAA2 Antenna Cable Part No. 171844
Twenty foot, shielded 8 conductor, with a shielded RJ45
connector on each end.
