McIntosh MC1.2KW - Rear Panel Connections and Switches; Input and Output Terminal Identification; Circuit Breaker and Input Mode Switch

MC1.2KW
9
10

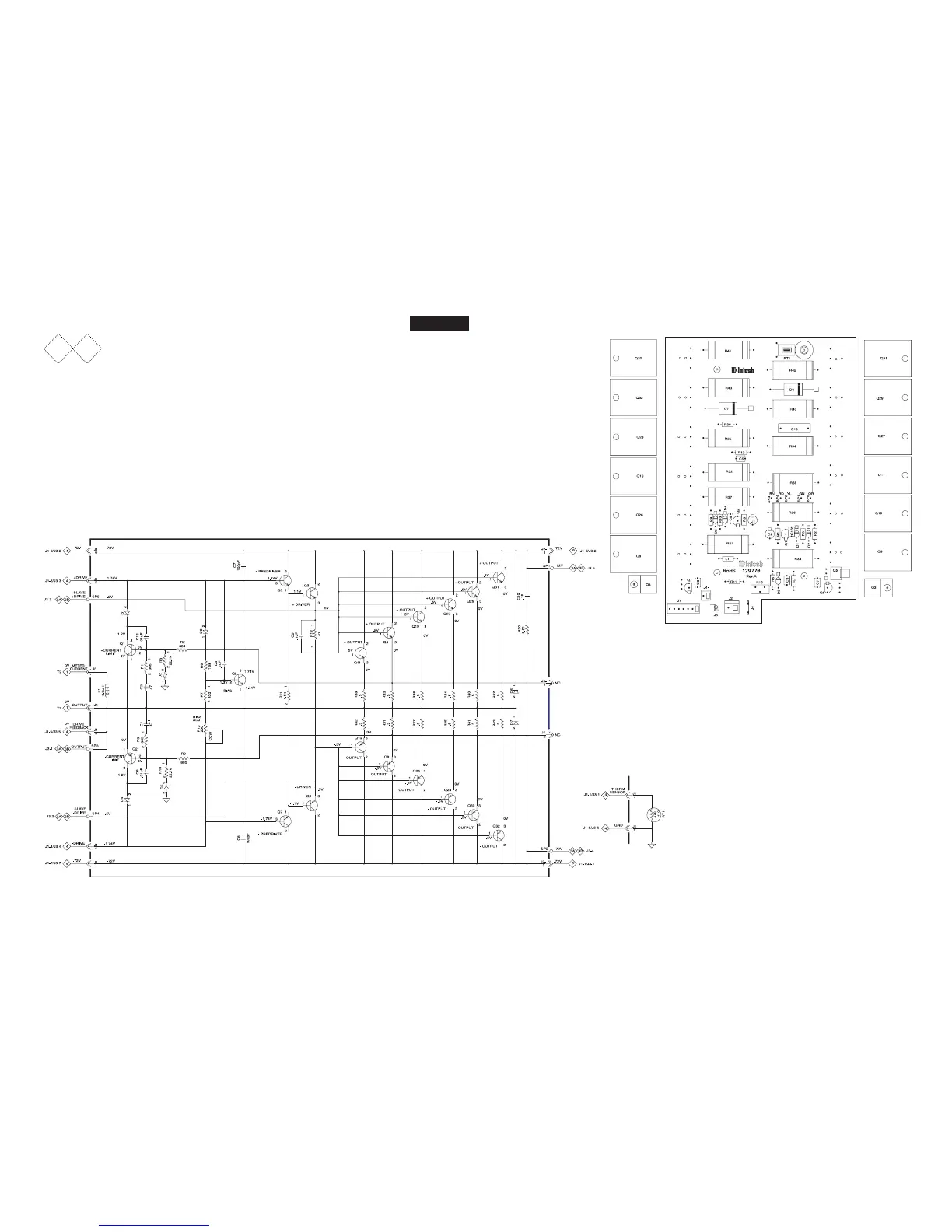

HEATSINK MASTER 749485 SCH and PCB
2A
2B
BIAS ADJUSTMENT
OPERATE THE AMPLIFIER FOR 5 MINUTES
WITH NO INPUT SIGNAL.
HEATSINKS MUST BE COOL.
ADJUST R13 FOR 18+
_
2mV ACROSS
PINS 1 & 2 OF J4. ADJUST BOTH MASTER
HEATSINKS.
