McIntosh MC462 Connection Diagram

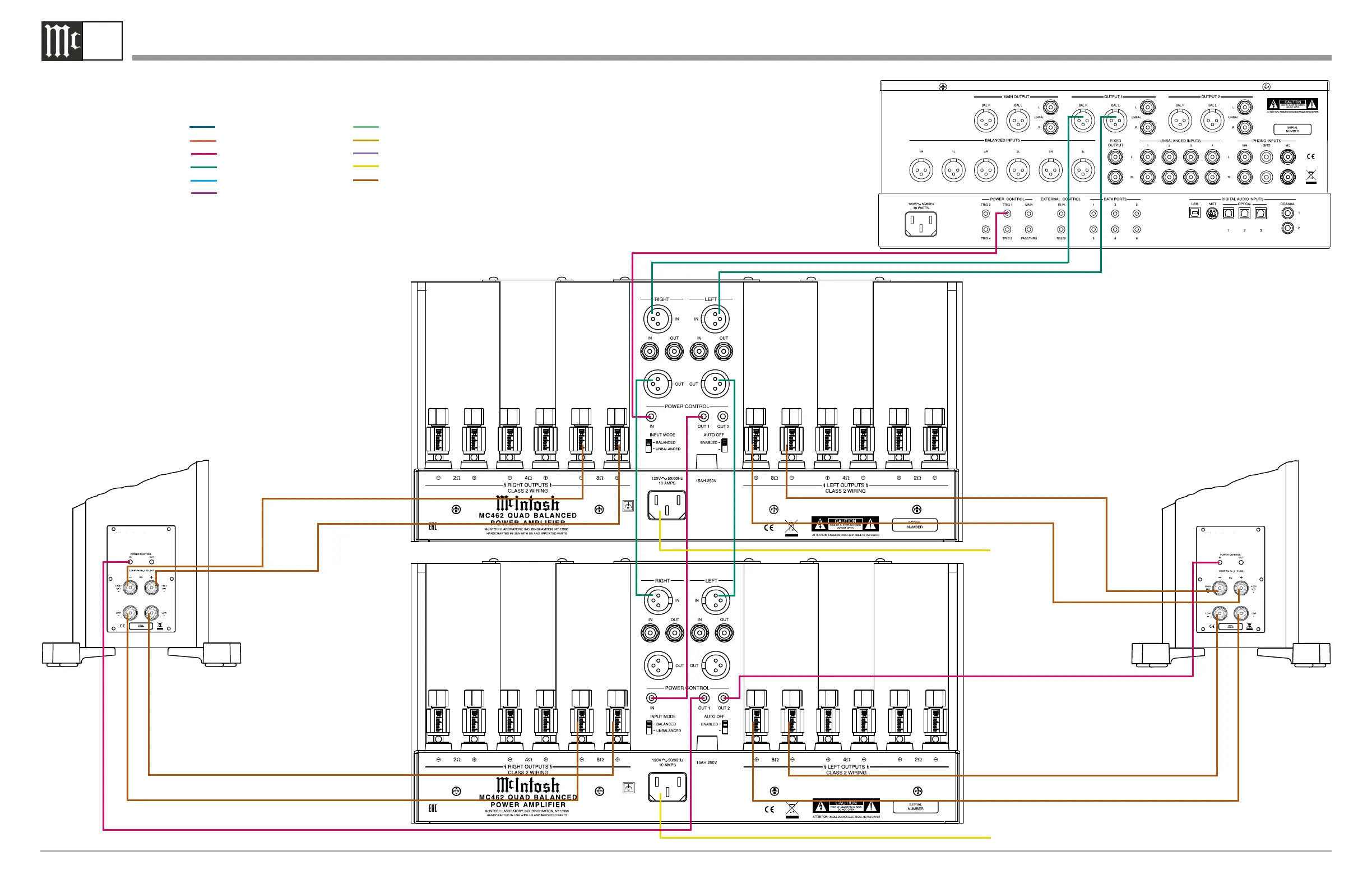

MC462 Bi-Amp Connection Diagram
1B
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com
DISABLED
DISABLED
Audio Preamplifier
Power Amplifier
One
Connect to
AC Outlet
Note: Refer to the MC462 Owner’s Manual page 10 for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - Network/RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
* 2 conductor shielded with 1/8 inch stereo mini phone plug on each end.
Connect to
AC Outlet
Power Amplifier
Two
Left Loudspeaker System
-
+
Right Loudspeaker System
-
+
-
+
-
+

McIntosh MC462 Specifications

General

Power Output per Channel	450 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Frequency Response	20Hz - 20kHz (+0, -0.25dB)
Dynamic Headroom	1.8dB
Damping Factor	>40
Rated Power Band	20Hz - 20kHz
Frequency Response Extended	10Hz - 100kHz (+0, -3dB)
Remote Power Control	Yes
Multi-Channel DB25 Cable	No
Output Impedance	2, 4, 8 Ohms
Dimensions	17.5 x 10.5 x 22 inches (W x H x D)
