IOMM AGR-1 AGR 070A through 100A 37

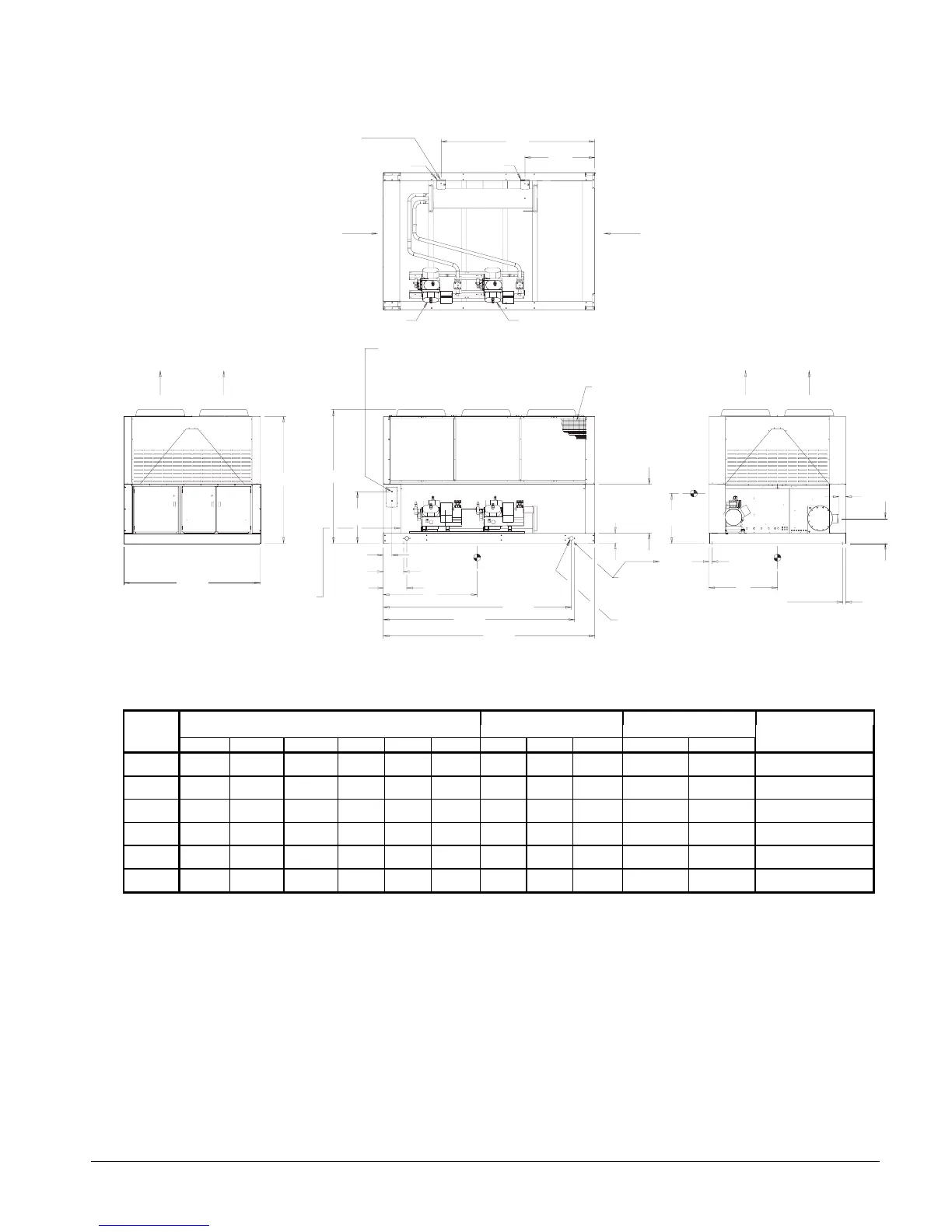

Figure 27, Dimensions AGR 075AS through 100AS
5
”
(12
7mm
)
(AGR0
75-
100)
VICTAULIC CONNECTIONS
FURNISHED WITH GROOVES
FOR VICTAULIC COUPLINGS
BY OTHERS
INLET
CONTROL BOX
AT THIS END
OF UNIT
COMPRESSOR # 1
POWER ENTRY
LOCATION
THIS SIDE ONLY
(A KNOCKOUT IS LOCATED
6” (152mm) BELOW THIS
OPENING FOR MULTIPLE
POWER SUPPLY)
AIR DISCHARGE
CONTROL
CENTER
POWER CENTER
88.12
(2238.2)
CONTROL WIRING
ENTRY KNOCKOUTS
FOR 1/2” (13mm)
CONDUIT AT BACK
OF CONTROL BOX
ON CONTROL SIDE
33.36
(847.3)
5.50
(139.7)
13.12
(333.2)
15.12
(384.0)
B
A
123.23
(3130.0)
121.23
(3079.2)
136.35
(3463.3)
X
6.50
(165.1)
31.50
(800.1)
2.00
(50.8)
Z
Y
2.00
(50.8)
UNIT ISOLATOR/
MOUNTING HOLE
LOCATIONS (4)
(2) PER SIDE AS
SHOWN
2.5” (63mm) DIAMETER
LIFTING HOLES (4)
(2) PER SIDE AS SHOWN
TYPICAL SPACING FOR 1.0 (25.4)
DIAMETER ISOLATOR/MOUNTING
HOLE LOCATIONS (4)
F
E
AIR DISCHARGE
OPTIONAL
COIL GUARDS
COMPRESSOR # 2
COIL HEADERS
AT THIS END
OF UNIT
NOTE:
1. ALL DIMENSIONS IN INCUES (mm)
2. ALL UNITS HAVE (2) INDEPENDENT
REFRIGERANT CIRCUITS
C
D
EVAPORATOR
2 REFRIGERANT CIRCUITS
OUTLET
AGR Unit Dimensions Center of Gravity Weights Additional Weight
MODEL inch (mm) inch (mm) lb. (kg) for Units with Copper
Number A B C D E F X Y Z Operating Shipping Fin Coils lb (kg)
075AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
4.4
(112)
17.5
(444)
60.4
(1534)
42.2
(1072)
37.3
(947)
5506
(2500)
5360
(2428)
1245
(565)
080AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
4.4
(112)
17.5
(444)
60.4
(1534)
41.5
(1054)
36.9
(937)
5740
(2605)
5595
(2540)
1245
(565)
085AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
4.4
(112)
17.5
(444)
60.4
(1534)
40.8
(1036)
36.2
(919)
5920
(2685)
5775
(2620)
1245
(565)
090AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
3.8
(96)
17.5
(444)
60.4
(1534)
42.0
(1067)
36.8
(935)
6185
(2805)
6010
(2725)
1245
(565)
095AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
3.8
(96)
17.5
(444)
60.4
(1534)
42.0
(1067)
35.4
(899)
6195
(2810)
6020
(2730)
1245
(565)
100AS
96.2
(2444)
91.7
(2329)
99.2
(2520)
45.2
(1148)
3.8
(96)
17.5
(444)
60.4
(1534)
42.0
(1067)
35.4
(899)
6195
(2810)
6020
(2730)
1245
(565)
