IOMM AGR-1 AGR 070A through 100A 7
Vibration Isolators
Vibration isolators are recommended for all roof mounted installations or wherever vibration
transmission is a consideration.
See Dimensional Data for dimensions required to secure each isolator to the mounting surface.
The spring flex isolators are white type CP2-32, McQuay kit number 350014821, includes four spring
isolators assemblies.

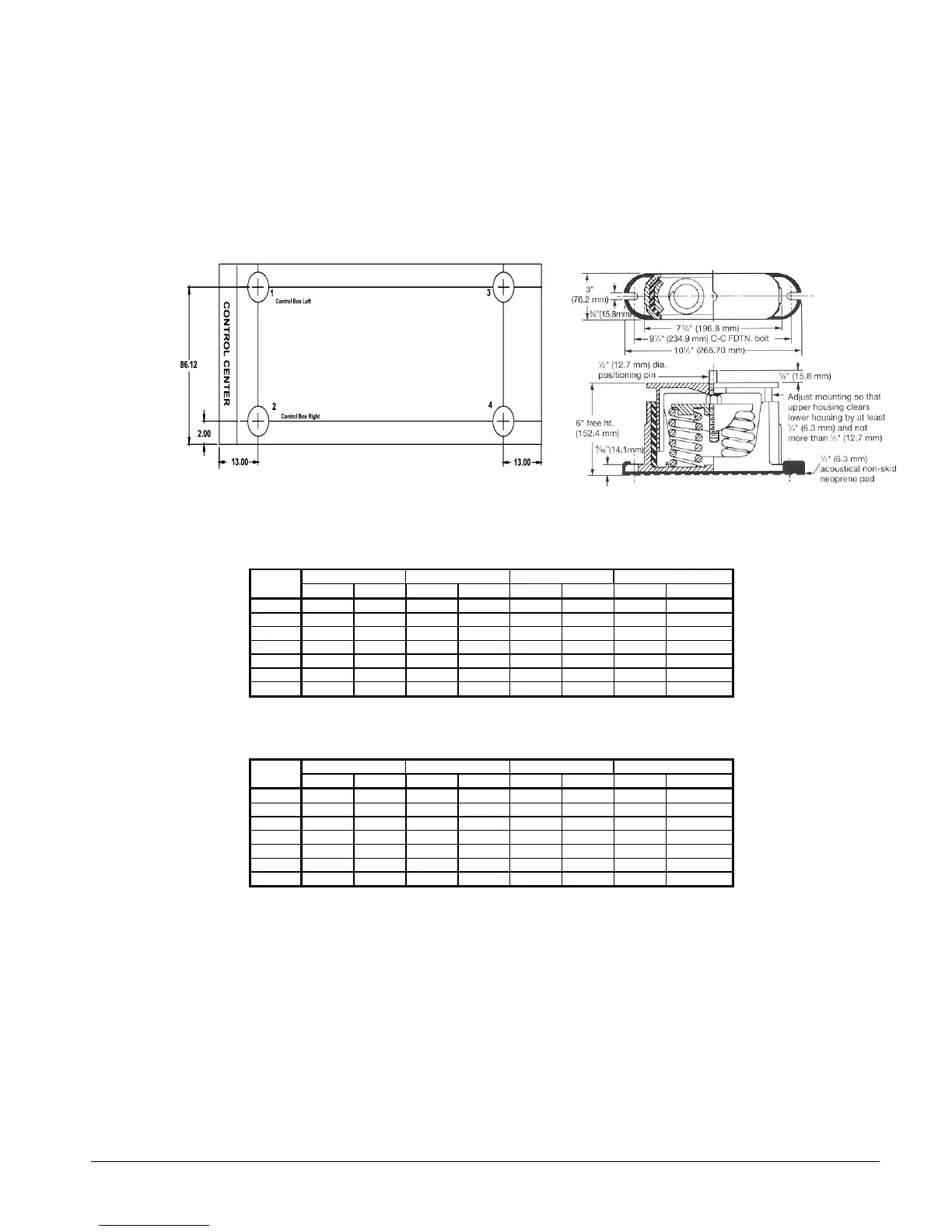

Figure 4, Isolator Locations (4 and 6 fan units) Spring Isolator
Table 1, Isolator Loads at each Mounting Location with Aluminum Fins
Unit Control Box Left Control Box Right Opposite End Left Opposite End Right
Size lb kg lb kg lb kg lb kg
070 1071 486 1193 541 952 432 1060 481
075 1491 676 1633 741 1137 516 1245 565
080 1542 699 1745 792 1151 522 1302 591
085 1561 708 1822 826 1171 531 1367 620
090 1675 760 1850 839 1264 573 1396 633
095 1678 761 1853 841 1266 574 1398 634
100 1678 761 1853 841 1266 574 1398 634
Table 2, Isolator Loads at each Mounting Location with Copper Fins
Unit Control Box Left Control Box Right Opposite End Left Opposite End Right
Size lb kg lb kg lb kg lb kg
070 1279 580 1424 646 1137 516 1266 574
075 1828 829 2002 908 1394 632 1526 692
080 1877 851 2123 963 1400 635 1584 719
085 1889 857 2206 1001 1417 643 1654 750
090 2012 913 2222 1008 1518 689 1677 761
095 2015 914 2225 1009 1520 689 1679 762
100 2015 914 2225 1009 1520 689 1679 762
