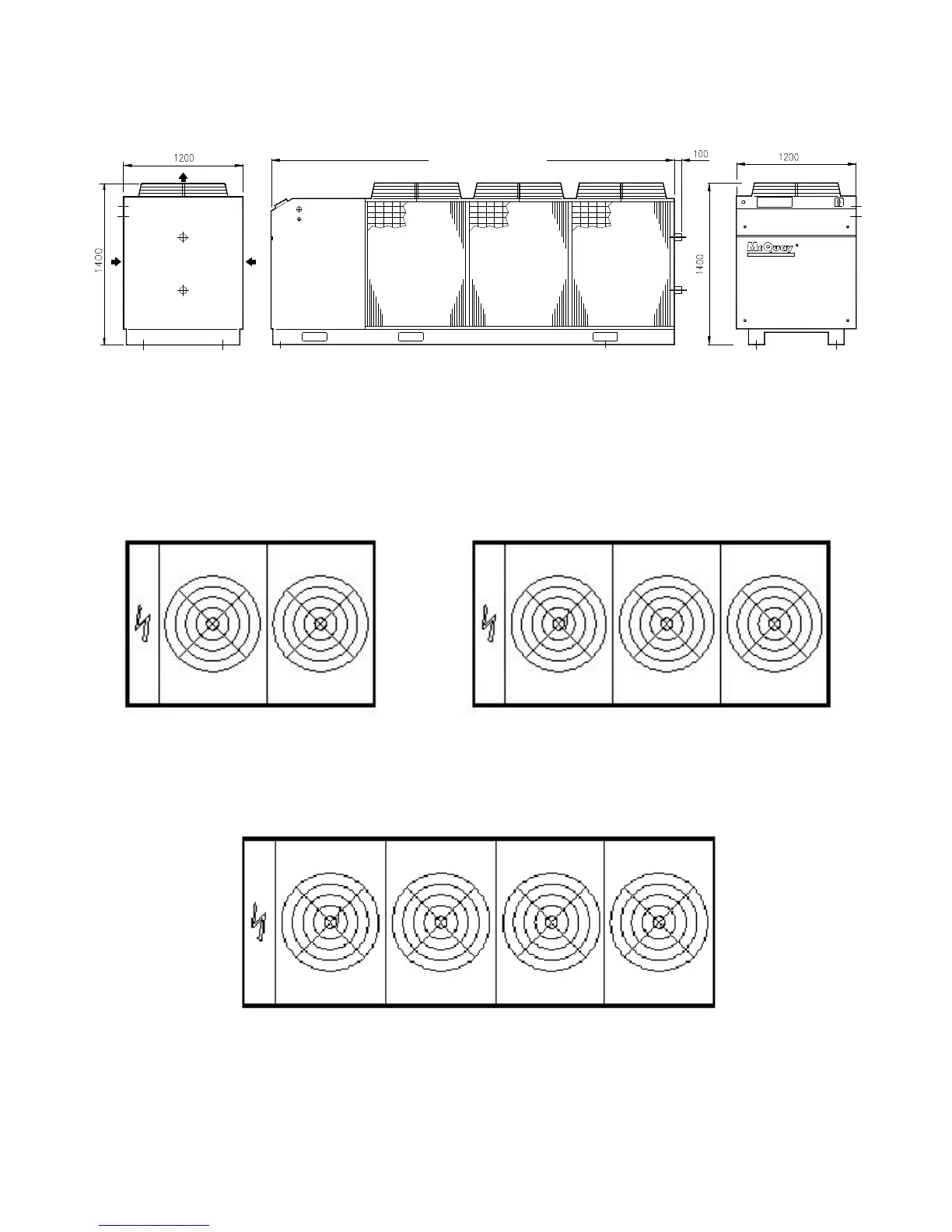

ALZ/ALP “B” Unit dimensions
Fans Arrangement
ALZ/ALP “B” 011.1 ÷ 020.1 ALZ/ALP “B” 022.2 ÷ 033.2
ALZ/ALP “B” 036.2 – 038.2
2780 (011.1÷020.1)
3530 (022.2÷033.2)
4280 (036.2÷038.2)
