IM 422 / Page 26 of 28

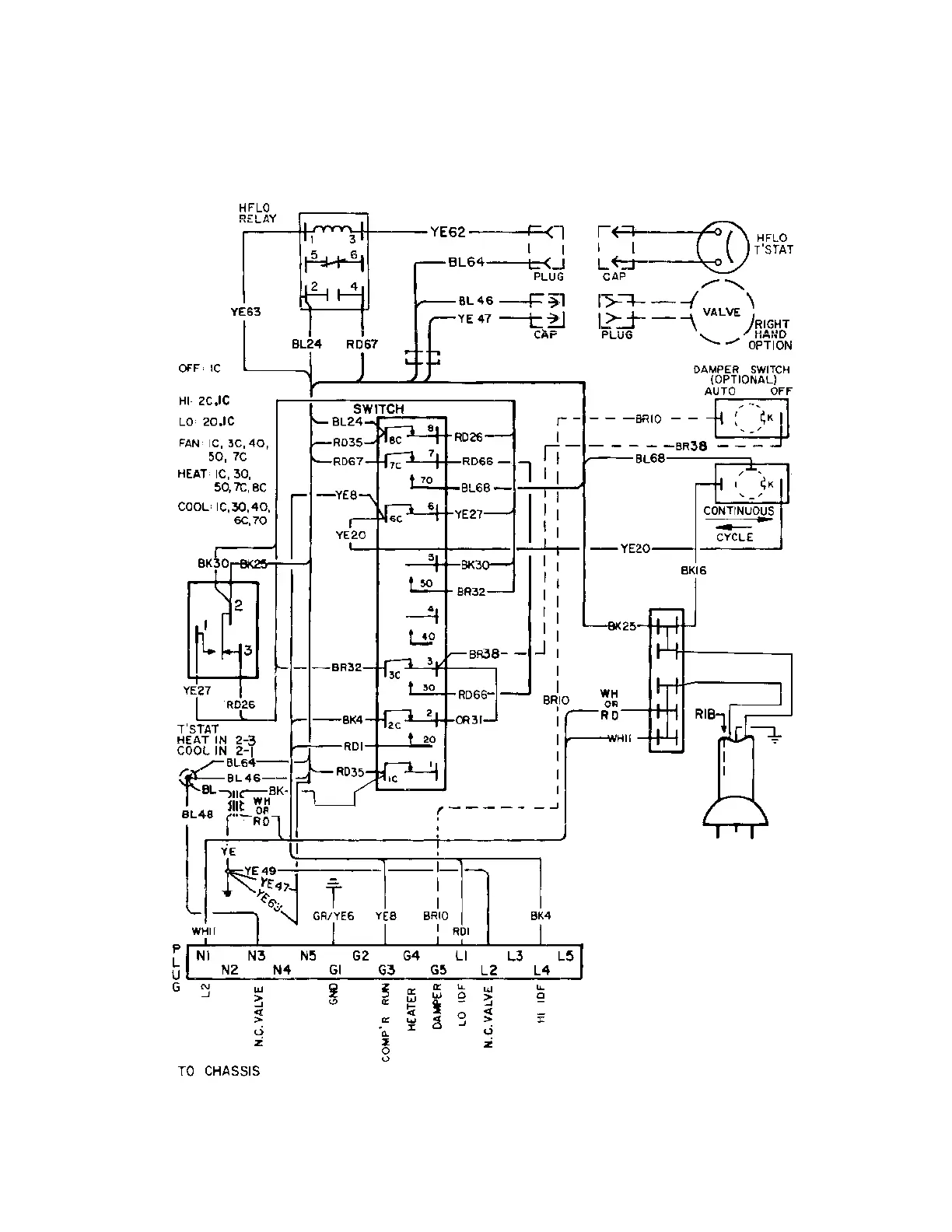

Wiring Diagram – PDNS/PDNC Control Unit Mounted with
HFLO Fan Cycle on Heat (N.C. Valve - 24V)
