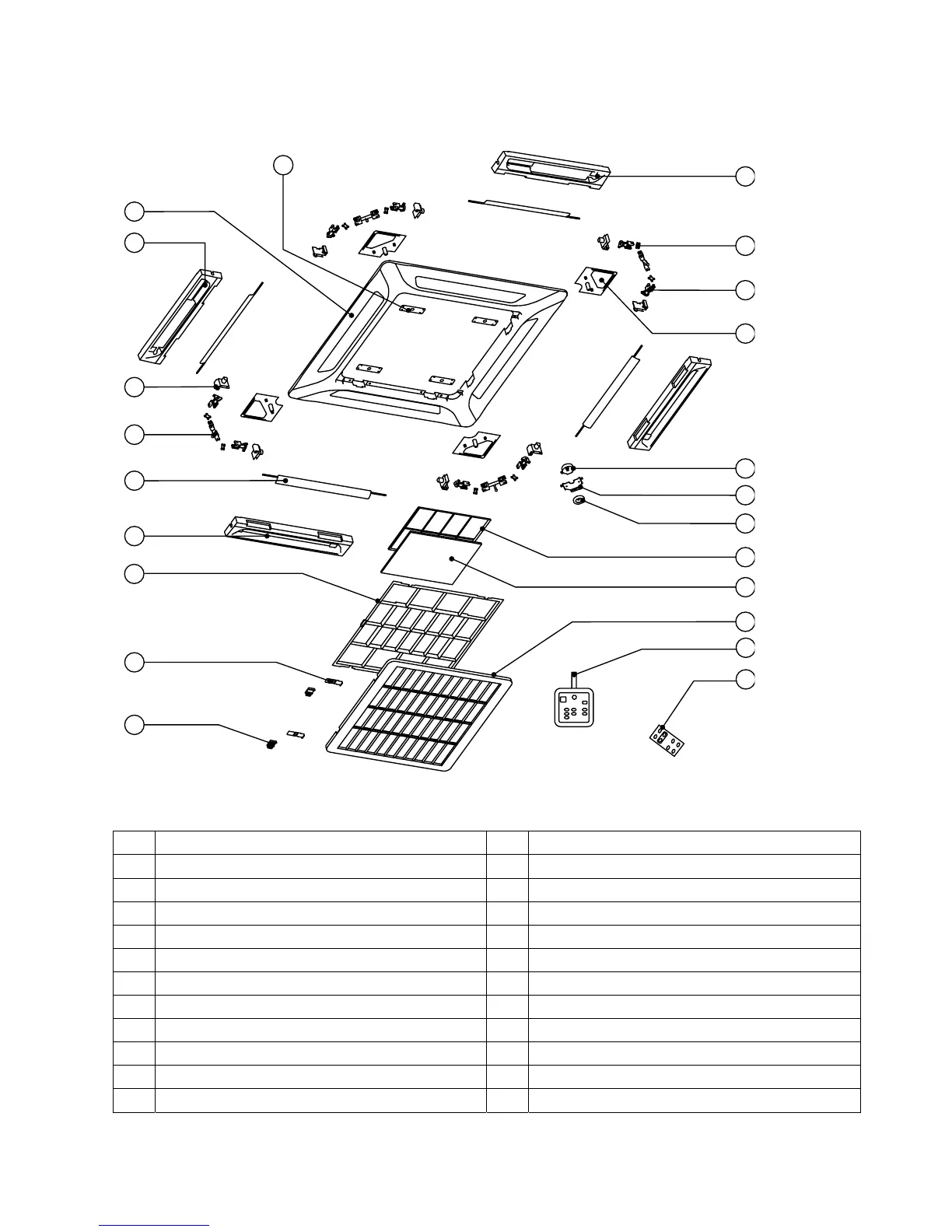

Panel (Wired Remote Control) - MCK – A/AR
12
9
5
14
13
6
16
20
2
18
17
3
4
10
7
1
15
11
8
19
21
22
NO PART DESCRIPTION NO. PART DESCRIPTION
1 FRONT PANEL 12 SWING MOTOR
2 AIR FILTER 13 SWING MOTOR BRACKET
3 DISCHARGE HOUSING A 14 PANEL COVER
4 METAL LOUVER A 15 FIX PLATE
5 DISCHARGE HOUSING C 16 AIR INTAKE GRILLE
6 AIR SWING CAP 17 GRILLE LOCK
7 DISCHARGE HOUSING D 18 GRILLE LOCK BRACKET
8 LOUVER BRACKET 19 IONIZER FILTER FRAME
9 CRANK SHAFT 20 IONIZER FILTER
10 CRANK CONNECTOR 21 REMOTE CONTROL
11 CRANK CROSS 22 CARD REMOTE CONTROL
92
