Service Manual SM-MDS_(ii) 95

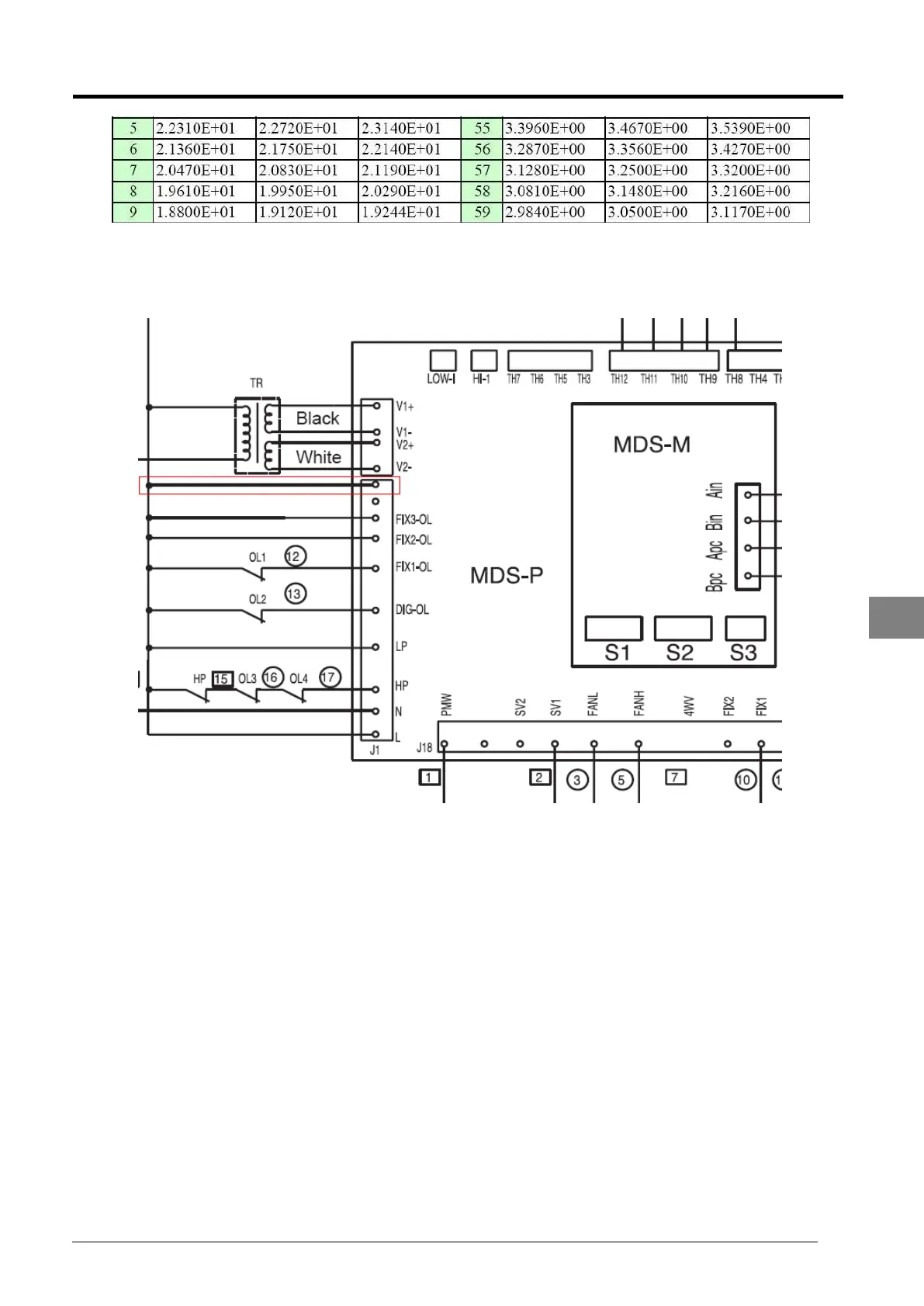

7.6 Hardware Configuration for 5MDS Outdoor
Remark: The marked wire should be connected only for R410A MDS model on outdoor MDS-M PCB.
