Service Manual SM-MDS_(ii) 7
2.1 MDS Outdoor System and Control

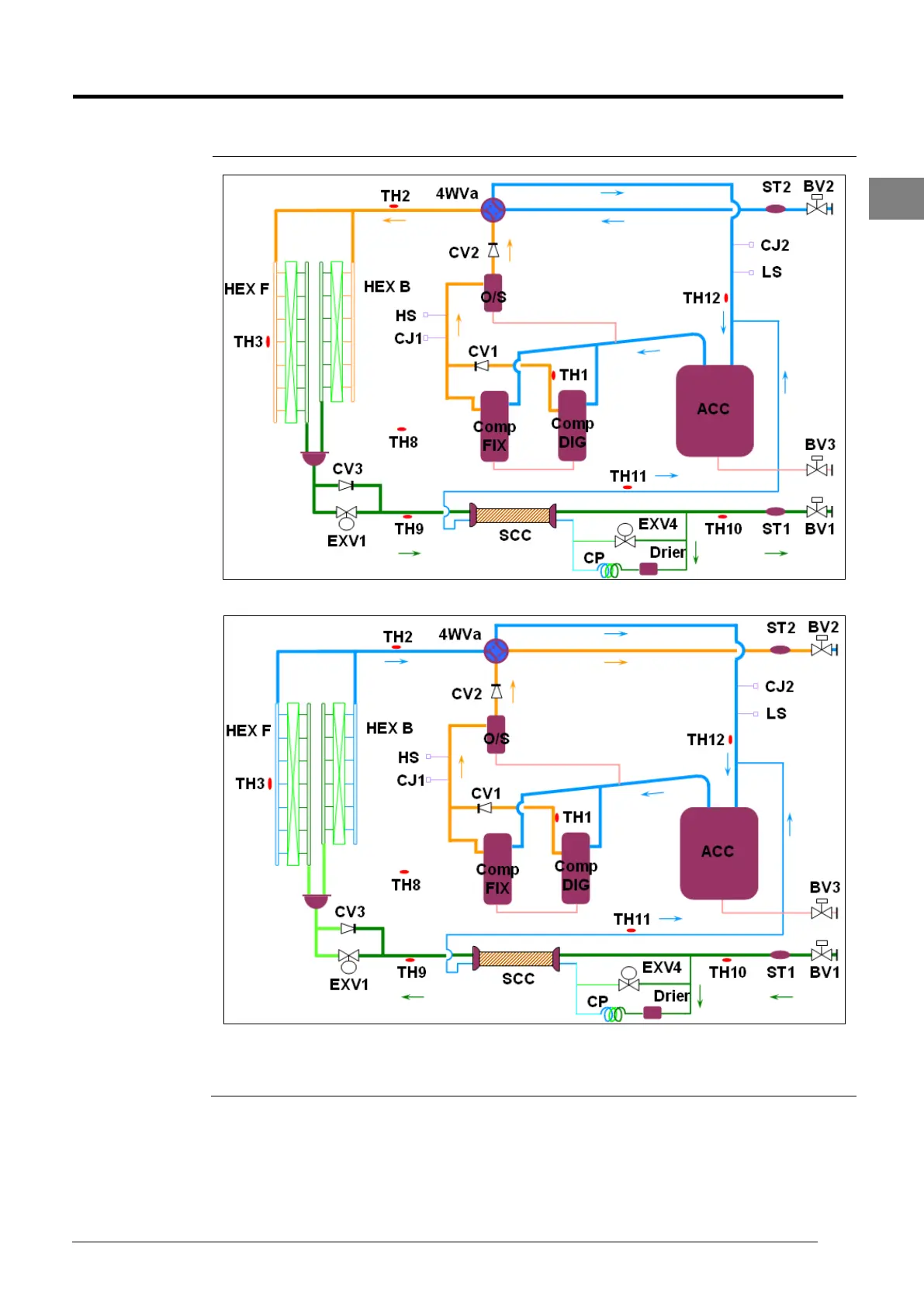

General Circuit
Diagram
General outdoor circuit diagram for cooling mode
General outdoor circuit diagram for heating mode
Note: For more detailed refrigerant circuit diagram, please refer to Appendix 7.13.
