IM 812 / Page 3 of 24

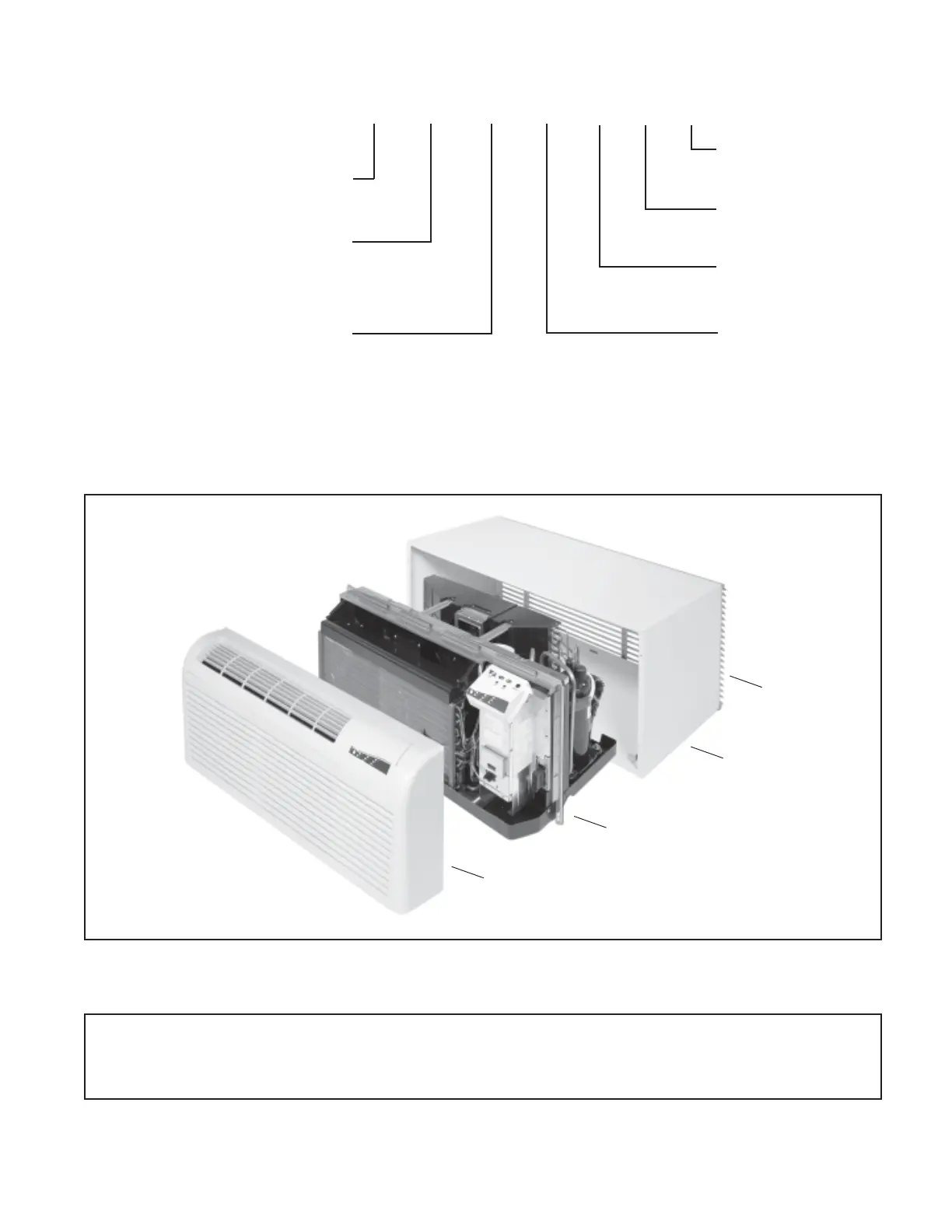

Figure 1. Exploded View of Complete Unit (Shown without subbase or power cord)
Louver
Wall Sleeve
Chassis
Front Panel
Product Nomenclature
PTAC : Packaged Terminal Air-Conditioner
PTHP : Packaged Terminal Heat-Pump
07 = 7,000 Btuh Nominal Cooling Capacity
09 = 9,000 Btuh Nominal Cooling Capacity
12 = 12,000 Btuh Nominal Cooling Capacity
15 = 15,000 Btuh Nominal Cooling Capacity
PTAC 07 B 208 KX B A*
B = Vintage B
208 = 208/230v
265 = 265v
B = B Control
C = C Control
KX = 208/230v
MX = 265v
A = Universal Heater
B = Fixed Heater
* Fixed heater is 2.9/3.5 Kw, 208/230V only, with factory installed 20 amp power cord - available on unit size 09 and 012 only.
Universal heater is nominal 2, 3, or 5 Kw (or no heat for cooling only applications), determined by power cord selection. See
Table 2, page 15.
Now that you have made an investment in modern, efficient McQuay
®
/Remington
®
equipment, its care and
operation should be a high priority. For training information on all McQuay HVAC products, please visit us at
www.mcquay.com and click on Training or phone 540-248-0711 and ask for the Training Department.
