McQuay SWP 095 User Manual

IM708 11

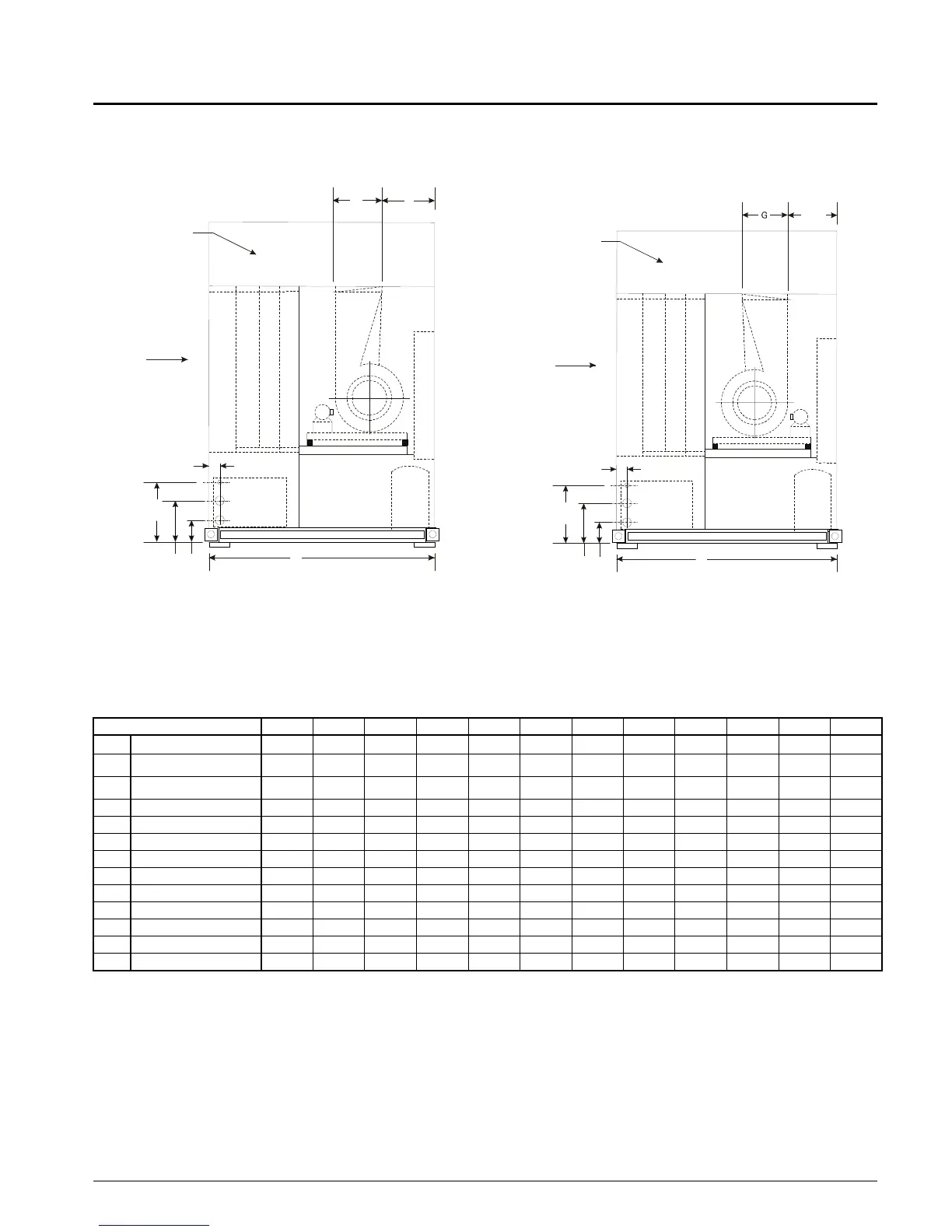

Dimensional Data
Figure 11. Left Side Front (CW) Discharge with 0ptional
Multi-Directional Plenum
Figure 12. Left Side Back (CCW) Discharge with
0ptional Multi-Directional Plenum
Note: Select unit arrangement on the unit selection.
Plenum can be shipped separately. Please indicate on the unit submittal. Indicate size and location of plenum openings on the unit submittal. All open-
ings are on plenum centerline. For additional information refer to plenum certified drawing .
8.75”
14.75”
19.0"
A
K x L Return Air
Filter Section
Economizer
Evaporator
Heater
Electrical Panel
A21
G
J
(Optional)
Multi-Directional
Plenum
(See Notes)
3.25”
Outlet
Inlet
8.75”
14.75”
19.0"
A
K x L Return Air
Filter Section
Economizer
Evaporator
Heater
Electrical Panel
A22
(Optional)
Multi-Directional
Plenum
(See Notes)
3.25”
Outlet
Inlet
9.63"
(18-95)
10.31
(105)
Table 4:
BASIC UNIT 018 023 028 035 040 045 055 065 070 080 095 105
A
Depth
a b
72.00 72.00 72.00 72.00 72.00 81.00 81.00 81.00 81.00 84.00 84.00 96.00
B
Length
a b
84.00 84.00 84.00 100.00 100.00 120.00 120.00 120.00 132.00 144.00 156.00 156.00
D
Height
a b
82.00 82.00 82.00 82.00 82.00 82.00 82.00 88.00 88.00 88.00 88.00 96.00
FFan Disch. 18.62 21.88 21.88 24.75 24.75 27.25 31.25 31.25 31.25 34.25 34.25 47.25
G Fan Disch. ^ Opening 15.88 18.88 18.88 24.75 24.75 27.25 31.25 31.25 31.25 34.25 34.25 34.94
H Fan Disch. Location 32.69 31.06 31.06 37.62 37.62 46.38 44.38 44.38 50.38 54.88 60.88 54.40
J Fan Disch. Location 22.50 18.81 18.81 20.12 20.12 21.06 21.32 21.32 21.32 23.82 23.82 33.46
K Return Opening Height 41.44 41.44 41.44 51.44 51.44 51.44 51.44 62.20 62.20 62.20 62.20 70.20
L Return Opening Length 80.00 80.00 80.00 96.00 96.00 116.00 116.00 116.00 128.00 140.00 152.00 152.00
M Base of Return Opening 28.62 28.62 28.62 28.62 28.62 28.62 28.62 23.87 23.87 23.87 23.87 23.87
N Water Out/In (ODS) 2-1/8 2-1/8 2-1/8 2-5/8 2-5/8 2-5/8 3-1/8 3-1/8 3-1/8 3-1/8 3-1/8 3-1/8
P 1 Row HW Donn (ODS) 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 2-1/8 2-1/8 2-1/8 2-1/8
P 2 Row HW Conn (ODS) 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 2-1/8 2-1/8 2-1/8 2-1/8 - - -
a. Dimensions do not include handle, latch or fastener extensions.
b. For shipping dimensions add 4" (102mm) to depth, 8" (204mm) to length, and 4" (102mm) to height.
