Unit State
The Unit will always be in one of three states. These states are Off, Auto, and Pumpdown.
Transitions between these states are shown in the following diagram.
T1: Off to Auto
Unit Enable = True AND
No Unit Alarm AND
IF Unit Mode = Cir 1 Available OR Cir 2 Available
T2: Auto to Pumpdown
Keypad Enable = Off OR
BAS Enable = Off OR
Remote Switch = Off OR
T3: Pumpdown to Off
Unit Alarm OR
Unit Switch Off OR
No Compressors Running
T4: Auto to Off
Unit Alarm OR
Unit Switch Off OR
No Compressors Running AND [Unit Mode = Ice AND Ice Delay Active] OR
No Compressors Running AND [No Circuit Available]
Off
Pumpdown Auto
T1
T4
T3
T2
Power On

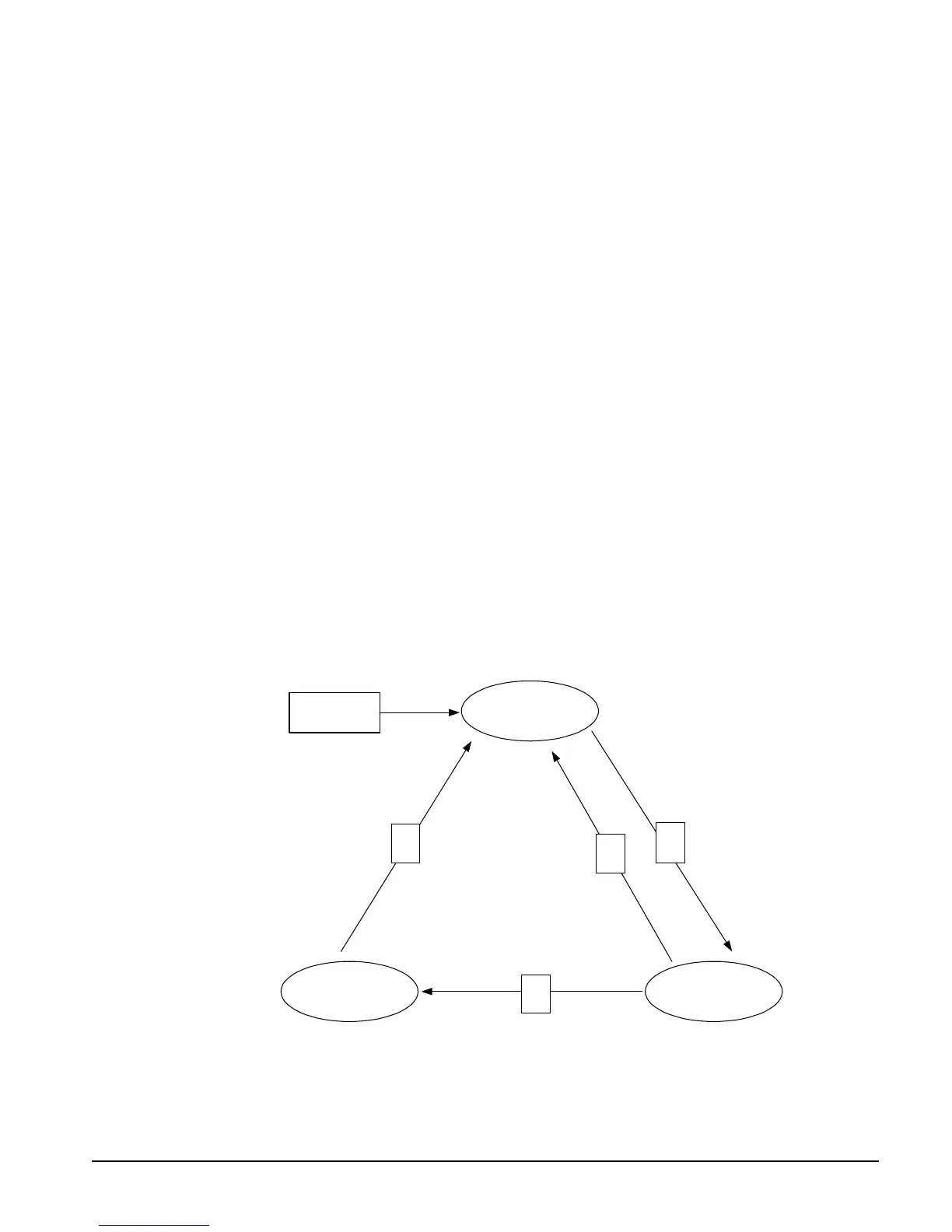

Unit State Diagram
