OMM TGZ-1 TGZ 040A through TGZ 190A 5

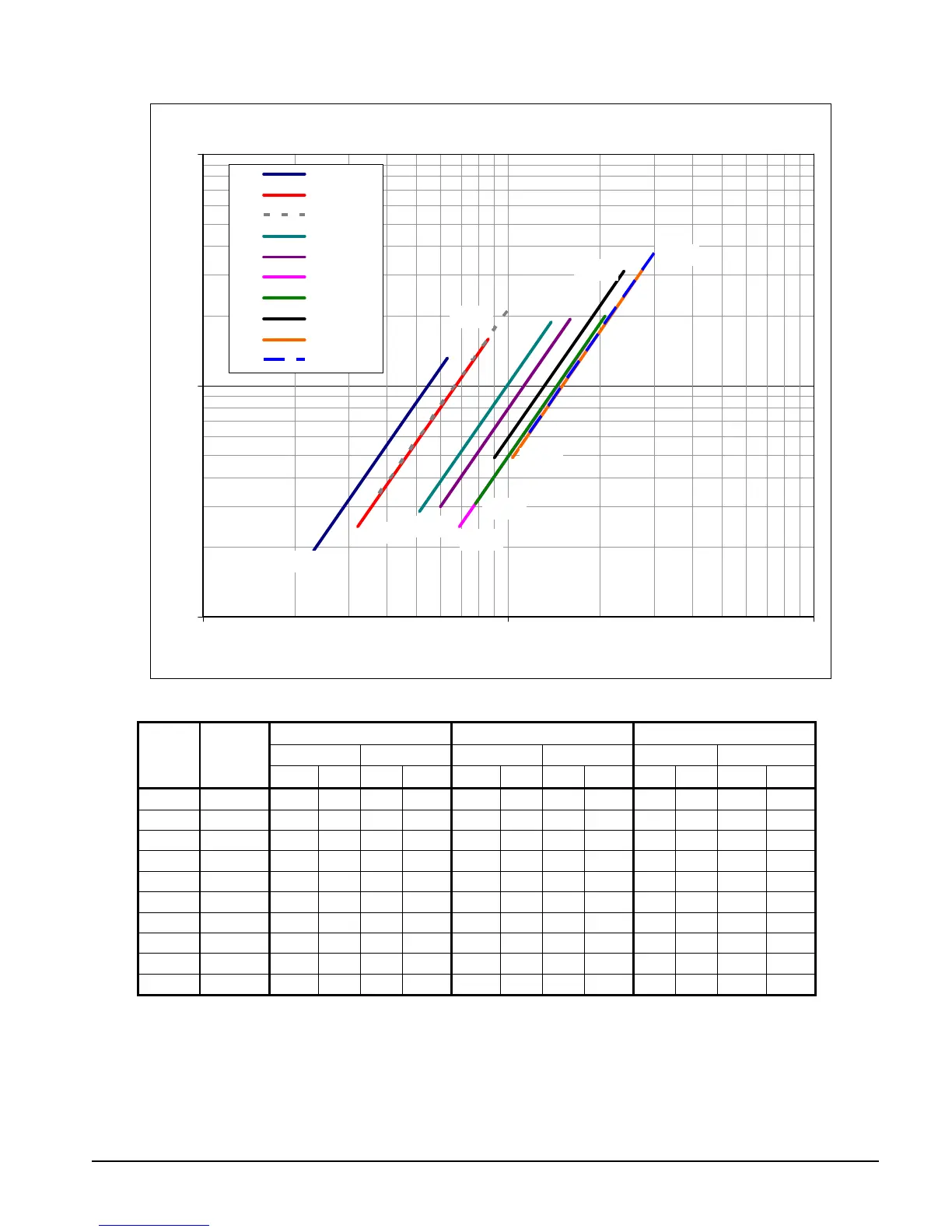

Figure 2, Standard Four-pass Condenser Pressure Drop
TGZ 4-Pass Condenser Water Pressure Drop
TGZ170
TGZ040
TGZ050
TGZ060
TGZ080
TGZ100
TGZ110
TGZ120
TGZ150
TGZ190
1
10
100
10 100 1000
Flow Rate (gpm)
Dp (ft)
TGZ040
TGZ050
TGZ060
TGZ080
TGZ100
TGZ110
TGZ120
TGZ150
TGZ170
TGZ190
MINIMUM FLOW RATE NOMINAL FLOW RATE MAXIMUM FLOW RATE
INCH-POUND S.I. INCH-POUND S.I. INCH-POUND S.I.
TGZ UNIT
MODEL
COND.
MODEL
GPM FT L/S KPA GPM FT L/S KPA GPM FT L/S KPA
TGZ040
C1010-62 23 1.93 1.45 5.77 47 7.5 3.0 22.4 63 13.1 4.0 39.1
TGZ050
C1010-62 32 2.44 2.02 7.29 64 9.1 4.0 27.2 86 16.0 5.4 47.7
TGZ060
C1010-76 38 3.40 2.40 10.16 77 13.0 4.9 38.9 103 22.6 6.5 67.5
TGZ080
C1410-112 51 2.84 3.22 8.49 103 10.8 6.5 32.3 138 18.8 8.7 56.3
TGZ100
C1410-128 60 3.00 3.79 8.97 120 11.2 7.6 33.5 160 19.3 10.1 57.8
TGZ110
C1610-164 69 2.44 4.35 7.29 138 9.1 8.7 27.2 184 15.7 11.6 47.0
TGZ120
C1610-164 78 3.08 4.92 9.21 156 11.5 9.8 34.4 208 19.9 13.1 59.4
TGZ150
C1612-164 90 4.85 5.68 14.50 180 18.1 11.4 54.1 240 31.3 15.1 93.4
TGZ170
C1612-184 103 4.89 6.50 14.60 207 18.4 13.1 55.0 276 31.8 17.4 95.0
TGZ190
C1612-184 117 6.24 7.38 18.66 234 23.3 14.8 69.6 312 40.2 19.7 120.3
