10

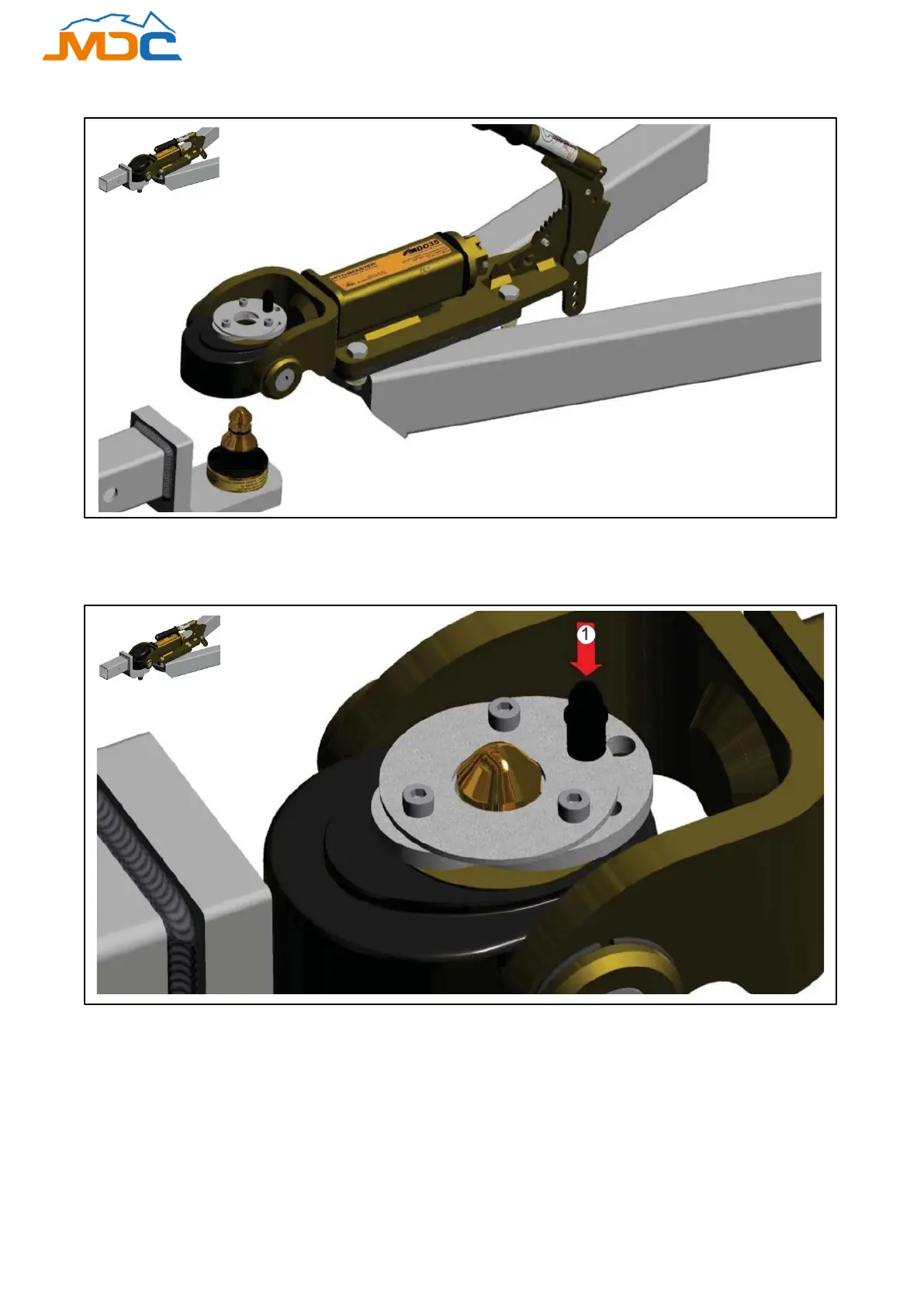

STEP 2
Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris on
it. Locking plate should be in unlocked position as shown. Lower the coupling onto the tow pin.
STEP 3
Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking
mechanism (see below). Press the button (1) to release the locking mechanism there will be an audible
locking noise at which point the mechanism will return to the initial position as shown in step 1. Verify the pin is
correctly through the mechanism and assemble the cap. If the cap will not fit check the locking mechanism is
in the correct locked orientation.
