MDS E-PGM+ - Handler Connections: E-GANG; E-GANG Handler Interface Details

MDS
13
• Internal isolator
• Used the Handler 5V(3.3V) Power
• Output → Good, Fail indicate signal (active “L”)
• Input → Start Key (active “L”)

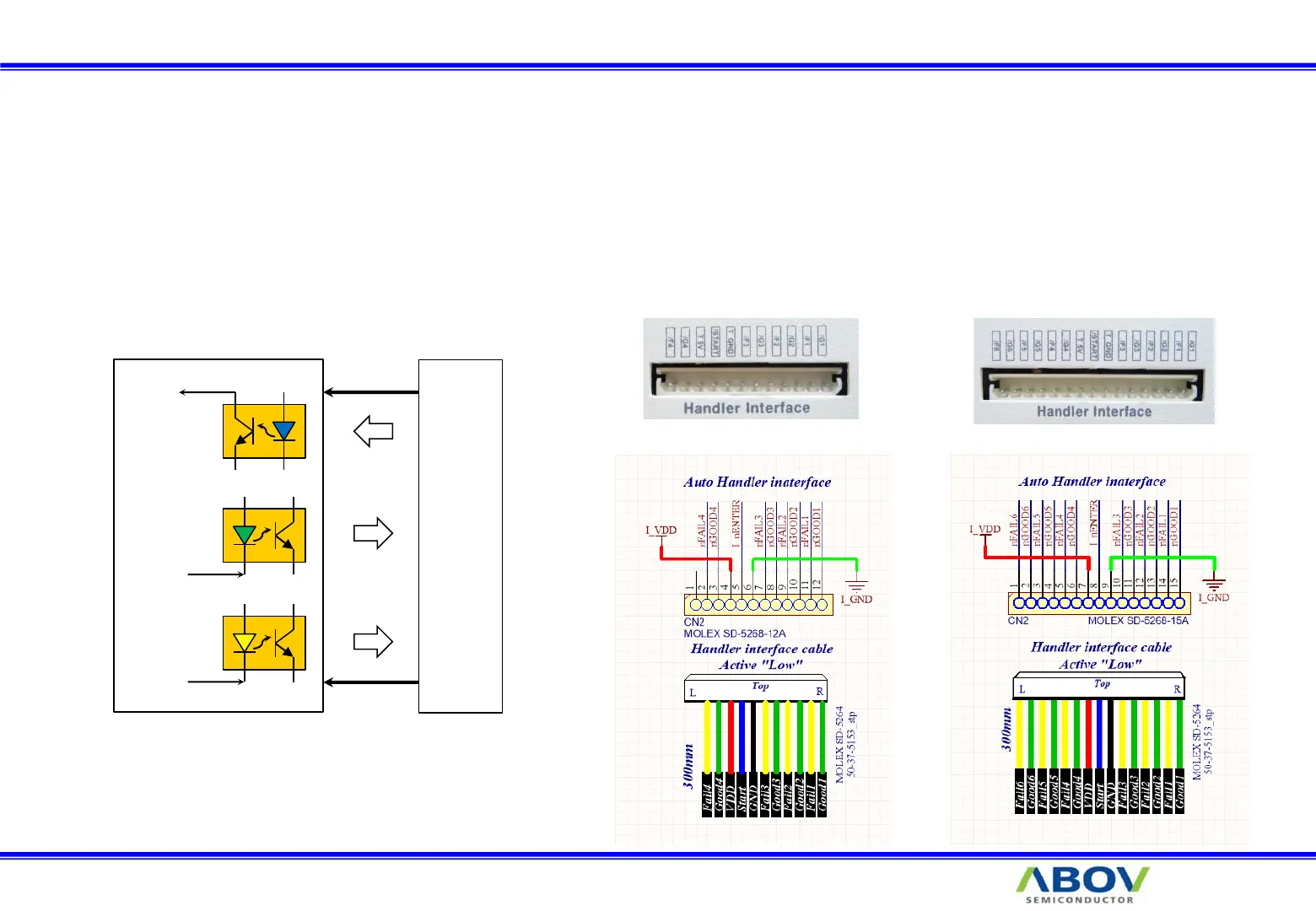

6-2. E-GANG4 / E-GANG6 handler connection
E-PGM+
GANG 4/6
Handler
+5V (3.3V)
GND
Common
1
1
