8-3. Info. : Connectors
2
4
6
8
10
1
3
5
7
9

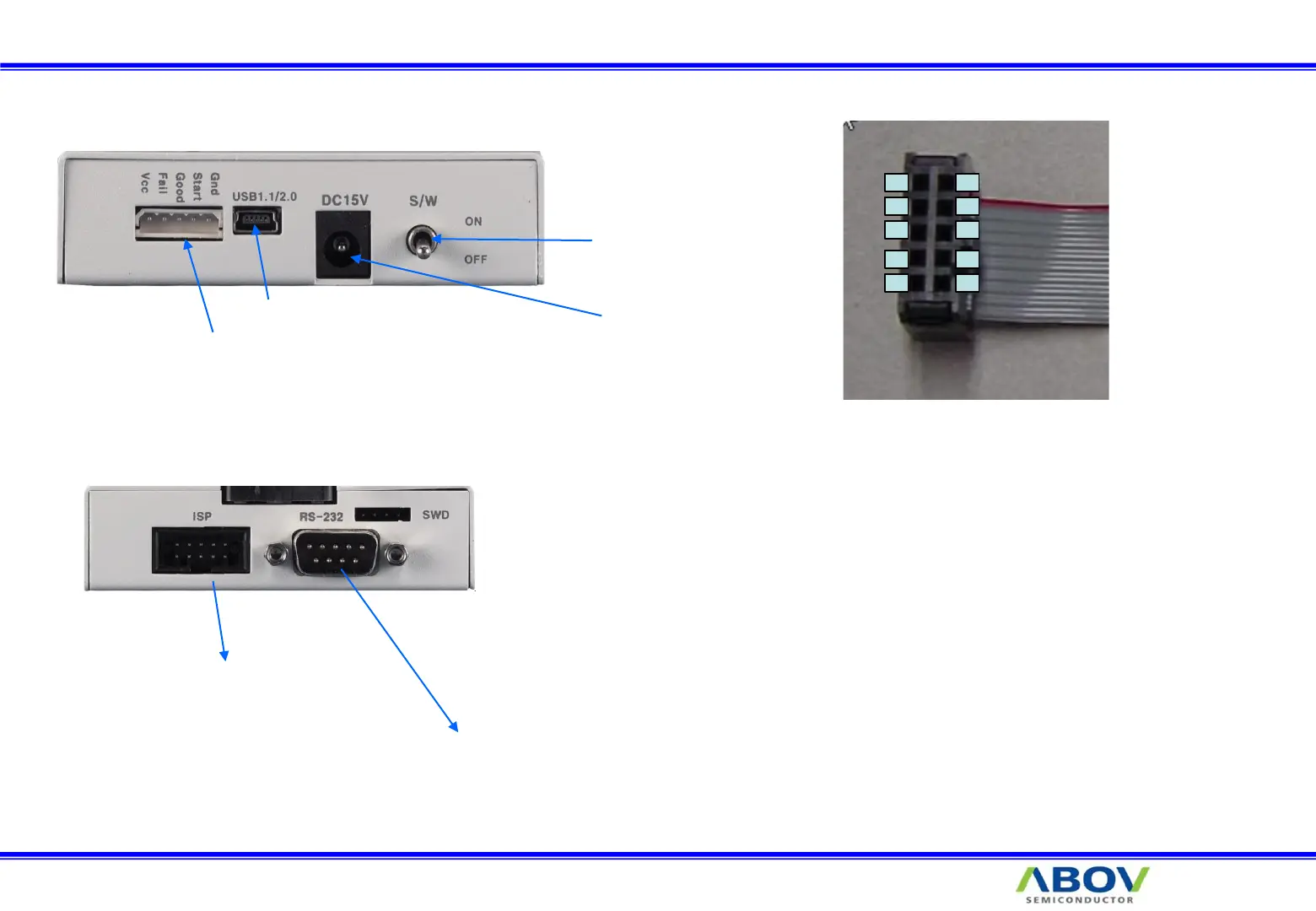

1. MCU RX
2. VDD
3. MCU TX
4. GND
5. Run Flag or Boot Pin
6. Serial Clock
7. GND
8. Serial Data
9. N/A
10. VPP or Reset Pin
Connect USB mini type cable.
Power switch
Power DC 15V
Enter Key Connector.
To connect with the auto-handler
For ISP(In-System-Programming)
For Barcode reader( E-PGM+ only)
