DC5xD MK3 GENSET CONTROLLER USER MANUAL
18

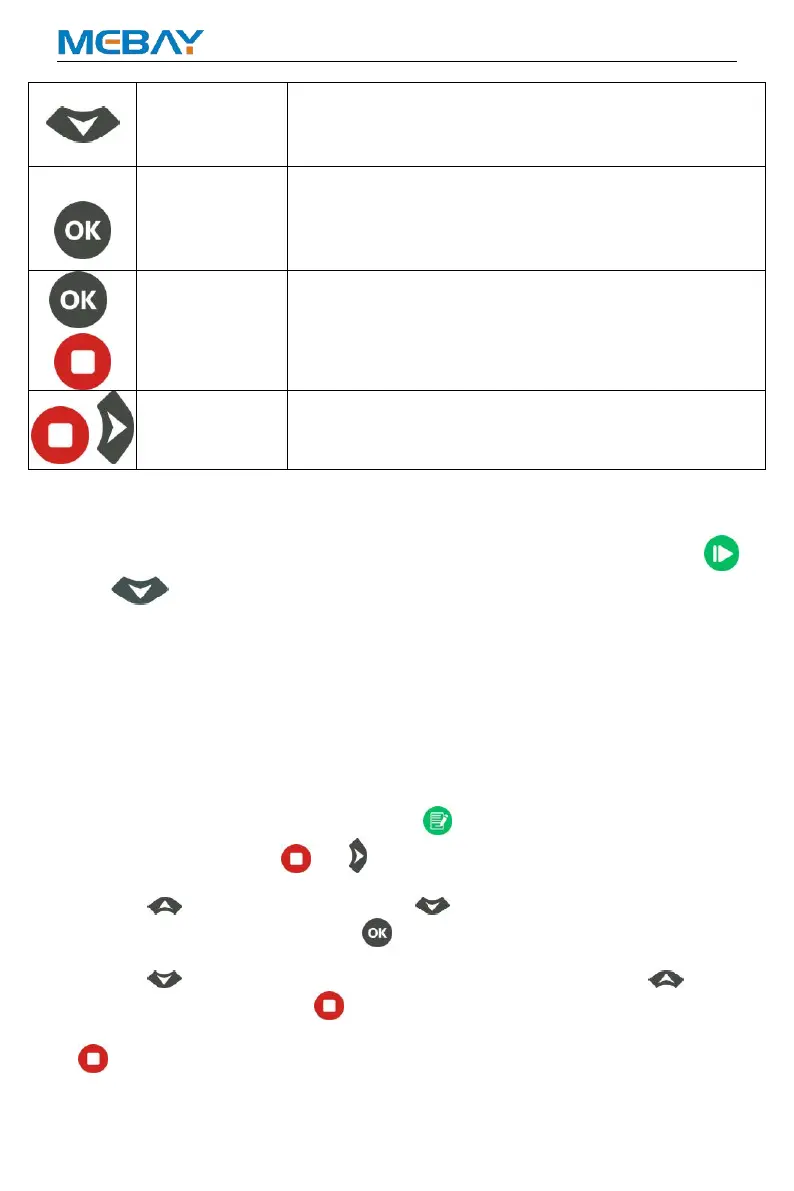

Under display mode, parts of the page can move down.
Under edition mode, pressing this key to move the digit
or decrease the numbers.
Under records mode, pressing this key to move the digit.
Confirm the change under edition mode.
Page exited under records checking mode.
Black UI and white UI can be switched when Pressing.
In standby state, press for 3 seconds to enter the
parameter setting mode.
Pressing OK and STOP simultaneously to come into
setting mode
DC52D MK3
Alarm
Records checking
Pressing STOP and RIGHT to check the records and
any buttons pressed to exit from the page.
Engine flywheel teeth automatic adjustment
1)Crank disconnect must be set to include both "speed" and "frequency" options.
2)When the generator frequency and engine speed are not zero, press
and for more than 0.5 seconds, the controller will automatically calculate
and save the number of flywheel teeth according to the generation frequency and
generator poles.
3)After calculating and saving the number of flywheel teeth successfully, the
controller shows: " Flywheel xxx teeth, saved successfully!"
Alarm records checking
DC5XD MK3 controller can save 14 groups of alarm records which contains time,
gens parameter, engine parameter and so on.How to check the alarm records:
1)Enter alarm record page:
a) DC50D MK3: under stop mode, press to come into alarm records page;
b) DC52D MK3: press and simultaneously to come into alarm records
page;
2)Press to turn upper digit and press to turn lower digit in order to
choose the record you need. Press to confirm the record and come into
history records checking page.
3)Press to turn lower records under records checking page. Press to
turn upper records and press to revert back to alarm history records page.
4)Exit from records page: In the history records page and checking page, press
to exit;
