Slab Series - Service & Parts Manual
March 2022Section 10 - Maintenance
Calibration Instructions
The Platform Overload Sensing System may require calibration in the event of a malfunction or
after the replacement of an Overload System component. Proper and correct calibration of the
Overload system is critical for normal and trouble-free machine operation. Read and understand the
instructions before beginning the calibration process.
Calibrate Tilt Sensor
Park the machine on flat level surface.
Note: Calibrating the level sensor requires that the machine be
perfectly level on both the X and Y axis. An inclinometer
should be used when ensuring level. Machine power must
be on.
1.

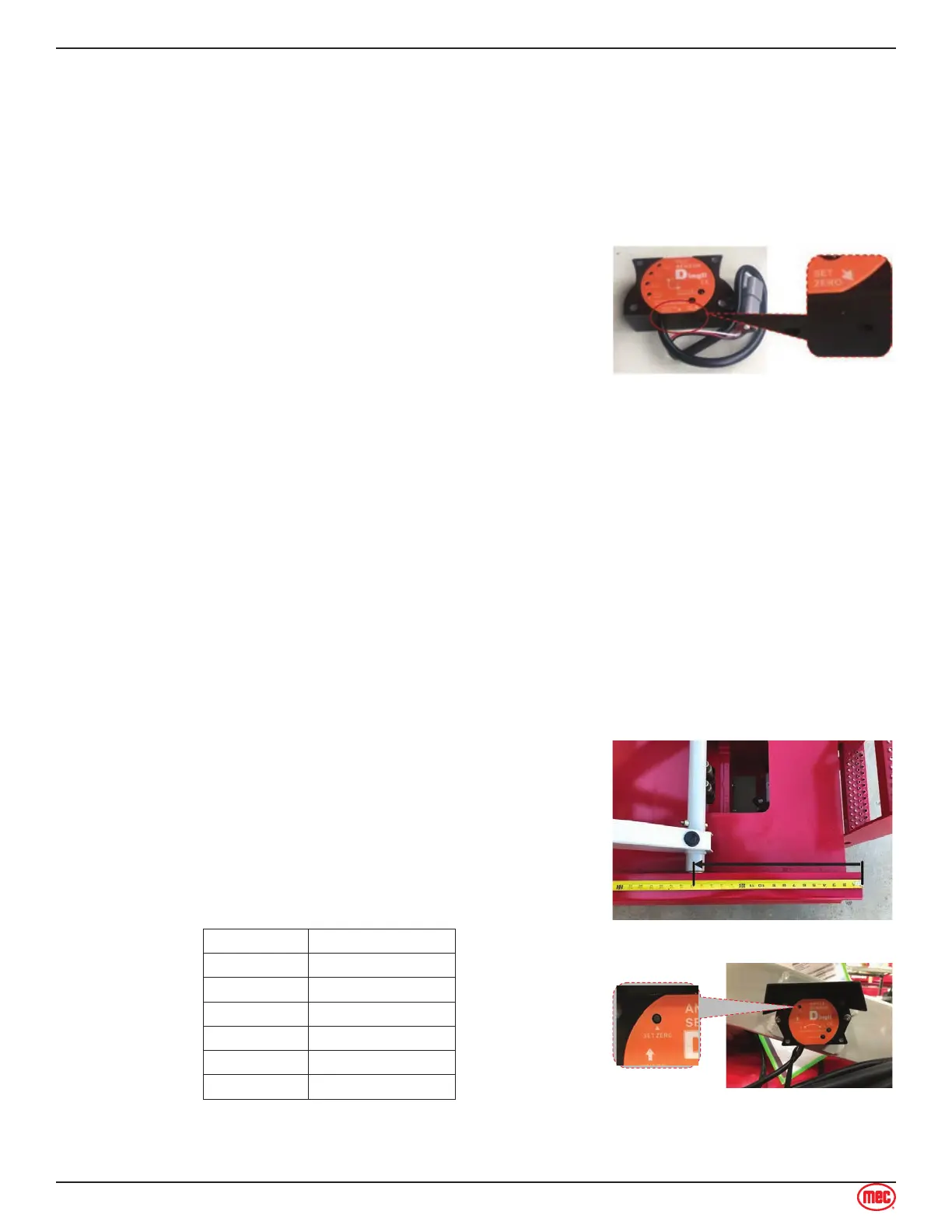

Using the diagram below, locate the “SET ZERO” button located on the side of the sensor.
Press and hold the “SET ZERO” button until the LEDs alternate red and green flashes. Release
the button
Press the “SET ZERO” button three times. The LEDs will turn off then only the green LED will
illuminate. Calibration is complete.
2.
3.
Calibrate Height Sensor
Note: Calibrate Overload System must be performed after calibrating height sensor to ensure proper
and trouble-free machine operation.
Refer to the diagram below. Elevate the platform until the round scissor tube is exactly as
the chart below specifies from the end of the slide channel, measuring on the top of the slide
channel.
1.
Referring to the diagram below, locate the height sensor,
located inside the scissor beams. Press and hold the “SET
ZERO” button until the two LEDs alternate red and green
flash alternately. Release the button.
Press the “SET ZERO” button three times. If done correctly,
the red light will flash followed by the green light flash
followed by the green light illuminating solid. HEIGHT
CALIBRATION COMPLETE.
MODEL DISTANCE
MICRO26 7 in / 178mm
1930SE 6.75 in / 171mm
2632SE 8.5 in / 216mm
3346SE 9 in / 229mm
4046SE 9.25 in / 235mm
4555SE 11.5 in / 292mm
2.
3.
