Mec 4046SE - HydraulC SchematC - 2632 SE, 3346 SE, 4046 SE, 4555 SE

Page 45 SE
AC
Slab Series - Service & Parts Manual
March 2022Section 14 - Schematics

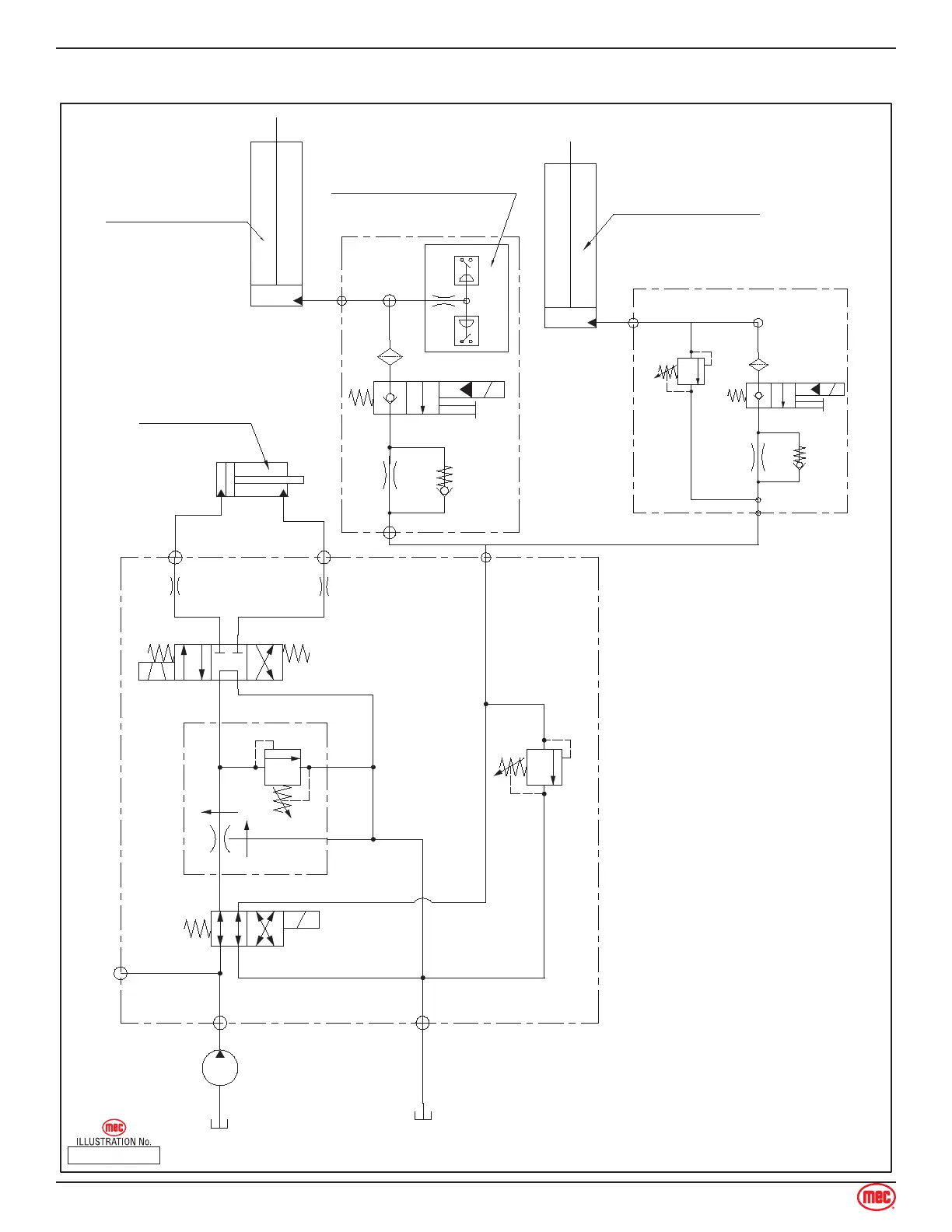

Hydraulic Schematic - 2632SE, 3346SE, 4046SE, 4555SE
ART_5140
2632SE, 3346SE, 4046SE, 4555SE HYDRAULIC SCHEMATIC
Platform Overload Sensor
Upper Lift Cylinder
Lower Lift Cylinder
Steer Cylinder
SV1
S1
S2
P T
M
RV1
ORF2
ORF1
FRRV1
SV2
L
CV3
SV5
L
RV5
CV4
SV5
L
