Page 17 SE
AC
Slab Series - Operator’s Manual
November 2022Section 7 - Operating Instructions & Functions Test
Functions Test
1. Select a test area that is rm, level and free of obstruction.
2. Be sure the battery pack is connected.
3. Turn the main power switch to ON (pulled out) position.
At the Ground Controls
4. Pull or turn the red Emergency Stop button clockwise to the on position at both the ground and
platform controls.
5. Turn the Key Switch to ground control.

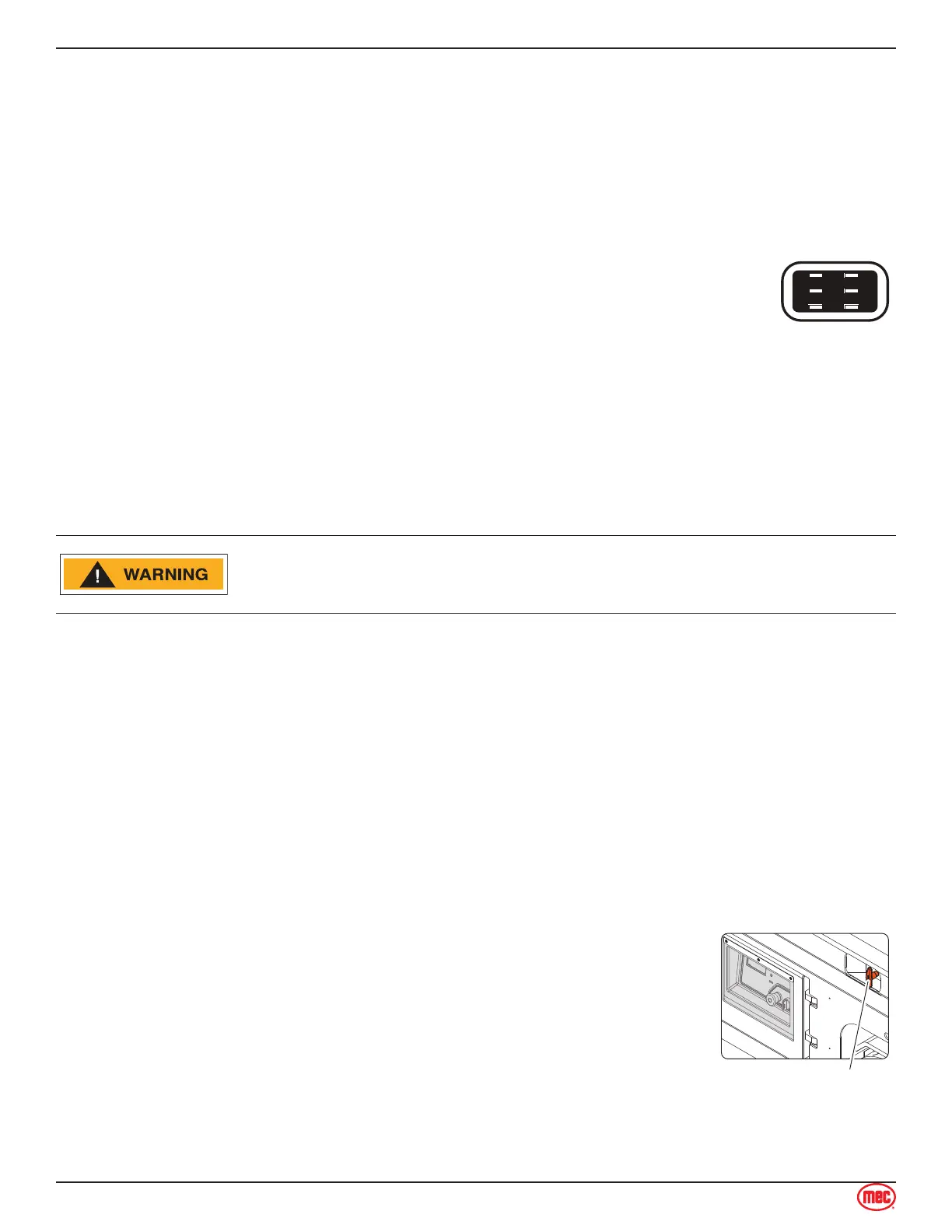

6. Observe the diagnostic LED readout on the ECU window located at the Platform
Controls.
• Result: The LED should look similar to the picture right.
Test Emergency Stop
7. Push in the ground red Emergency Stop button to the o position.
• Result: No functions should operate.
8. Turn the red Emergency Stop button clockwise to the on position.
Test Up/Down Functions
Check the area above and around the machine for obstructions and
electrical power lines before operating the machine.
A buzzer with dierent sound frequency is controlled by the central system. The descent alarm
sounds at 60 beeps per minute. The alarm that goes o when the machine is not level or is the
pothole guards have not deployed sounds at 150 beeps per minute.
9. At the Lower Controls station, turn the Key Switch to o or platform position.
10. At the Lower Controls station, push up and hold the platform up / down switch.
• Result: No function should operate.
11. Turn the Key Switch to ground control position.
12. At the Lower Controls station, push up and hold the Platform Up switch.
• Result: The platform should raise.
13. Push down and hold the Platform Down switch.
• Result: The platform should lower to end. The descent alarm should sound while the
platform is lowering.
14. Activate the up function and raise the platform approximately 2 ft / 60 cm.
15. Pull the Emergency Lowering Handle.
• Result: The platform should lower. The descent alarm will not sound.
Emergency
ART_5884
At the Platform Controls
16. Turn the Key Switch to platform control.
