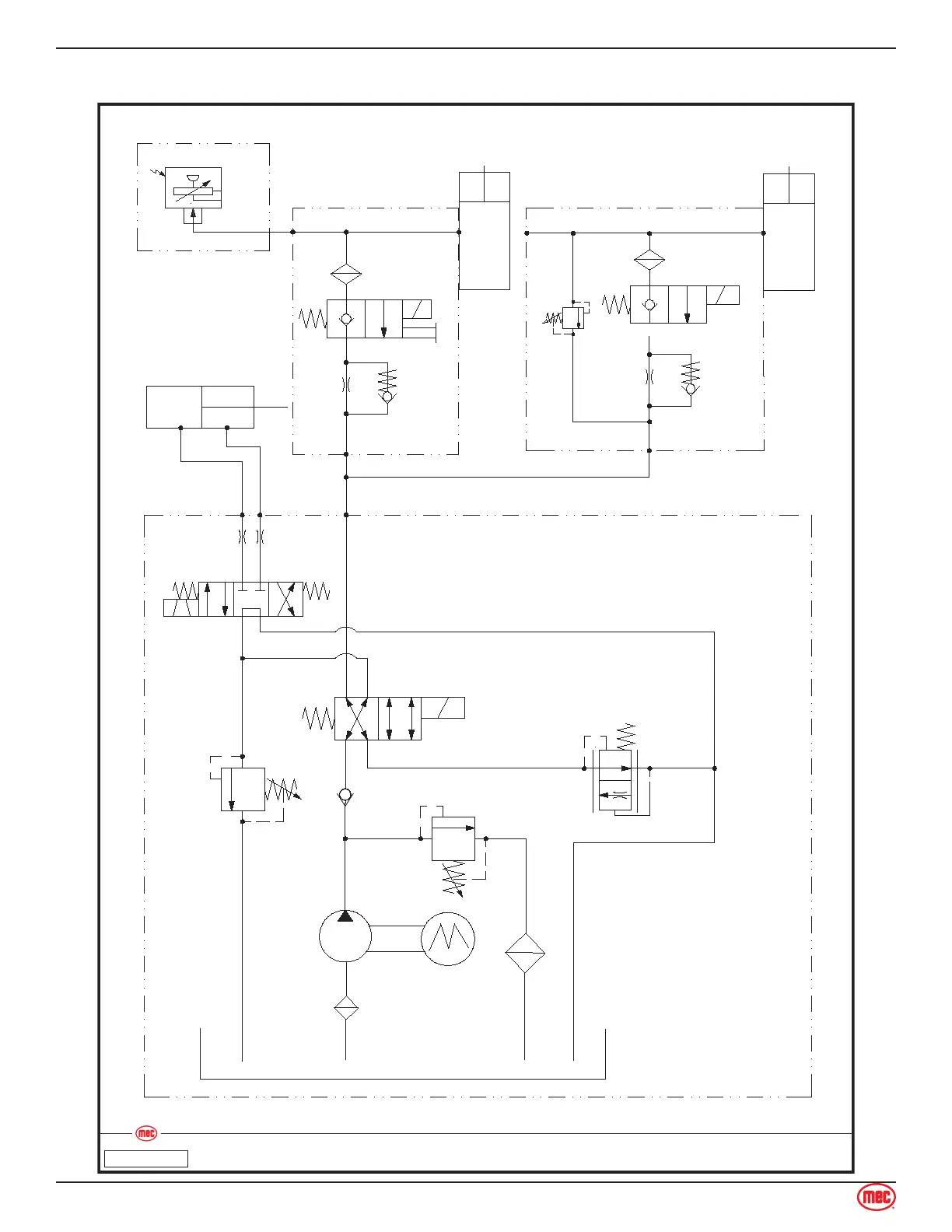

Hydraulic Schematic
Hydraulic SchematicMicro 19
Art_5537
ILLUSTRATION No.
Flat Overload (Option)
Lift Cylinder
Upper Lift Cylinder
Sensor
SCV3
RV3
SCV4
150 Bar
Steer Cylinder
1.5mm
0.7mm
CV2
CV2
Lower valve:
5805-0811
Lower valve:
5805-0812
IN
IN
A
B
C
1.0mm
1.0mm
SCV2
SCV1
RV2
100 Bar
RPCV1
CV1
RV1
160 Bar
Pump Unit:
1136-40B
Pump Unit Parameter:
Motor: 24V, 2200W, 2800rpm
Pump: Displacement 2.0cc/r
Tank: 4L
