Instruction Manual DSR digital regulator - rev. 05 - pag. 5

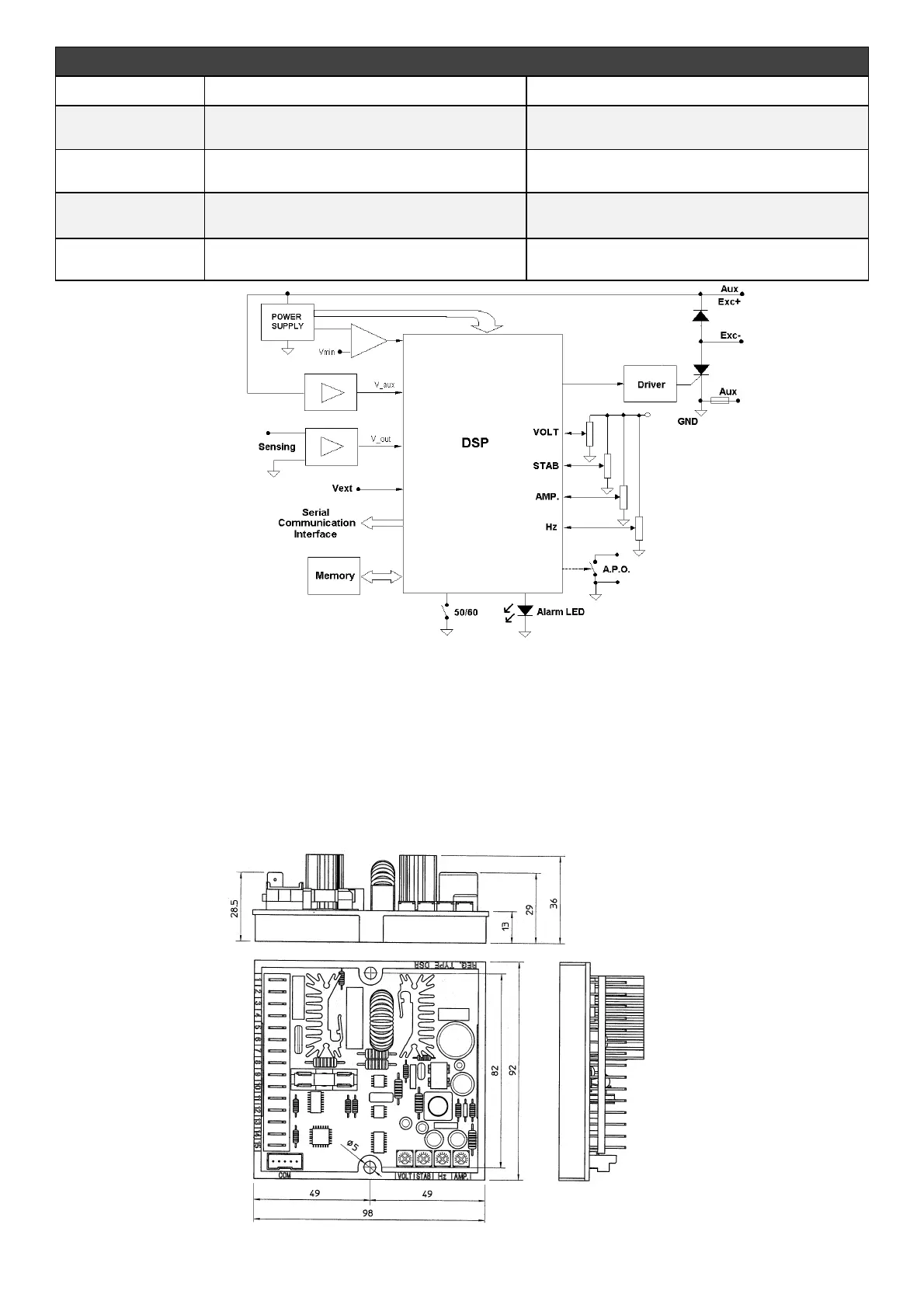

4. Block diagram
INSTALLATION
Upon receipt of the digital regulator, perform a visual inspection to ensure that no damage has been su-
stained during transportation and movement of the equipment. In the event of damage, advise the shipper,
the insurance company, the seller or Mecc Alte immediately. If the regulator is not installed immediately,
store it in its original packaging in a dust and humidity-free environment.
The regulator is normally installed in the generator terminal box. It is fixed with two M4x20 or M4x25
screws and must be installed in a location where the temperature does not exceed the environmental con-
ditions foreseen.
1. Overall dimensions drawings
dimensioni in mm
Name Function Notes
VOLT Voltage Calibration
From 70Vac to 140Vac or from 140Vac to
280Vac, see paragraph “Setting the voltage”
STAB Calibration of dynamic response
Adjustment of proportional gain, see paragraph
on “Stability”
Hz
Calibration of underspeed protection
intervention threshold
Variation up to -20% with respect to the nominal
speed value set in jumper/parameter 50/60.
AMP
Calibration of excitation overcurrent
protection
See paragraph “Calibration of excitation overcurrent
protection”
TABLE 2 : TRIMMERS
fig. 1
fig. 2
