MechMaxx P4206 - Assembly; Axle; Wheels; Tower Bar Mount

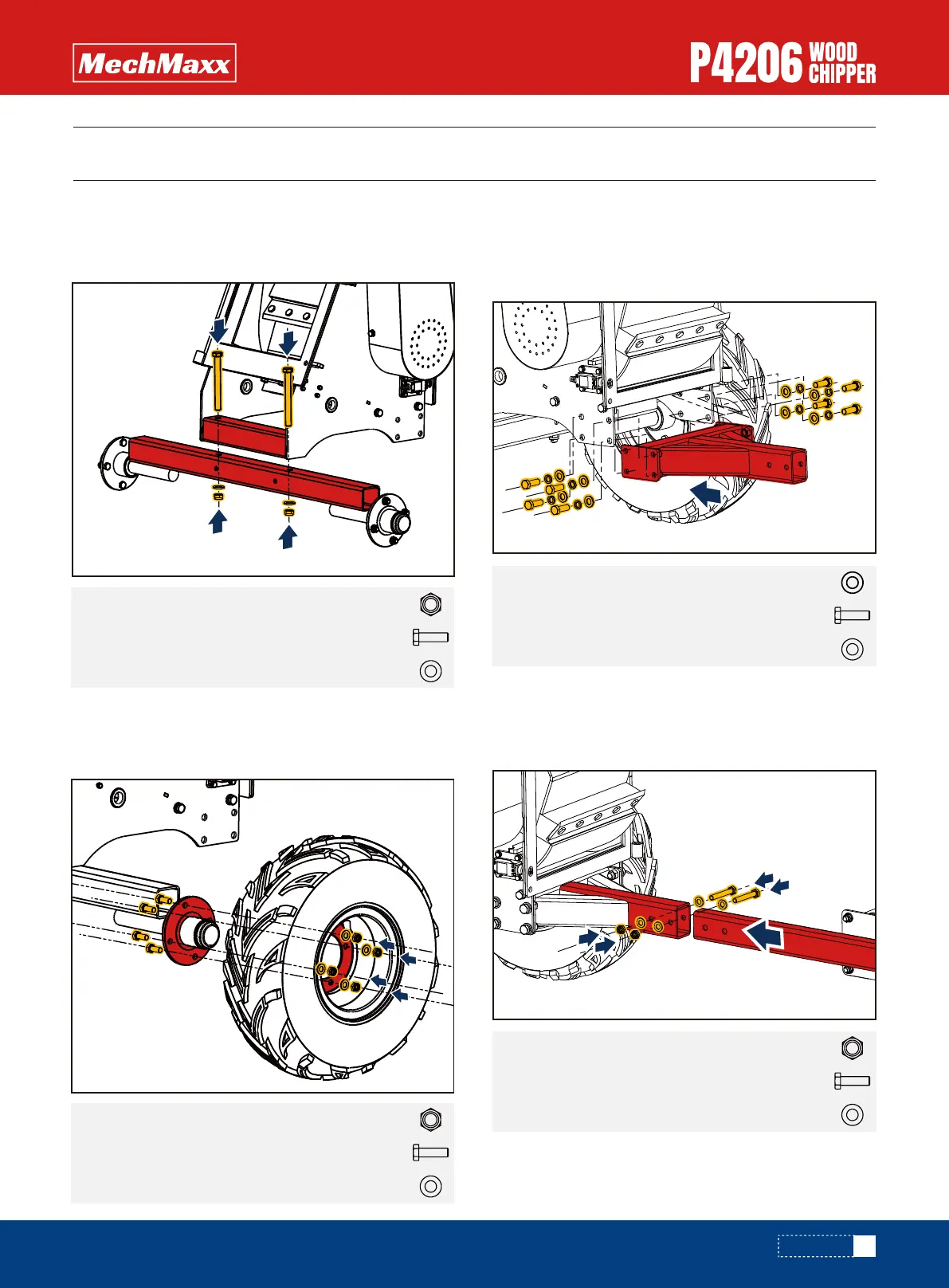

ASSEMBLY
ASSEMBLY
Attach the wheel axle to the cutter base with M14x140
hex bolts,flat washer 14 and M14 lock nuts.(See Figure 1)
Attach the wheels to the wheel axles with M10x25 hex
bolts,M10 lock nuts and flat washer10(See Figure 2)
Attach the tower bar mount to the base frame with
M12x35 hex bolts, Spring Washer 12 and flat washer 12 (
See Figure 3)
11
www. mechmaxx.com
Hex lock nut M142X
Hex lock nut M108X
Hex bolt M14 X 140mm
Flat washer 14
2X
2X
Hex bolt M12 X 35mm
Flat washer 12
8X
8X
Hex lock nut M102X
Hex bolt M10 X 70mm
Flat washer 10
2X
4X
Hex bolt M10 X 25mm
Flat washer 10
8X
8X
Figure 1
Figure 2
Figure 3
Figure 4
Spring washer 128X
Axle
Wheels
Tower bar mount
Tow bar and Guiding wheel
Attach the tow bar to the tower bar mounts with M10x70
hex bolts,M10 lock nuts and flat washer10 (See Figure 4)
