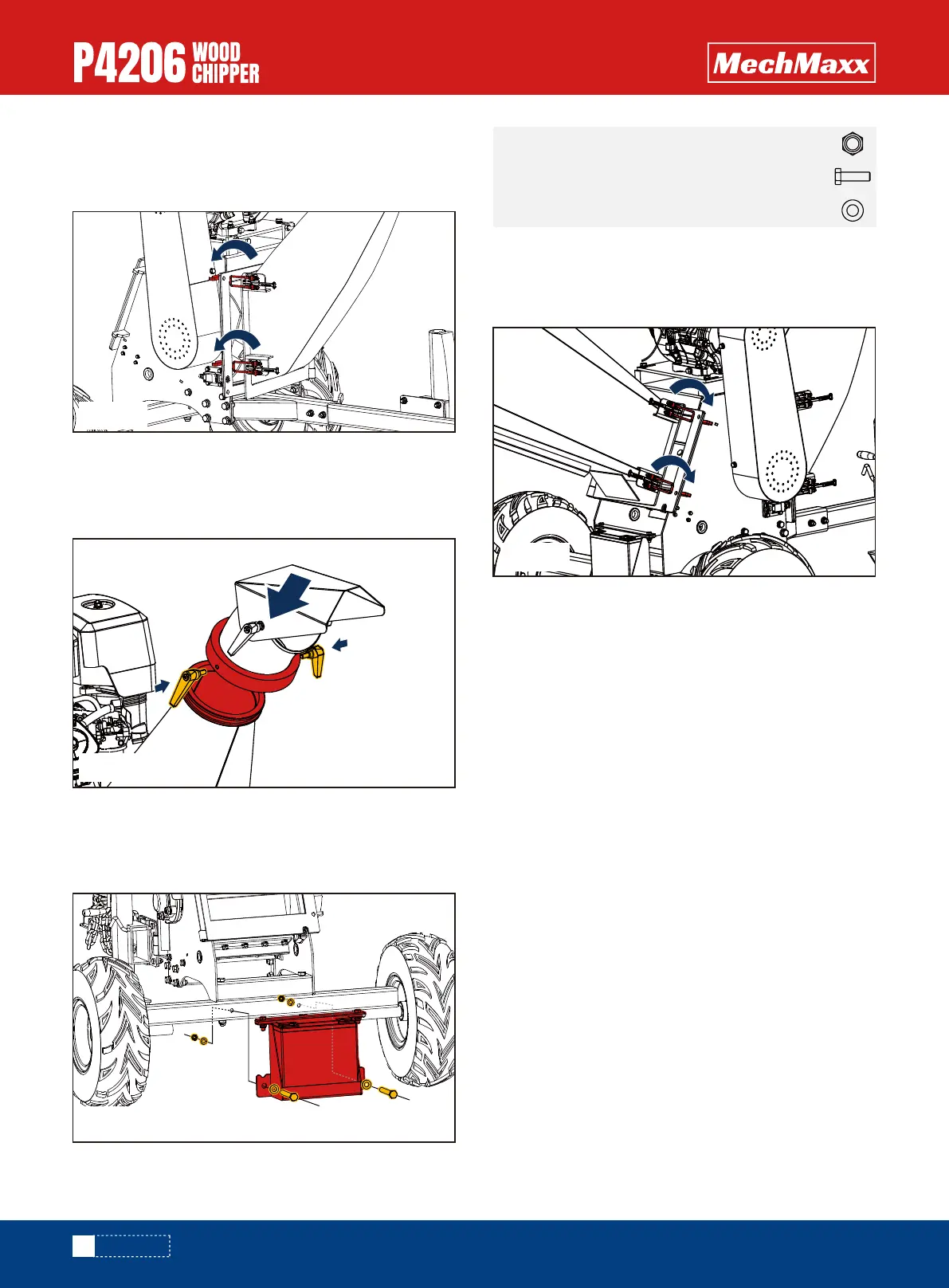

Attach the lower expulsion chute to the cutter base with
two lock catches. (See Figure 5)
Attach the feeding chute to the cutter base with two lock
catches. (See Figure 8)
Attach the upper expulsion chute to the lower expulsion
chute with adjustable locking handle.(See Figure 6)
Attach the battery box to the wheel axle with M10x80 hex
bolts,M10 lock nuts and flat washer 10.(See Figure 7)
ASSEMBLY
Hex lock nut M102X
Hex bolt M10 X 80mm
Flat washer 10
2X
4X
Lower expulsion chute
360 degree upper expulsion chute
Battery
In-feeding chute
Figure 5
Figure 6
Figure 8
Figure 7
To Next Page
