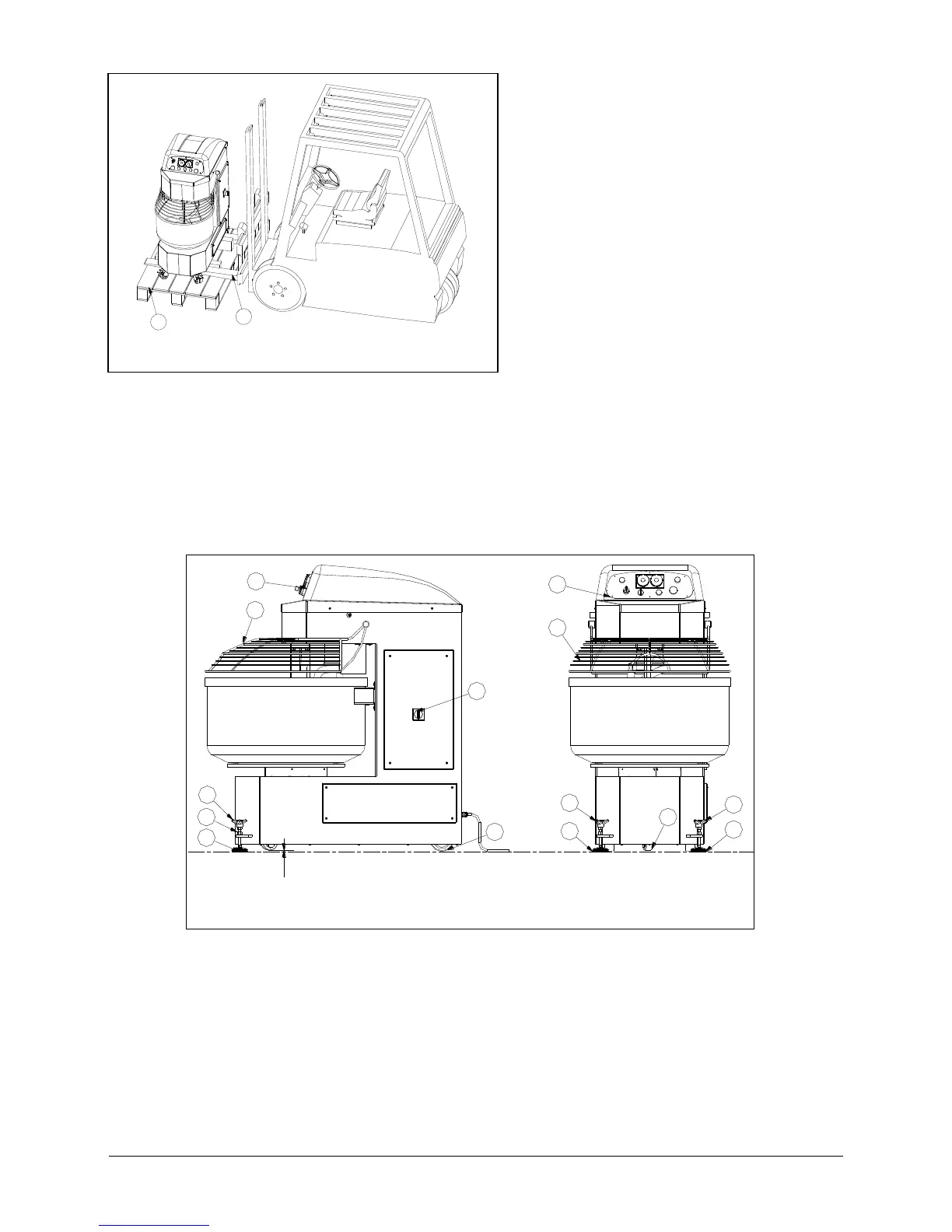

Pict. 2.2
Remove the docking device Pos. 2, introduce
the lifting forks Pos.4 as shown in Pict. 2.2 and
carefully lift the machine.
2.3 ADJUSTMENTS
After positioning in the selected area, adjust the front leveling feet Pos.51 Pict.2.3 with the3 lobe handwheel
Pos. 53 to get perfect leveling and then lock it by tightening the nut Pos. 52.
If the machine is unstable due to floor irregularity, adjust the support feet or wheels by inserting rubber pieces.
2.4 ELECTRICAL CONNECTIONS
The machine is equipped with connecting cable located on the back of the machine. It’s essential to mount a
normalised and polarised plug at the end of the cable.
1
51
53
52
4
2
3
2
4
51
54
53
51
53
7
4
1
Pict.2.3 : Installation
