Panel & Display Description

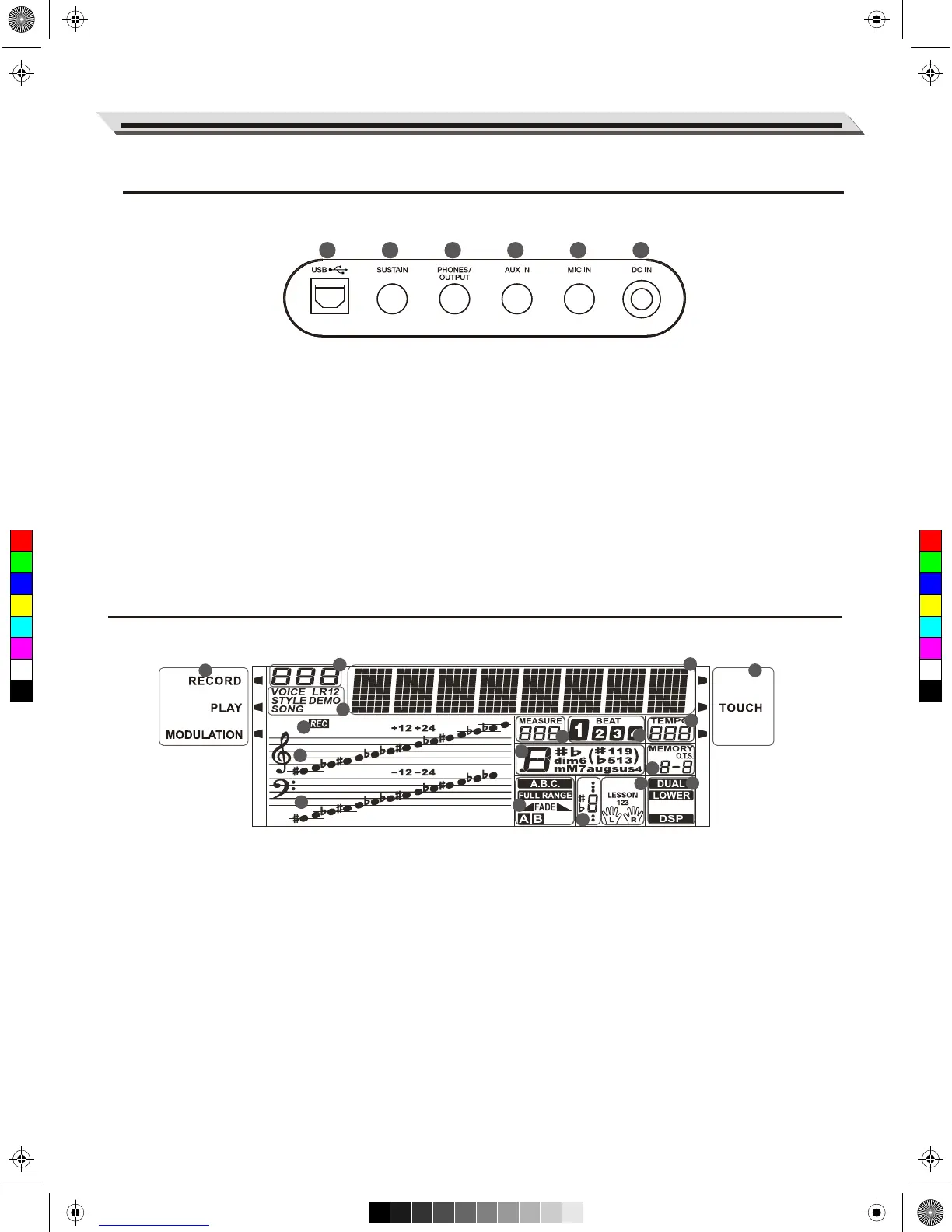

Rear Panel
1. RECORD/PLAY/MODULATION
2. NUMBER
3. VOICE/STYLE/DEMO/SONG
4. CHARACTER
5. ARP/ TOUCH/SUSTAIN
6. RECORD
7. TREBLE CLEF
8. BASS CLEF
9. MEASURE
10. BEAT
11. TEMPO
12. CHORD
13. MEMORY/O.T.S.
14. A.B.C./FULL RANGE/FADE/A/B
15. NOTE INDICATION
16. LESSON
17. DUAL/LOWER/DSP
30. USB Jack
Connect to a computer.
31. SUSTAIN Jack
Connect a sustain pedal.
32. PHONES/OUTPUT Jack
Connect a pair of headphones or an
audio equipment.
33. AUX IN Jack
Connect an external audio source,
such as MP3 or CD player.
34. MIC Jack
Connect a microphone.
35. DC IN Jack
Connect the DC 12V power adapter.
05
Display
HARMONY
2
6
4
8
9
12
13
14
10
3
7
11
15
16
17
1
5
ARP.
SUSTAIN
30 31 32 33 34 35
