ADVANTAGE
®
PLUS Annual Preventive
Maintenance Instructions
50097-003 Rev. A Page 2 of 12
Channel Pump
1. Performed on both sides.
2. Remove the two white John Guest elbow fittings from the pump assembly by pressing in
on the gray collar.
3. Make note of the tubing locations.
4. Disconnect the electrical connection.
5. Remove the four Philips head screws that attach the pump to the mounting bracket.
6. Remove the old pump and discard.
7. Place the new pump on the mounting bracket and reattach with the four screws.
8. Reconnect the electrical connection.
9. Reconnect the fittings making sure they are connected to the original locations.

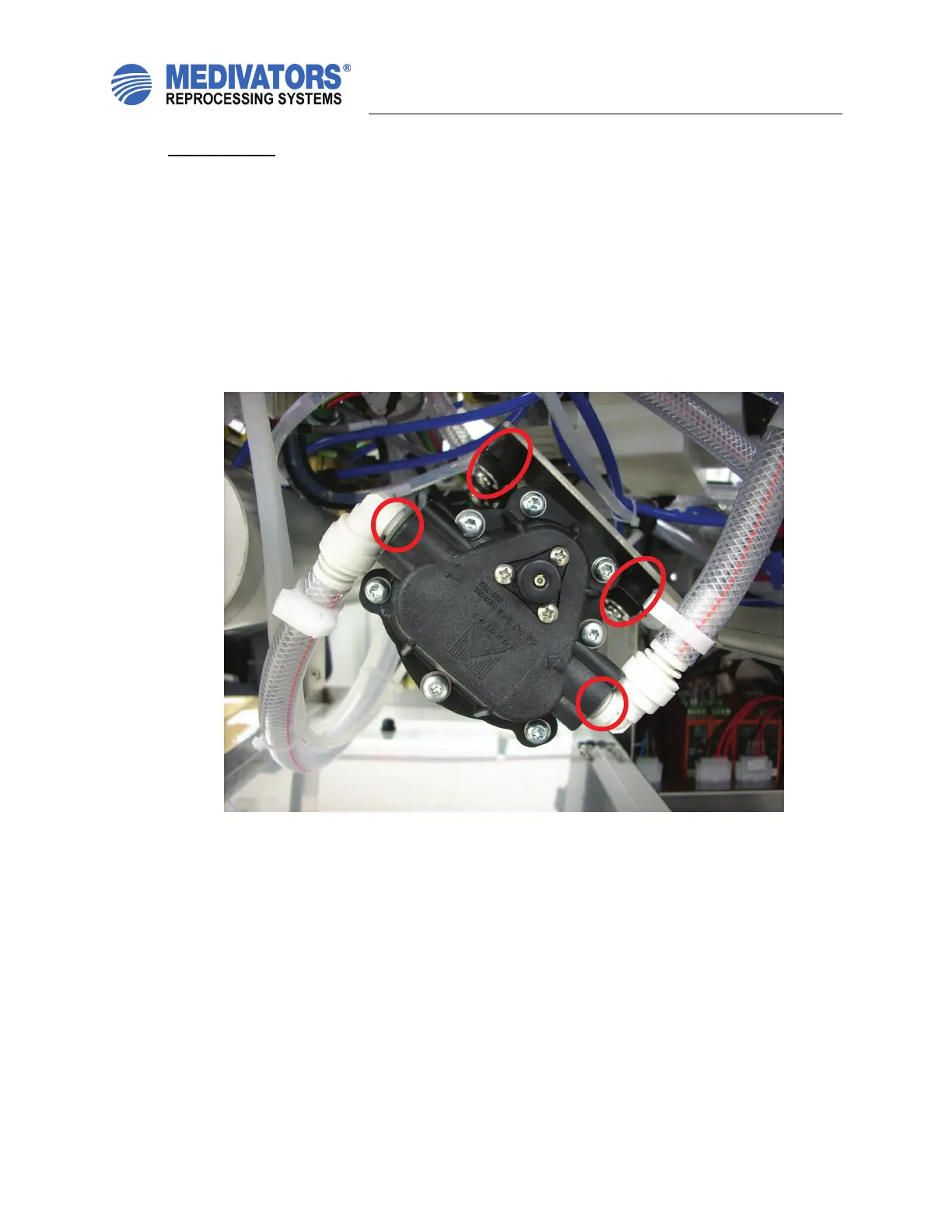

Figure 1: Channel Pump
