Medivators DSD EDGE - Disinfectant Filter Screen Replacement; Manifold Re-installation Procedure


11 
A
NNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT
Disinfectant filter screen replacement

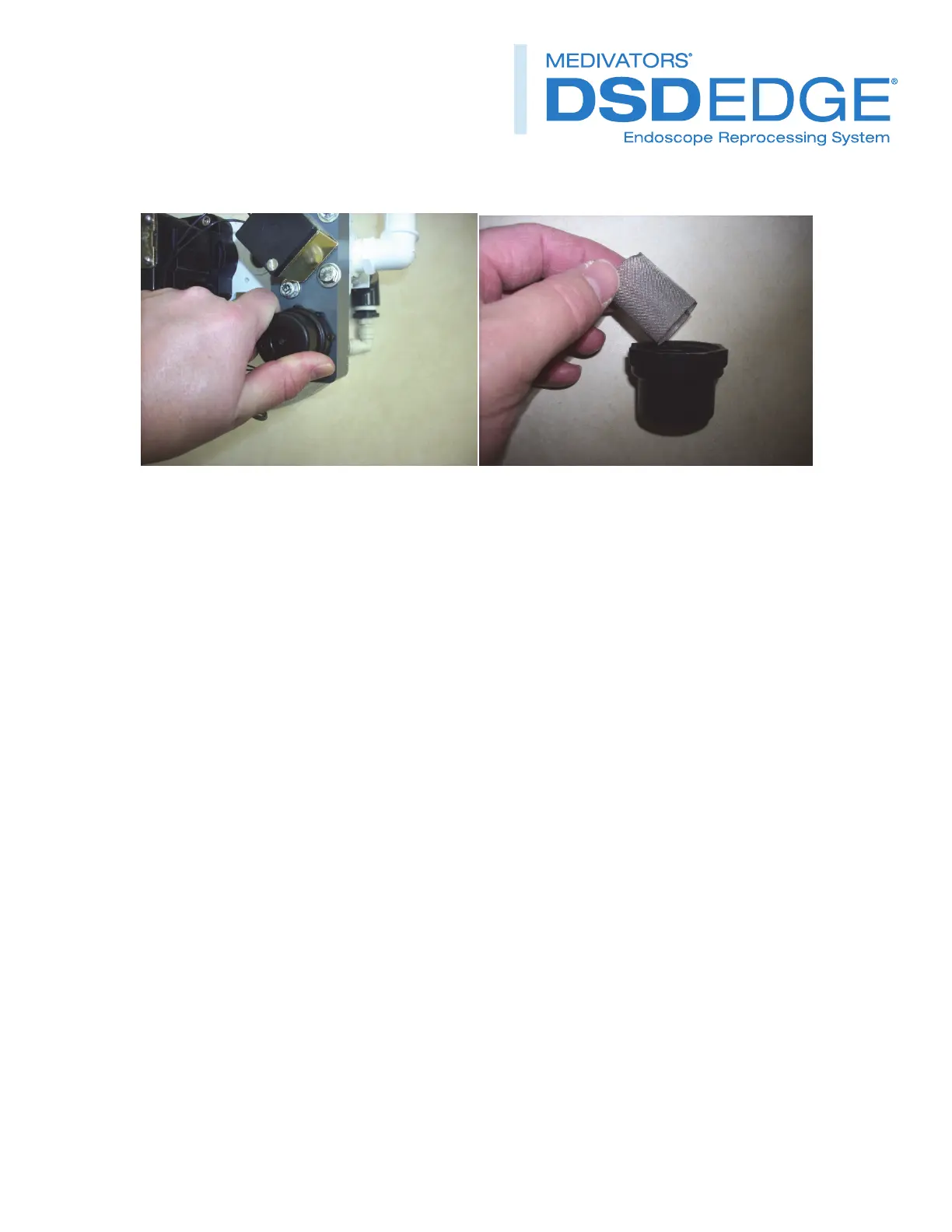

Figure 12 Figure 13
 Remove the old screen and discard. Replace with new screen (43100-254).
 Insert the new screen into the cap, making sure it fits into the groove.
 Be sure the red O-ring is still in place in the cap before reattaching.
 Screw on the cap.
Procedure for re-installation of the manifold
Tools Required
 #2 Phillips screwdriver
 9/64-inch Allen
 Silicone grease
Mechanical
 Attach the new O-ring (MO01-0004) to the manifold. This O-ring mates with the neck of the basin. Add a touch of
silicone grease to hold the O-ring into position. Refer to figure 14.
