Medivators DSD EDGE - Mechanical Steps


13 
A
NNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT
Electrical
 Follow the red level sensor cable to the sensor harness. Disconnect the sensor connector. The plugs should be
labeled, but verify before disconnecting.

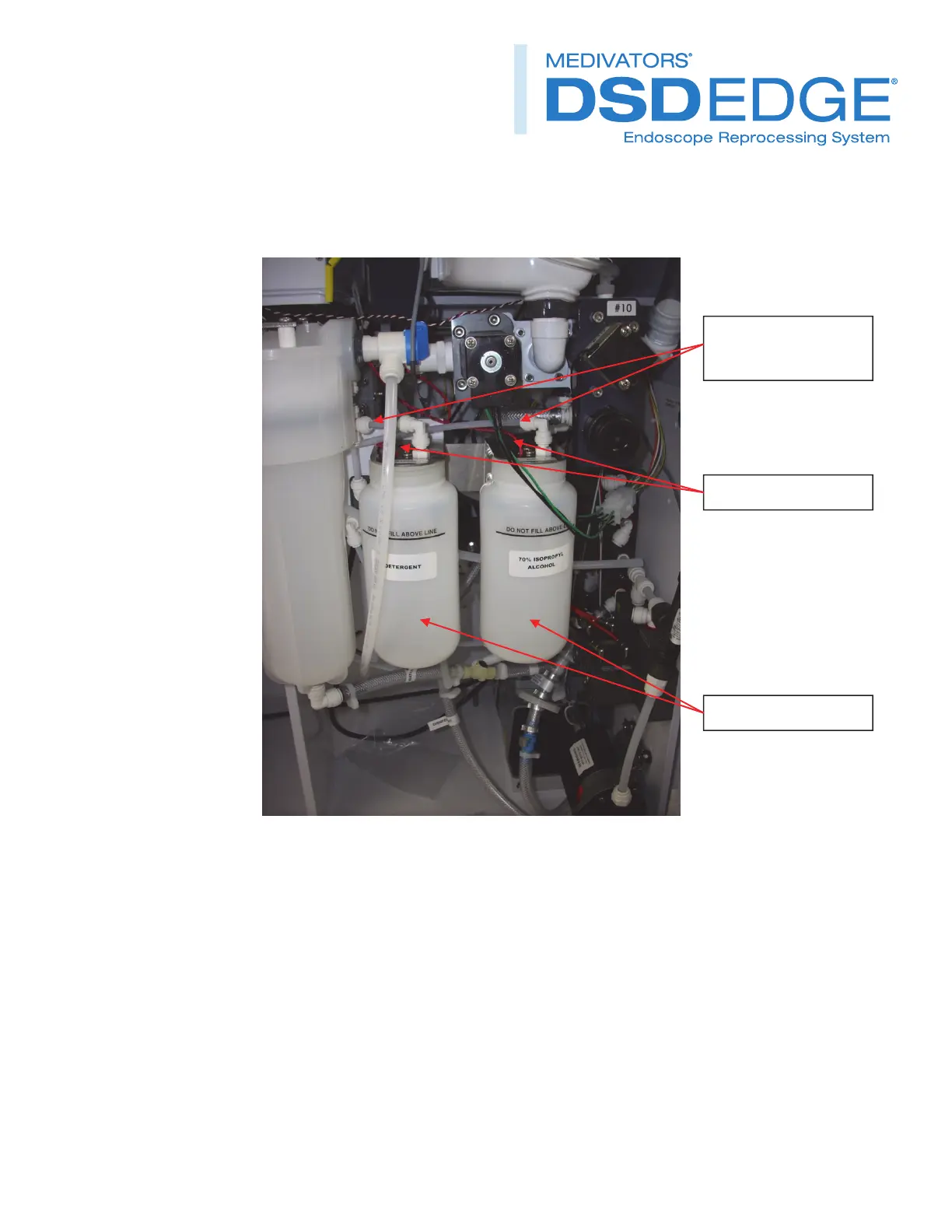

Figure 15
Mechanical
 Using a 3/8 inch Allen wrench, remove the four Detergent /Alcohol mounting bracket screws. Support the bracket
while removing the screws. Refer to figure 16.
 Set bracket aside.
Removefeedlines
fromeachbottle
Redsensorcable
Removebottles
