Medivators DSD EDGE - Page 7


7 
A
NNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT

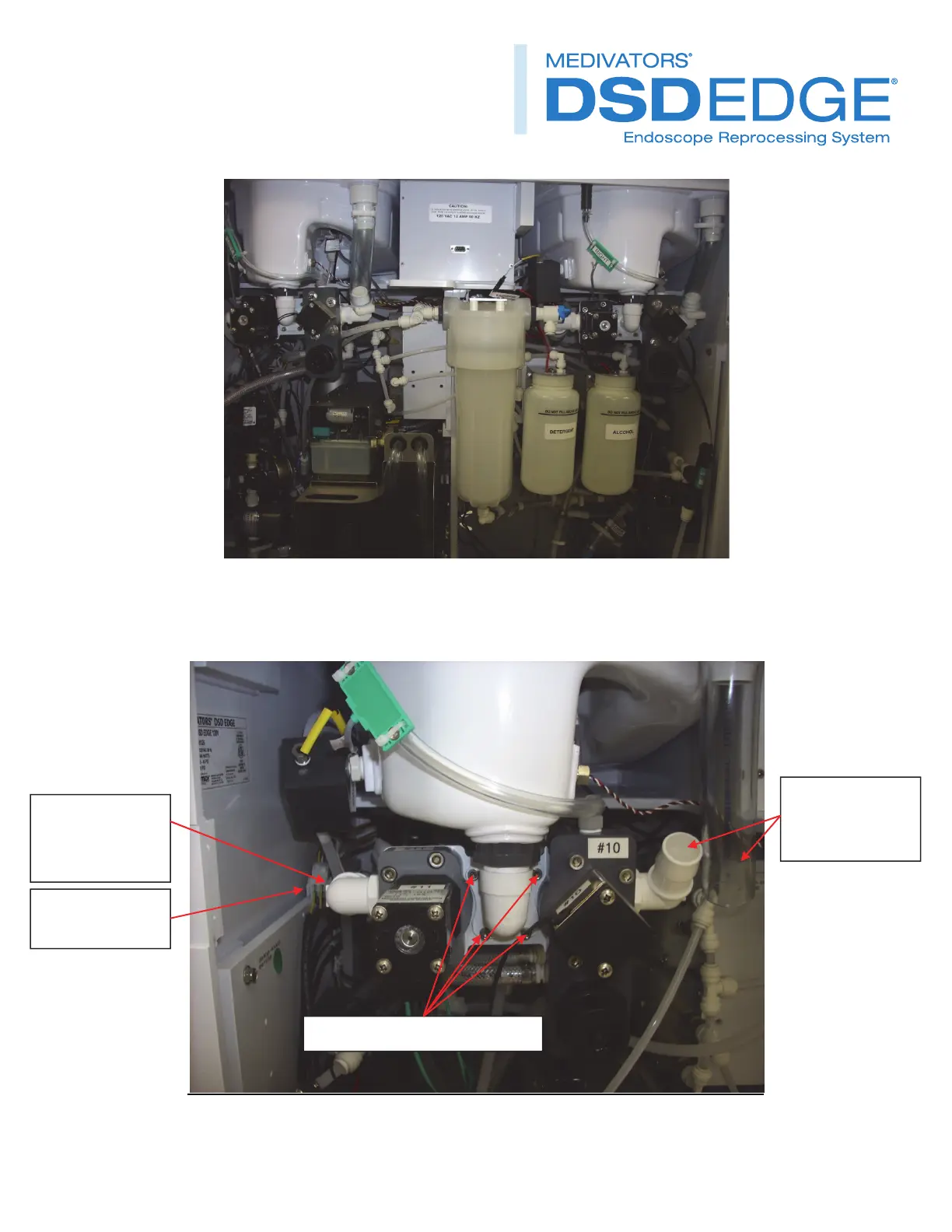

Figure 4
To rebuild the 3/4-inch drain valves, it is recommended to remove the 3/4” drain manifold from the DSD EDGE
endoscope reprocessor.
Figure 5
Remove1”hose
fromthis
elbow
Solenoid
Harness
1”drainhose
removedfrom
barbfitting
4manifoldretainingscrews
