Rear Wheel Assembly
1. Turn wheel so that it is facing outside of rollator (see Figure A).
2. Insert wheel to desired height depicted by numeric holes (see Figure B) and
use chart below for recommended height settings.
3. Insert triangular hand screw into hole on same side of wheel so that the
triangular hand screw stays outside of rollator frame (see Figure C).
4. Tighten triangular hand screw (Important: Hand Tighten Only!) until secure
(see Figure C).
5. Repeat steps 1-4 for other rear wheel.

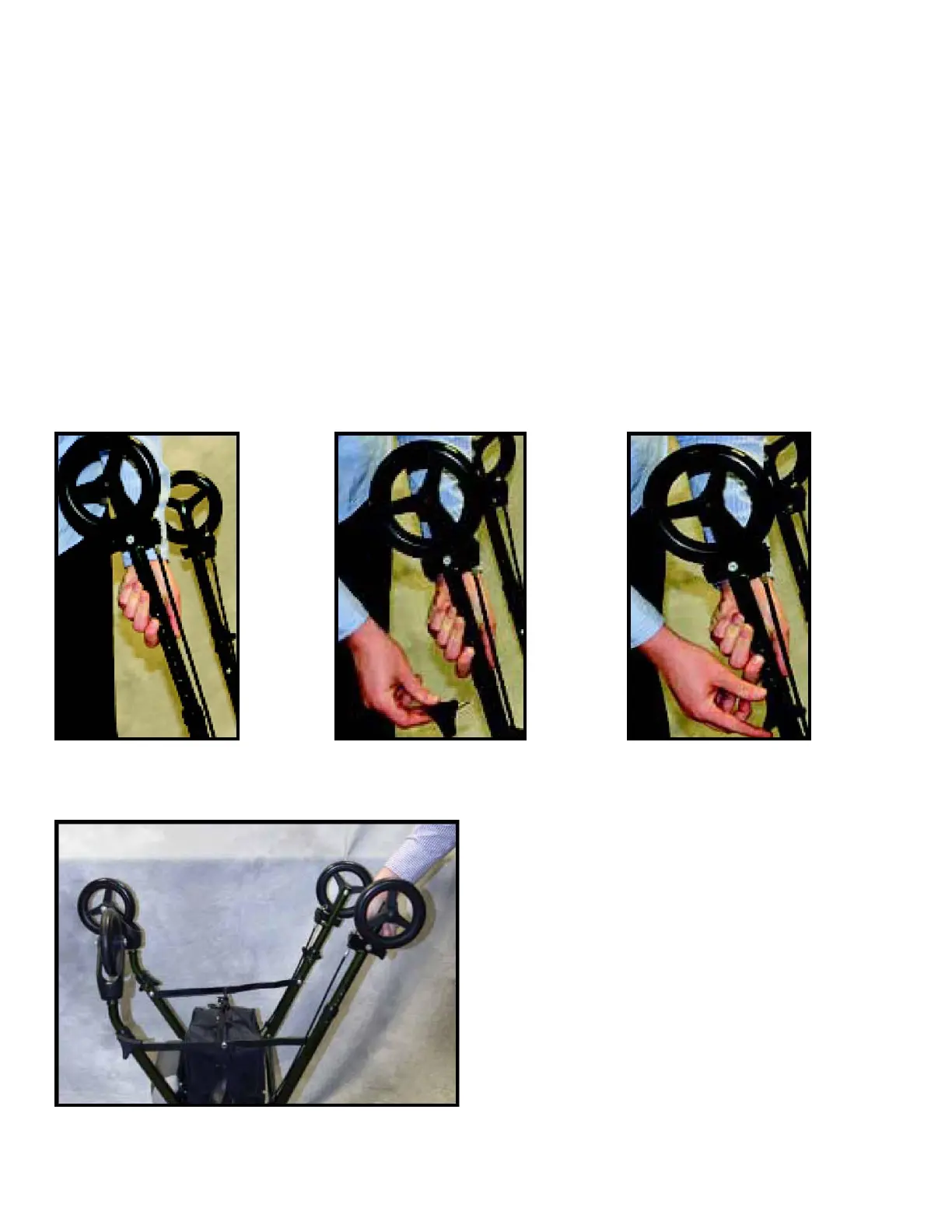

Figure A
Figure B
Figure C
Recommended Height:
Your feet should comfortably touch the
ground when you are seated on rollator.
Height Range:
Under 5’ (152 cm) Hole 1 or 2
5’1” to 5’6” (155-170cm) Hole 3 or 4
5’7” (173cm) and over Hole 5 or 6
Note: These are only recommended
heights, as each individual is built
differently.
Figure D
