MDS86845 (GPI171)
Revised (A): 09/13/2013
Rear Wheel Assembly
NOTE: The rear wheels are the ones with the brake shoes on them.



shown (Fig 2)

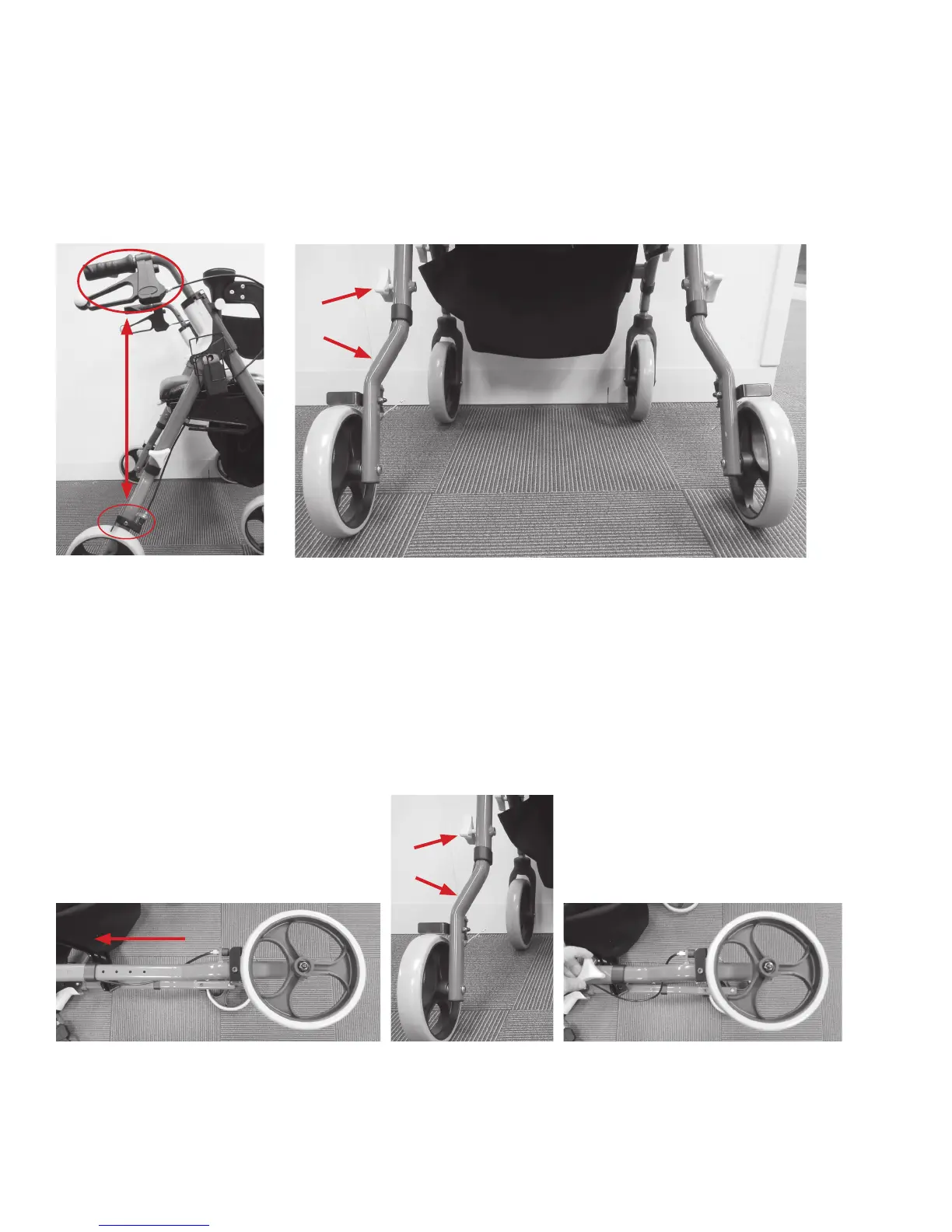

Figure 1 Figure 2
NOTE: Make sure the brake shoe and the triangle knob are to the outside.
The leg should bend away from the center of the rollator.
1.
height settings. Figure 3.
2. Insert triangular hand screw into hole on same side as the wheel is on so that
the triangular hand screw stays outside of walker frame. Figure 4.
3. Tighten triangular hand screw until secure (Hand Tighten Only!). Figure 5.
4.
Figure 3 Figure 4 Figure 5
