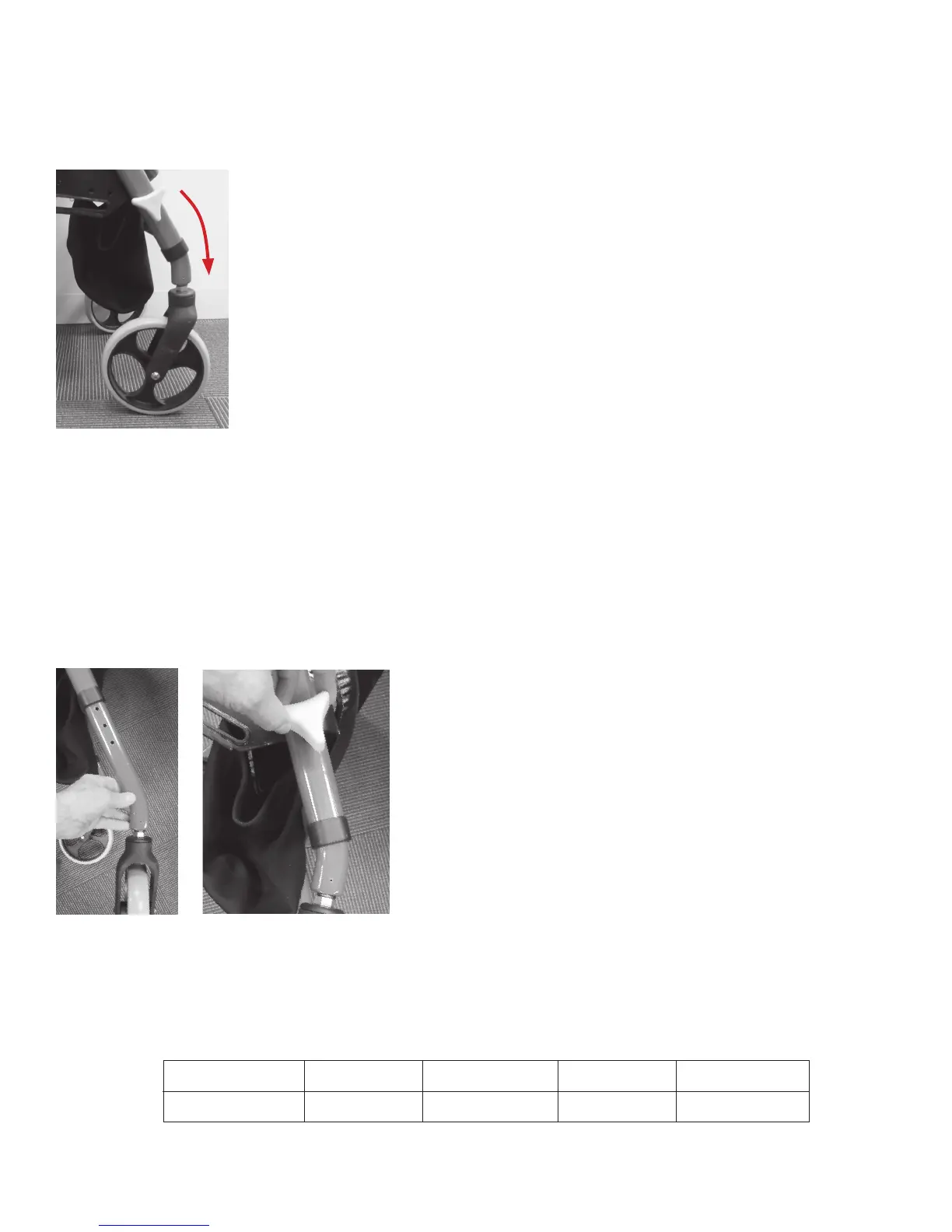

Front Wheel Assembly
NOTE: The front wheels are the ones that swivel.
Figure 6.
Figure 6
Seat Heights provided by leg adjustments (set to Dimension A above):
1. Insert wheel to desired height depicted by numbered holes (set to the same number
as rear wheels). Figure 7.
2. Place triangular hand screw into hole. Make sure triangular hand screw stays on the
outside of rollator frame. Figure 8.
3. Tighten triangular screw until secure (Important: Hand Tighten Only!). Figure 8.
4. 
Figure 7 Figure 8
Legs
     
Seat Height     
Chart 1
Note: 1 is the highest, 5 is the shortest setting.
