4. OPERATION (Type 1)
4.1 Control Panel

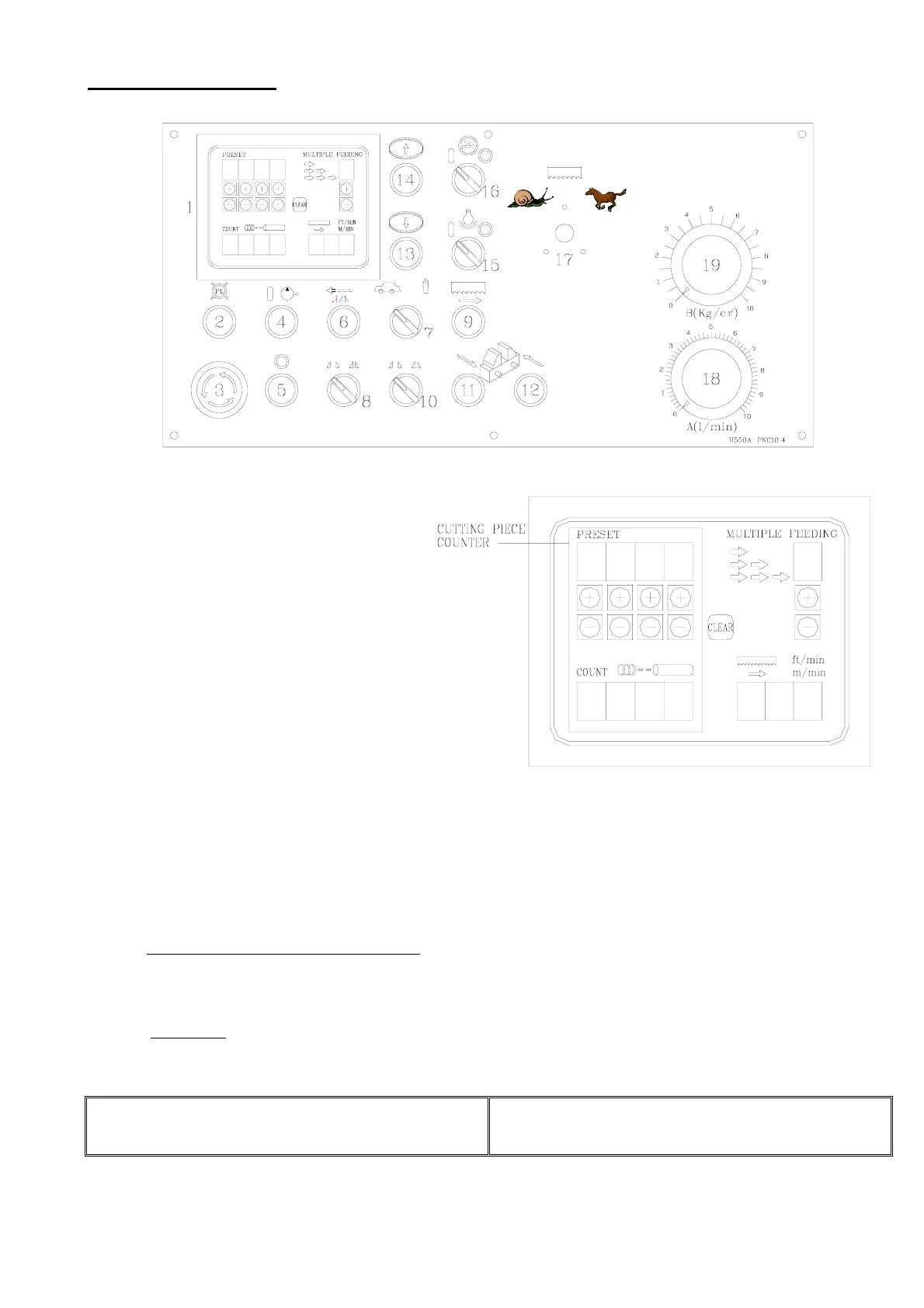

(1) PNC Control Panel
Cutting Piece Counter – This counter is
used to preset the number of cuts required
on the automatic operation. When the
counter reaches the preset number, the
machine stops automatically . To activate
the counter, preset the counter switch with
number at least “1”.
Clear – This key is used to clear the
counted number cut already and to have
new number input available.
Multiple stroke feed counter – This
counter makes it possible to multiply the number of index cycles when off-cut pieces longer than 500mm
are required. Maximum 9-time stroke can be set.
Blade speed LED-Display -- This blade speed tachometer indicates how fast the saw blade is running in
meter per minute by LED display.
To see digital cut length counter
L (length req.) + K (blade thickness)
S =
N (multiple feed times)
- K
EXAMPLE:
1200 +1.5
S =
3
-1.5 = 400.5-1.5 = 399
L = Required cut length N = Multiple feeding times
K = Cutting loss ( Blade thickness ) S = Digital counter length setting
