Mega Machine BS-250HAS - Foundation Layout and Set-up

3.2 Foundation layout and set-up :
3.2.1 Foundation :
The foundation should be constructed of reinforced concrete and must be level and flat. After
the proper leveling position has been obtained , anchor the machine with anchor bolts.

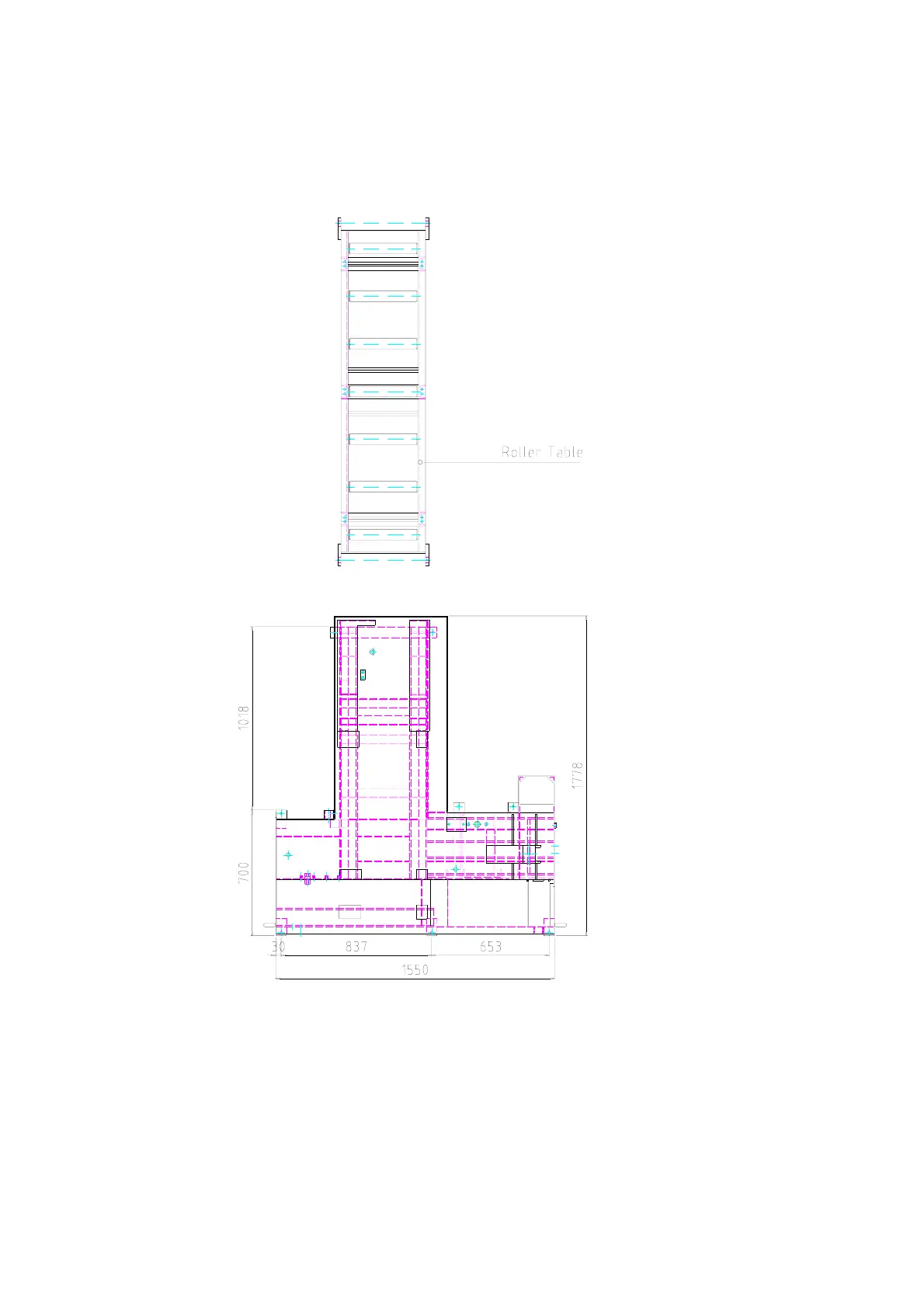

The position of anchor bolts and floor dimensions are shown in fig 4:
□ Contact portion with floor
○ Position of anchor bolts
Fig. 4
※ All leveling bolts should support the weight of the
machine evenly .
3 – 2
